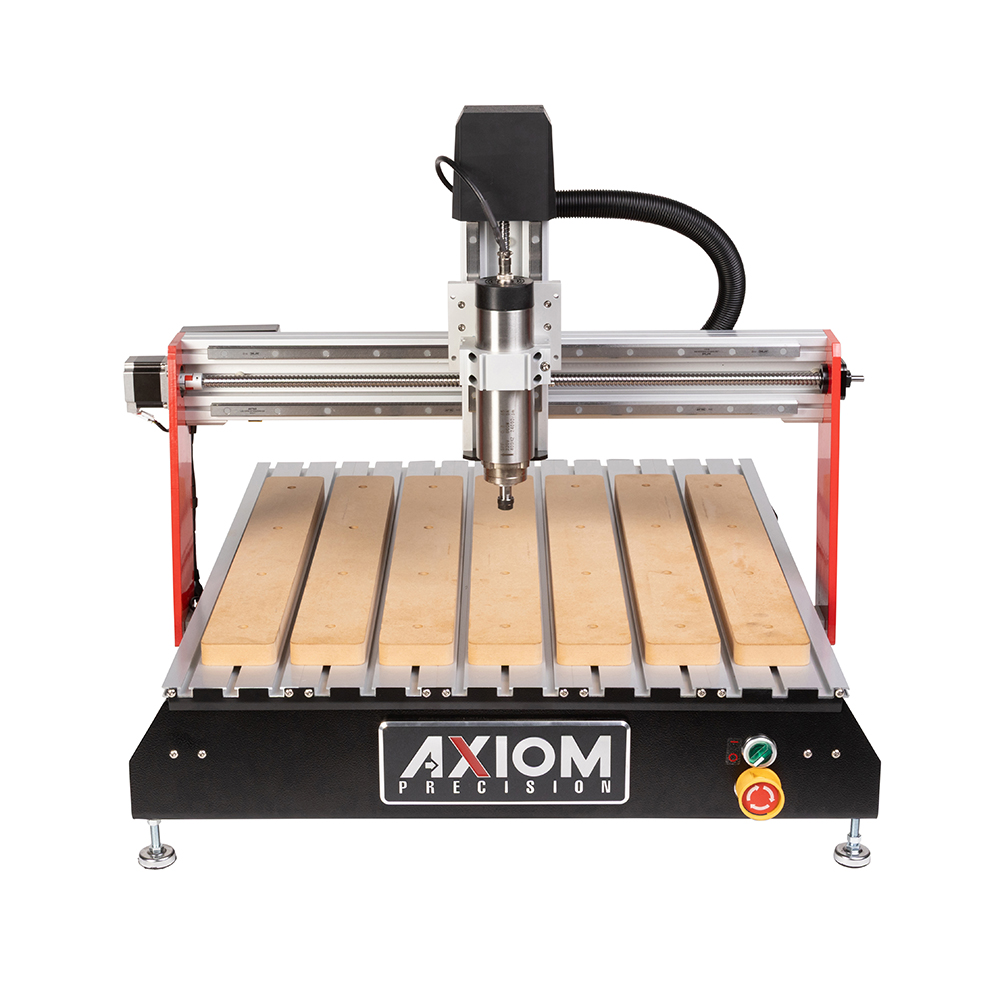

The Axiom Precision 2×2 CNC Router Model AX1-101 is a essential addition to any workshop looking for Power Tools solutions.
Over $3,000 – Premium shop systems, lathes & CNC setups
Product Description
Engineered for professionals, educators, and small shops, the Axiom 2×2 CNC Router delivers industrial-grade performance without demanding industrial space. With superior accuracy, repeatability, and speed, this compact powerhouse is built to elevate your craft. Whether you’re scaling up production, inspiring future makers, or diving into CNC for the first time, the Axiom 2×2 delivers the precision, power, and reliability you need—without compromise.
Features: 24″ x 24″ cutting area with 5.5″ Z-axis travel ±0.007″ accuracy with precision ball screws on all axes Rigid all-metal frame and extruded aluminum gantry 1-HP air-cooled spindle with speeds up to 24,000 RPM Prismatic linear guides for smooth, repeatable motion Includes UCCNC software and Vectric VCarve Desktop software (Windows Compatible) Backed by Axiom’s expert U.S.-based support and service team
Specifications: Assembled Dimensions: 31.5″ x 36″ x 31.5″ Cutterhead Speed: Up to 24000 rpm Motor: 1 HP, 5A Input Power: 115V Single Phase Motor Voltage: 220V Collet: 1/8″ and 1/4″ Spindle Taper: ER11 Table Length: 24″ Table Width: 24″ X-Axis Travel: 24″ Y-Axis Travel: 24″ Z-Axis Travel: 5.5″
What’s Included: 2×2 CNC Router Model AX1-101 Access Accessories Kit (open wrench, chuck, puck, pads, power cord, etc) Spindle Leveling Pad (set of 4) 7 Board Set (5) 80mm boards, (2) 65mm boards Amana ER11 Spring Collet 1/4 Amana ER11 Spring Collet 1/8 RJ45 Ethernet cable
Product Dimensions:
Length: 37.00 IN X Width: 39.70 IN X Height: 21.00 IN Weight: 194.0000 LB
Note: We do not display prices to ensure you always see the most current Woodcraft pricing upon click.
