Product Description

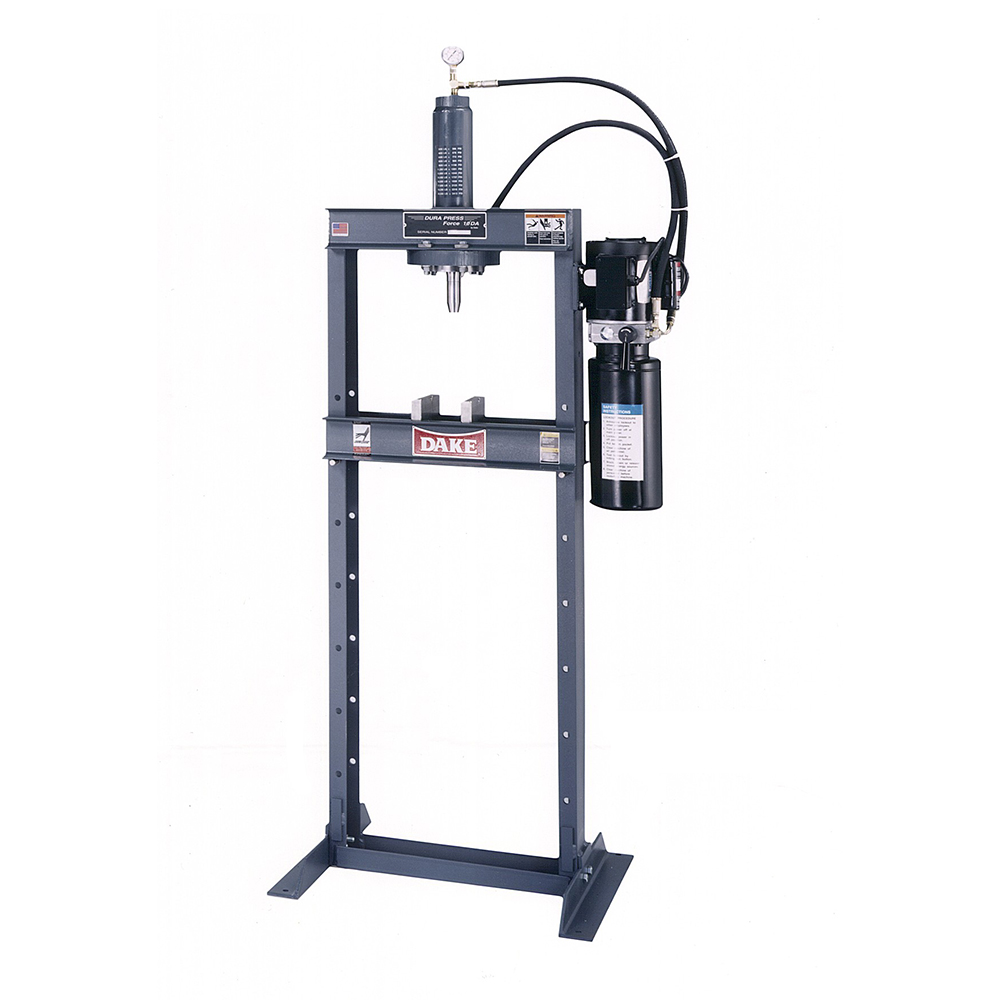

10 ton electrically operated hydraulic dura-press powered by a 110V motor. Table height adjusts for proper positioning. The three-point lever provides single-handed control over ram movement. A double-acting cylinder moves the ram during the downstroke and the return, providing smooth movement in both directions and enabling precise positioning.
Features: Electric power unit has convenient single phase, 110 volt operation for greater portabilityLever control ram advance for easy operationDouble acting cylinder allows for convenient positioning of ramSturdy, welded channel iron frame for durabilityQuiet, low pressure hydraulic components for greater efficiency and smooth pressingOne hand ram positioning with 4-way valve hydraulic control
Specifications: Capacity: 10 tonsOperation: ElectricHorsepower: 1Voltage: 110V, Single PhaseWidth Between Uprights: 20”Width Between Table Channels: 4”Minimum Ram to Table: 4”Maximum Ram to Table: 40”Ram travel: 10″Screw Travel: n/aHorizontal Workhead Travel: FixedFootprint: 29-3/4” x 24″Height: 80″Weight: 300 lbsBase: 29-3/4” x 24″Ram Advance Speed: n/aPressing Speed: 20 ipmRPM: 3,450Air Pressure: n/a
What’s Included: FrameSafety Relief Valve2 Combination Table Plate/V-BlocksPressure Gauge
For current pricing, click “Get Details”
