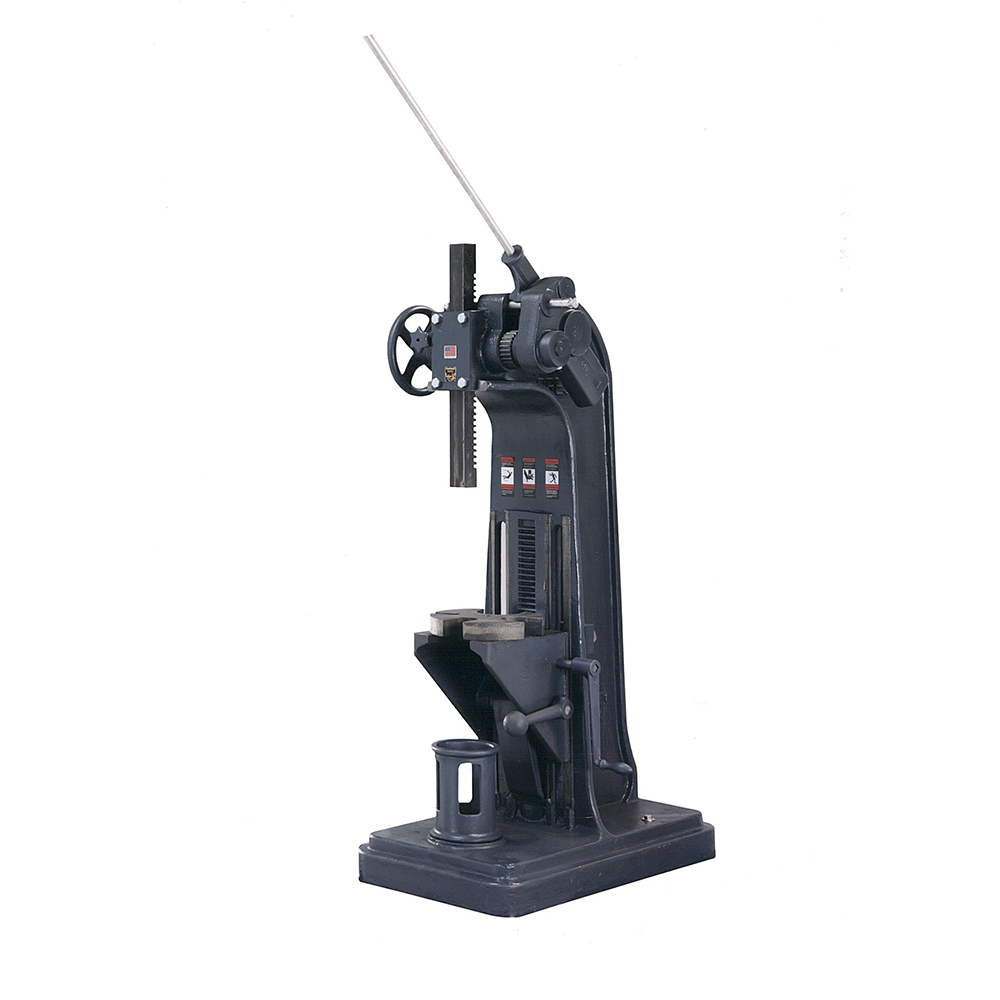

The Dake 12-Ton Compound Leverage Press- Floor Model is a essential addition to any workshop looking for Power Tools solutions.
Over $3,000 – Premium shop systems, lathes & CNC setups
Product Description
This 12 ton compound leverage arbor press is designed for floor use. It features a cast iron frame that is machined for maximum stability and incorporates a reinforced spine design which adds rigidity to the press body. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.Features:Compound leverage mechanism allows greater pressure application with minimum effortRack and pinion table adjustmentSliding pin easily converts press from compound to single leverageSpecifications:Capacity: 12 tonsLeverage Ratio: 112:01:00Ram Size: 2” x 2” x 24”Maximum Diameter Work 20”Throat: 10”Largest Arbor: 5-¼”Maximum Ram to Table: 26”Minimum Ram to Table: 24-½”Capacity Over Table: n/aCapacity Over Table Plate: n/aBase Length: 37”Base Width: 21-½”Height: 62”Weight: 1,350 lbs
What’s Included: Cast Iron BaseHandwheelRamNotched Table PlateCounter weight
Product Dimensions:
Length: 38.00 IN X Width: 38.00 IN X Height: 72.00 IN Weight: 1344.0000 LB
Note: We do not display prices to ensure you always see the most current Woodcraft pricing upon click.
