Product Description

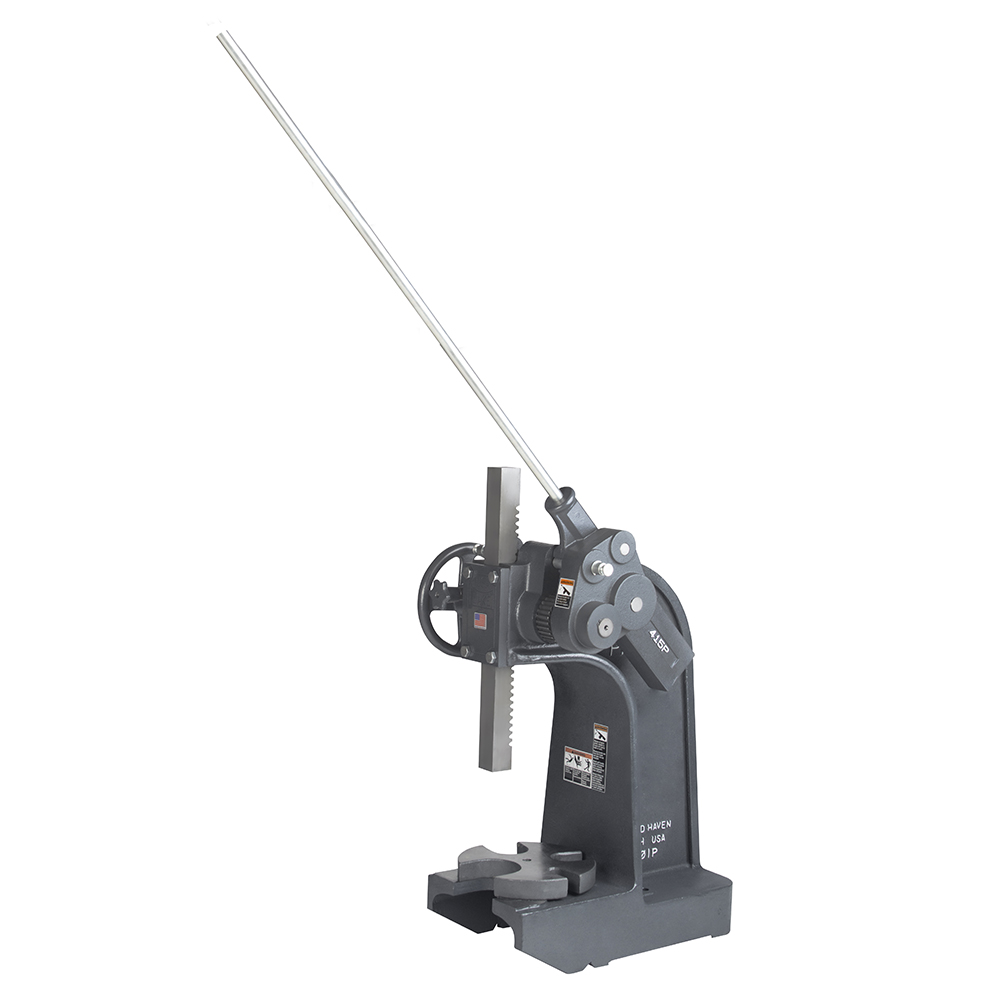

This 12 ton compound leverage arbor press features a cast iron frame and incorporates a reinforced spine design which adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.
Features: Compound leverage mechanism allows greater pressure application with minimum effortSliding pin easily converts press from compound to single leverage
Specifications: Capacity: 12 tonsLeverage Ratio: 112:01:00Ram Size: 2” x 2” x 24”Maximum Diameter Work: 20”Throat: 10”Largest Arbor: 5-¼”Maximum Ram to Table: 19”Minimum Ram to Table: 17-¼”Capacity Over Table: n/aCapacity Over Table Plate: n/aBase Length: 25-½”Base Width: 13”Height: 35-½”Weight: 640 lbs
What’s Included: Cast Iron BaseHandwheelRamNotched Table PlateCounter weight
