Product Description

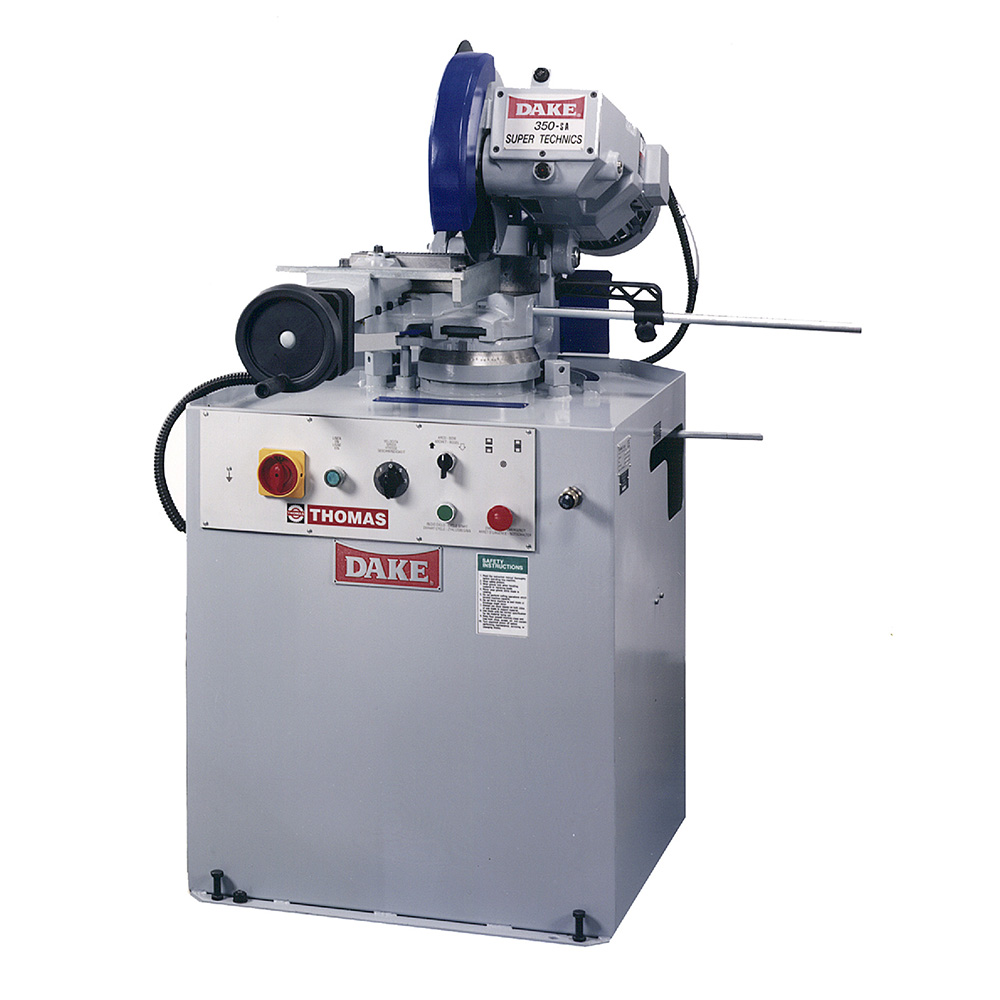

Semi-automatic cold saw that has a push-button or foot switch activation, an oversized pedestal base, shroud enclosed head feed cylinder, adjustable pneumatic vise. Variable speed controlled by a frequency inverter increases the material cutting range.
Features: Push button or foot-switch activation to avoid operator fatigueShroud enclosed head feed cylinder with sliding cams for fast cutting stroke adjustmentAdditional ball bearing support of hardened and ground spindle shaft to prevent failureAdjustable pneumatic vise with sliding gib to true up clamping under blade with 1/4 strokeOversized pedestal base to reduce vibrationHead rotates 45º right and 60º left of center for easy miter cuttingRemovable hardened, serrated vise jaw facesAbility to add a programmable feed system to make fully automatic with wide range of capabilities
Specifications: Voltage: 220VHorsepower: 3.5 maxCutting Ability: Ferrous/Non-Ferrous/PlasticMaximum Blade Diameter: 14”Maximum Vise Opening: 6-5/8″Maximum Feed Vise Opening: n/aMaximum Angle: 60° left/ 45° rightSlotting: NoPhase: 3Speeds: 20-105 rpmWeight: 890 lbsSolid Round 90˚ Capacity: 3-3/8”Solid Round 45˚ Capacity: 3”Tube 90˚ Capacity: 4-3/4″Tube 45˚ Capacity: 4”Square 90˚ Capacity: 4-1/8”Square 45˚ Capacity: 3-3/8”Rectangle 90˚ Capacity: 6-1/4” x 3-1/2”Rectangle 45˚ Capacity: 3-3/8” x 2-3/4”Work Height: 36-3/4”Height: 60”Width: 33”Depth: 50”440V model requires step-down transformer for operation (part number: 300674) Sold Separately
What’s Included: BladeCoolantTools kit for changing bladesInstruction and service manualAdjustable positive stop
