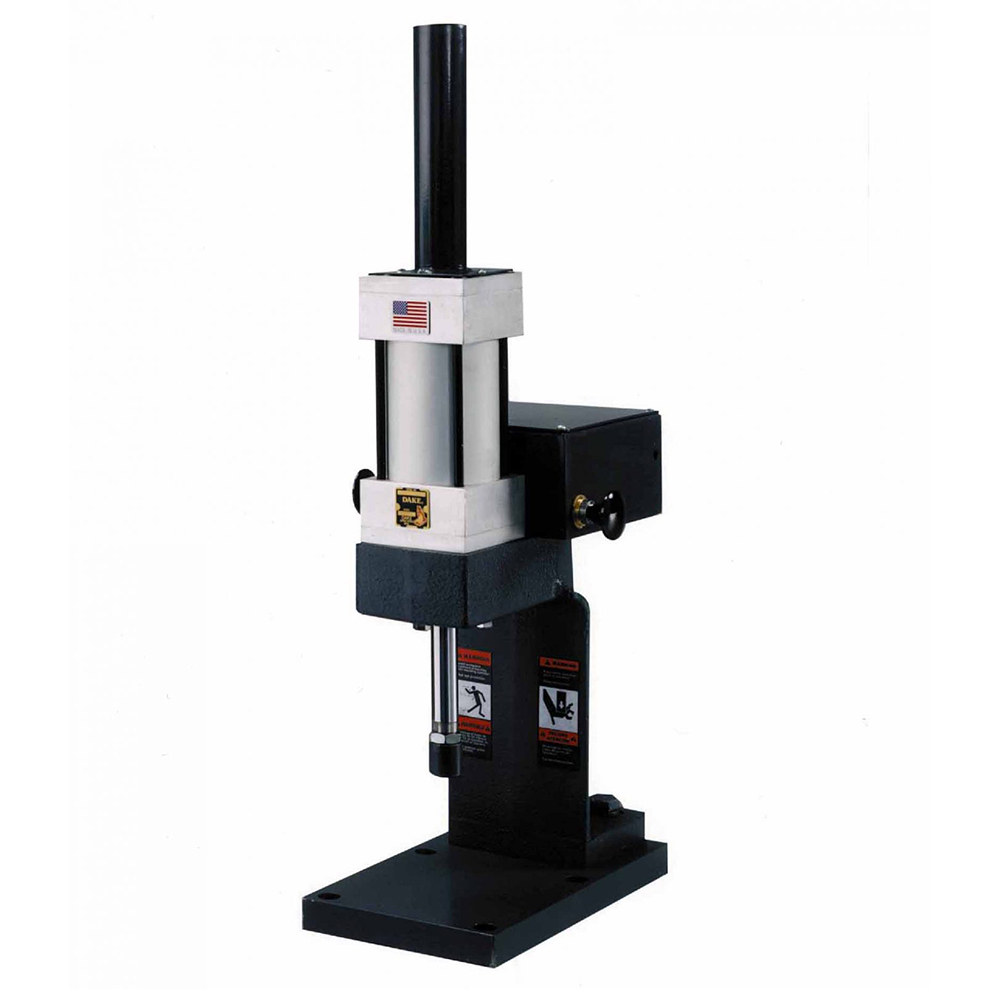

The Dake 2,000 Pound Capacity Air Operated Bench Press is a essential addition to any workshop looking for Power Tools solutions.
Over $3,000 – Premium shop systems, lathes & CNC setups
Product Description
The 1-220 model air arbor press delivers 2,000 lbs of pressing capacity and has a 4 inch ram travel.Features:Non-rotating double acting ram eliminates guide pins on most toolingThreaded rod end permits nose piece and tooling to be easily attached and detachedDual-palm push buttons must be engaged before the ram will move and cannot be mechanically by-passedAir filter/regulator combination assembly ensures clean and continuous air flow to pressChrome-plated piston rod resists rust and ensures long lifeEasily adjusted ram speed, pressure, and stroke allow accurate control of ram movementPolyurethane rod wiper protects cylinders from dust and contaminantsDaylight can be increased with easeSpecifications:Capacity: 2,000 lbsAir Pressure: 100 psiRam Travel: 4″Weight: 195 lbsThread: 3/4/16Length of Thread: 1/1/08Daylight Without Nose Piece: 8/11/16Daylight With Nose Piece: 8Nose Piece Diameter: 1-1/4″Throat: 5″Work Area: 9″ x 8″Plate Thickness: 1-1/2″Base: 15-3/4″ x 8″Hole Pattern: 7-1/4″ x 3-1/4″Overall Height: 35″
What’s Included: Cast Iron FrameAir CylinderDouble-acting RamChrome-plated Piston RodsAir Filter/Regulator Combination
Product Dimensions:
Length: 38.00 IN X Width: 38.00 IN X Height: 44.00 IN Weight: 188.0000 LB
Note: We do not display prices to ensure you always see the most current Woodcraft pricing upon click.
