Product Description

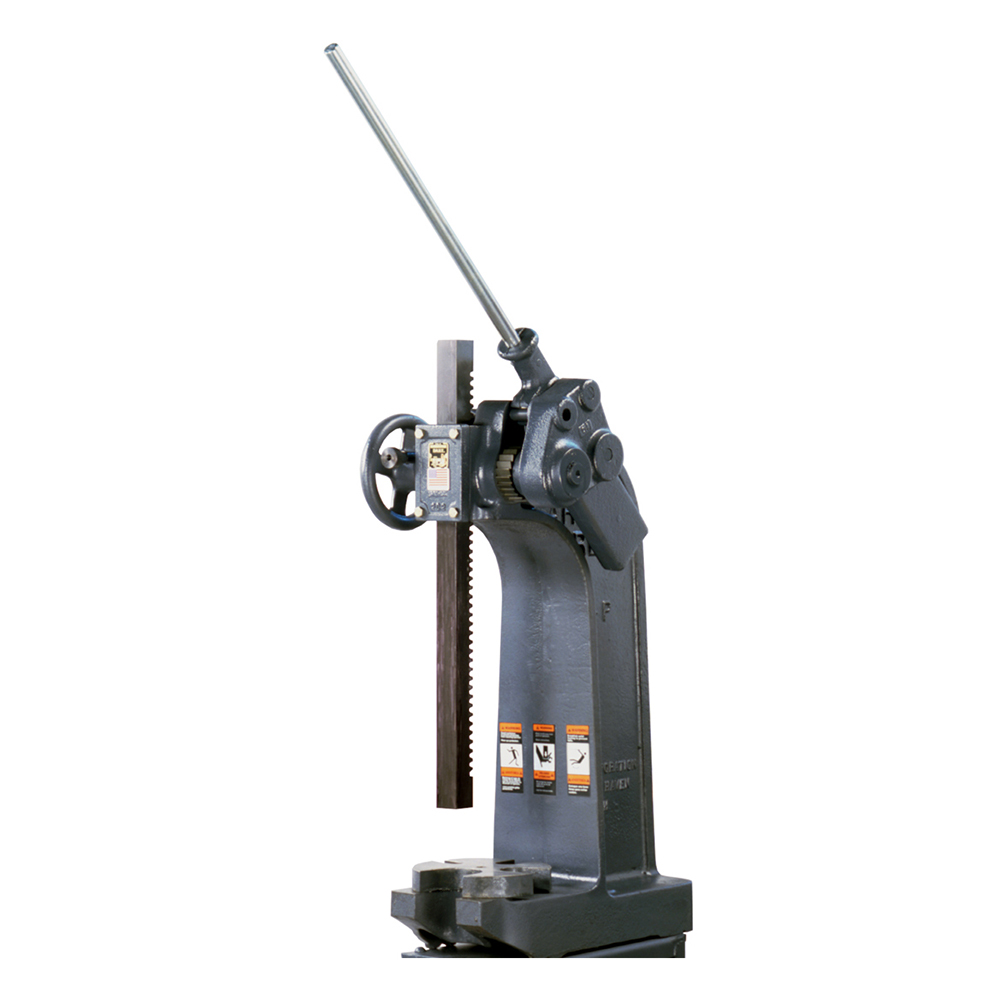

This 6 ton compound leverage arbor press features a 21 ½ ” max ram to table height. A reinforced spine design adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.Features:Compound leverage mechanism allows greater pressure application with minimum effortSliding pin easily converts press from compound to single leverageSpecifications:Capacity: 6 tonsLeverage Ratio: 66:01:00Ram Size: 1-½” x 1-½” x 27”Maximum Diameter Work: 15-½”Throat: 7-¾”Largest Arbor: 3”Maximum Ram to Table: 21-½”Minimum Ram to Table: 20-¼”Capacity Over Table: n/aCapacity Over Table Plate: n/aBase Length: 20”Base Width: 8-¼”Height: 32-½”Weight: 315 lbs
What’s Included: Cast Iron BaseHandwheelRamNotched Table PlateCounter weight
Product Dimensions:
Length: 32.00 IN X Width: 32.00 IN X Height: 43.00 IN Weight: 304.0000 LB
