Product Description

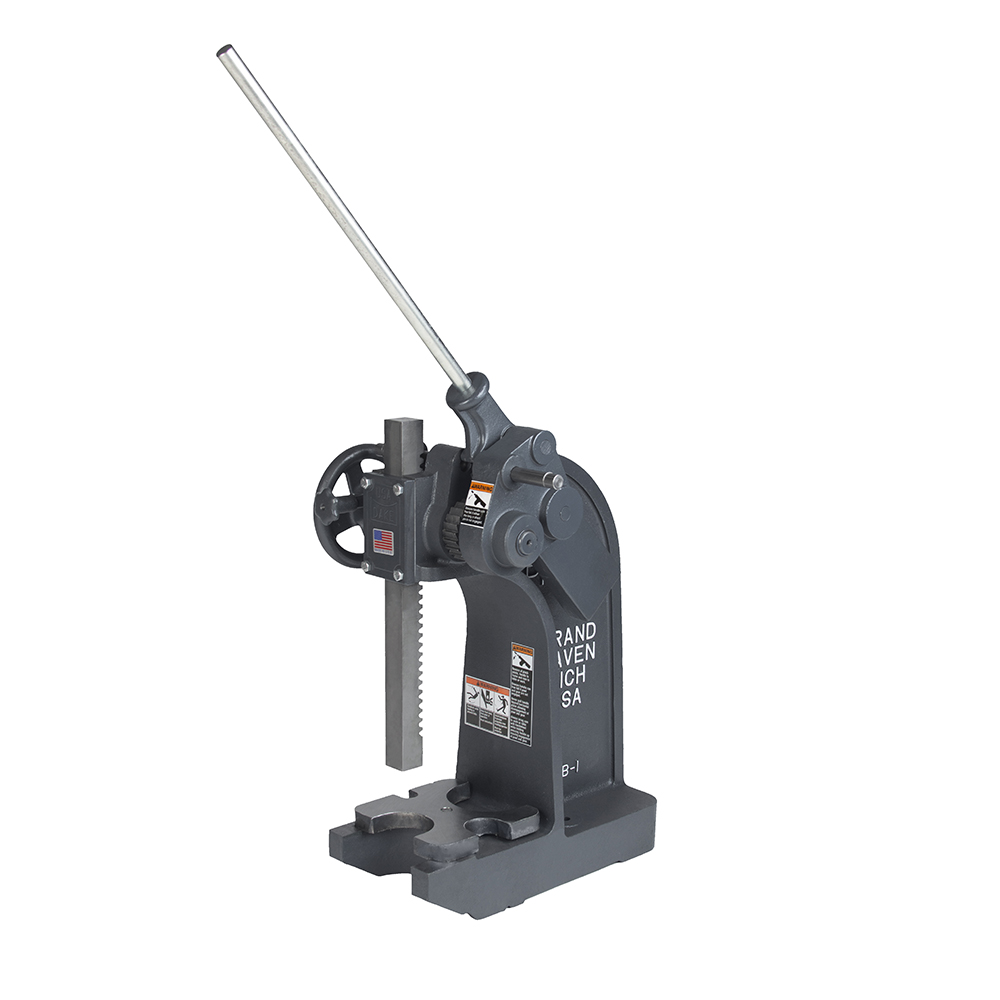

This 6 ton compound leverage arbor press features a 5.5” maximum arbor. A reinforced spine design adds rigidity to the press body. The frame is machined for maximum stability and drilled to permit bench or pedestal mounting. A sliding pin easily converts the press from compound to single leverage. Table and slotted table plate are flat and parallel to provide accurate support.
Features: Compound leverage mechanism allows greater pressure application with minimum effortSliding pin easily converts press from compound to single leverage
Specifications: Capacity: 6 tonsLeverage Ratio: 66:01:00Ram Size: 1-½” x 1-½” x 19”Maximum Diameter Work: 15-½”Throat: 7-¾”Largest Arbor: 5.5”Maximum Ram to Table: 15”Minimum Ram to Table: 14”Capacity Over Table: n/aCapacity Over Table Plate: n/aBase Length: 20”Base Width: 8-¼”Height: 26”Weight: 280 lbs
What’s Included: Cast Iron BaseHandwheelRamNotched Table PlateCounter weight
