Product Description

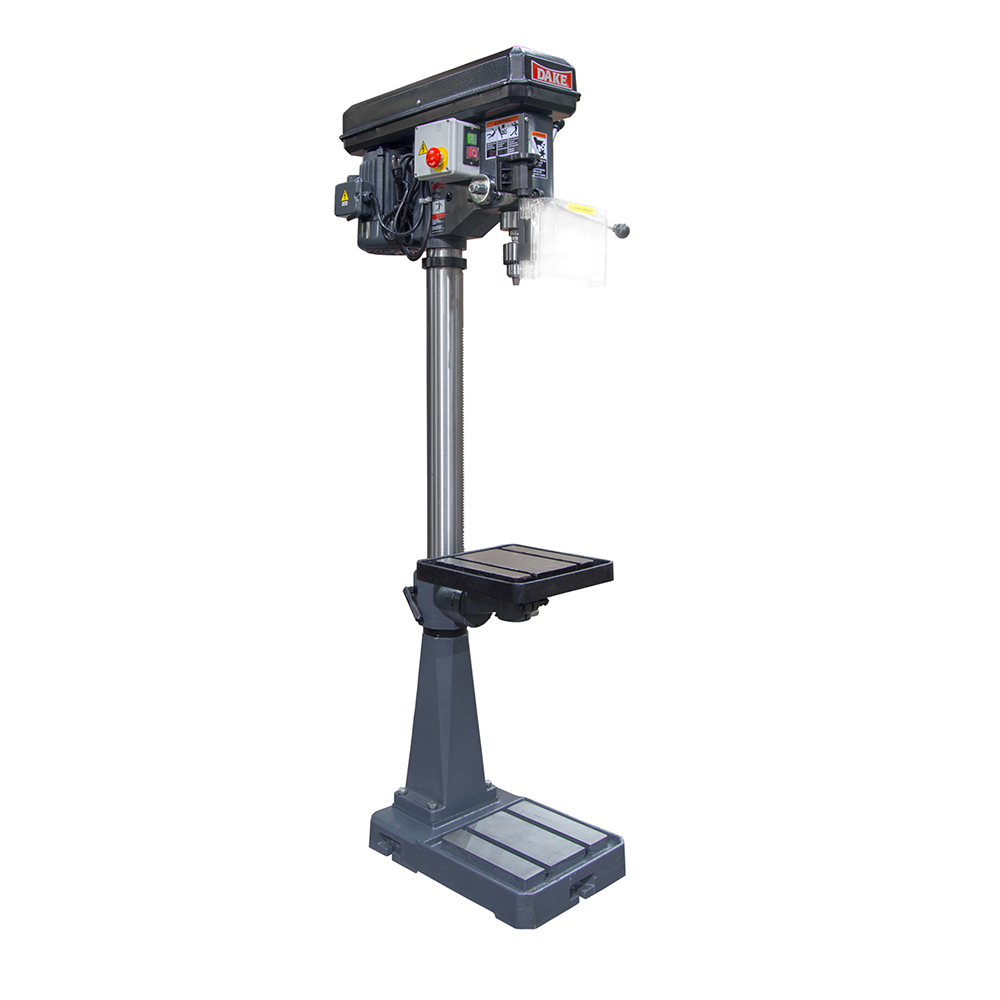

Floor model drill press with 1″ drill capacity. Featuring a locking handle hub, CE safety electrical packages, a large diameter sturdy spindle, and massive cast head. Capable of quick bit changes and quick belt tension release for easy speed changes.
Features: A locking handle hub with convenient dial-in adjustment and an easy to read scale for fast, accurate, and repeatable depth setting changesLarge diameter sturdy spindle for rigid drilling has four bearing points for smooth operationMachined table and base surfaces with t-slots for mounting and fixturingForward and reverse selector switch for tapping applicationsElectrical package features on/off switch, emergency stop button, and interlock safety switch for belt coverMassive cast head, machined column, and sturdy cast base reduces vibrationLatest frequency inverter technology for easy speed changes and concentrated torqueHandle has 3 spokes with spring return for precise operator control and ergonomic operation
Specifications: Drill Capacity: 1”Horsepower: 2Motor: 110V, Single PhaseSpindle Taper: MT3Working Diameter: 18”Number of Speeds: 9Spindle Speed Range: 270-2,000 rpmElectrics: CE 220/440-voltWeight: 397 lbsSpindle Travel: 5”Column Diameter: 3-5/8”Table Depth: 13-3/4”Table Width: 13-3/4”Base Depth: 23-5/8”Base Width: 15”Spindle to Table: 28-3/8”Spindle to Base: 50”Overall Height: 71”440V model requires step-down transformer for operation (part number: 300674) – Sold Separately
What’s Included: 5/8” Keyed chuckDrift for bit removalPlexiglas chip and chuck guard
For current pricing, click “Get Details”
