Product Description

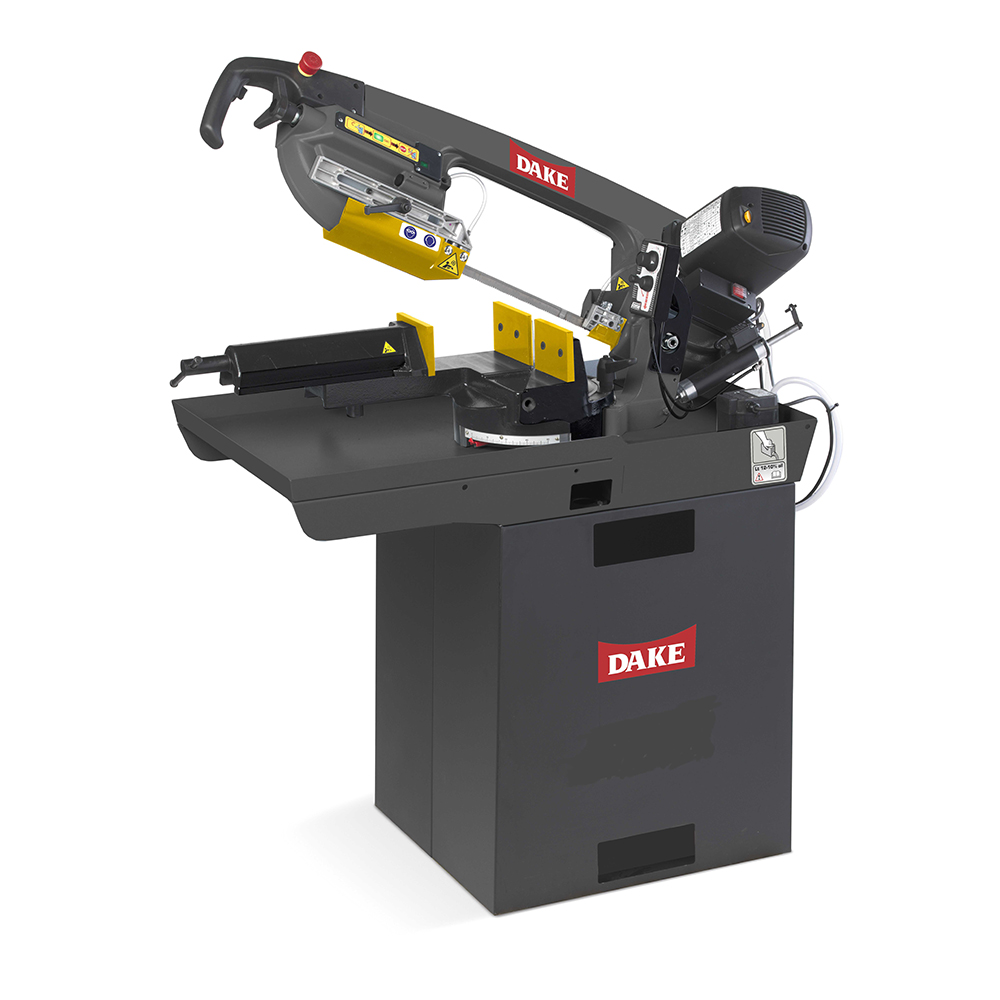

Mitering bandsaw with dual operating modes and hydraulic controlled down feed. 2.5HP, 120V motor with up to 60°right mitering capabilities. Ergonomic design for operator’s comfort and control. Variable speed with rotary adjusting wheel and “Constant speed control” Maintains constant speed to prevent bog downs when cutting.
Features: Hydraulic controlled down feed with manual returnAutomatic shut off at the end of the cutDual operating modes, manual cutting or head feed cuttingPowerful, manual clamping vise, with quick release lever for rapid vise opening and closing action for fast material size change over. The vise clamps material firmly.Ergonomic designed for operator’s comfort and controlMotor gearbox combination bolted to the bow for less vibrationVariable speed with rotary adjusting wheel and “Constant speed control” Maintains constant speed to prevent bog downs when cuttingCE Certified electronics. Low voltage switches. Thermo over load protection, low voltage protection with low voltage trigger motor start switchBlade tensioning is done via. “Go No Go” tensioning system with LED taking the guess work out of tensioning. Saw will not run if blade tension is not correctMiters up to 60° right. Mitering pre-sets with slide stops makes set up fast and has precise with miter scale for all angles in between. The head turns-the material doesn’tHorizontally mounted guide arms for more rigidity and straightest cuts. Guides are rollers with carbide inserts that are fully adjustable and replaceableElectric coolant pump and self-contained coolant system120 volt means you can use it most anywhereSteel fabricated base, and stock stop gauge, one Bi-metal blade
Specifications: Capacity: 6.5″ RoundHorsepower: 2.5Voltage: 120 VMaximum Blade Speed: VariableBlade Width: 3/4″Blade Length: 84 1/4″Blade Speed: 114-262 FPMSolid Round 90˚ Capacity: 6.5″Solid Round 45˚ Right Capacity: 4 1/4″Solid Round 60˚ Right Capacity: 3″Solid Square 90˚ Capacity: 6 3/4″Solid Square 45˚ Right Capacity: 4 1/2″Solid Square 60˚ Right Capacity: 3″Solid Rectangle 90˚ Capacity: 7 3/4 x 3″Solid Rectangle 45˚ Right Capacity: 6 x 4 1/4″Solid Rectangle 60˚ Right Capacity: 4 x 2 3/4″Worktable Height: 37″Height: 65″Floor Space: 35 x 48″Floor Space Left to Right: 35 x 48″Floor Space Front to Back: 35 x 48″
What’s Included: Steel baseQuick release vice120V Motor
