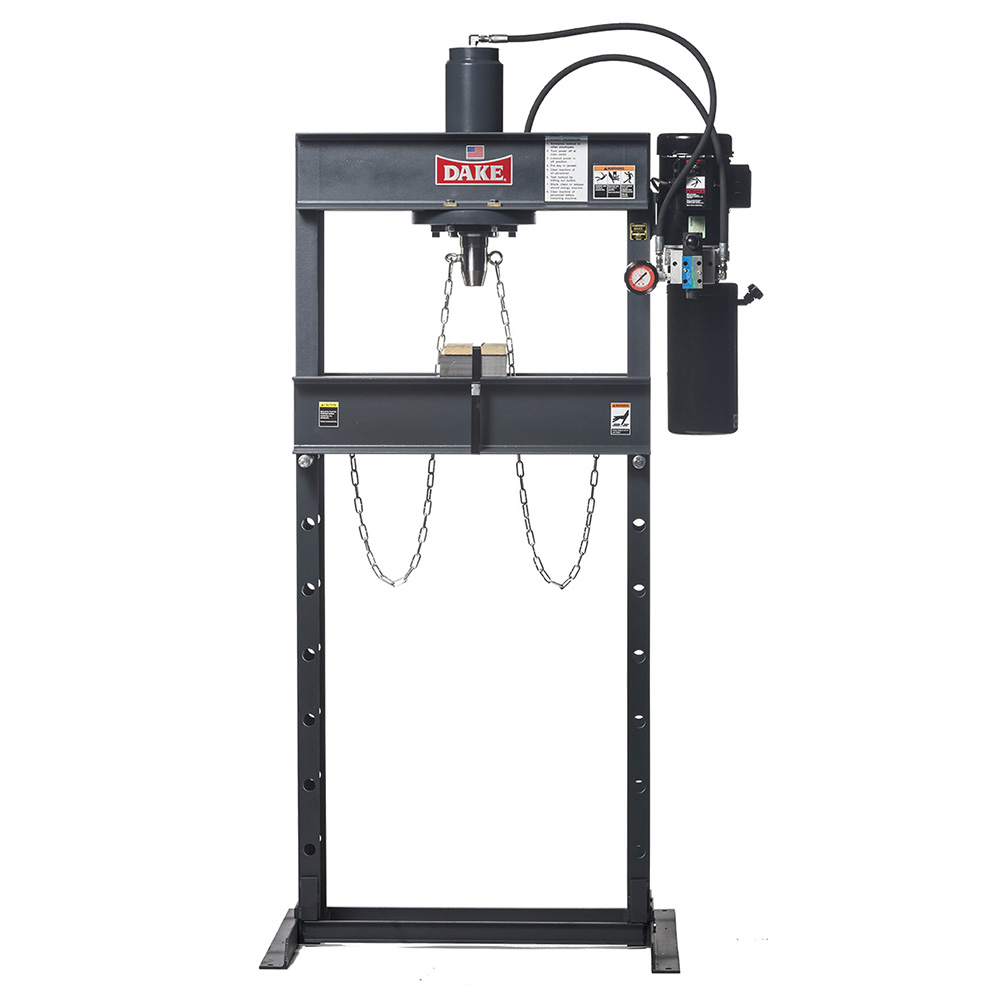

The Dake Hydraulic Press – Electrically Operated – H-Frame – 110V – 1 Ph – 25-Ton is a essential addition to any workshop looking for Power Tools solutions.
Over $3,000 – Premium shop systems, lathes & CNC setups
Product Description
Increase the power and precision of your workshop with the Dake Electrically Operated H-Frame – 110V – 1 Ph – 25-TonHydraulic Press. Designed for both woodworking and metalworking, this heavy-duty press provides the force you need to handle tough pressing, bending, and shaping tasks with ease. Table height adjusts for proper positioning with included lifting chain. The three-point lever provides single-handed control over ram movement. A double-acting cylinder moves the ram during the downstroke and the return, providing smooth movement in both directions and enabling precise positioning.Operating on a 110V, 1-phase power supply, it delivers reliable, consistent pressure for a wide range of applications. Whether you’re pressing joints, shaping metals, or straightening components, this press offers professional-grade performance for both home shops and industrial environments.
Features: Electric power unit has convenient single phase, 110 volt operation for greater portability Lever control ram advance for easy operation Double acting cylinder allows for convenient positioning of ram Sturdy, welded channel iron frame for durability Quiet, low pressure hydraulic components for greater efficiency and smooth pressing One hand ram positioning with 4-way valve hydraulic control
Specifications: Capacity: 25 tons Operation: Electric Horsepower: 1 Voltage: 110V, Single Phase Width Between Uprights: 28″ Width Between Table Channels: 7″ Minimum Ram to Table: 8″ Maximum Ram to Table: 44″ Ram Travel: 10″ Screw Travel: n/a Horizontal Workhead Travel: Fixed Footprint: 30″ x 38″ Height: 88″ Weight: 570 lbs Base: 30″ x 38″ Ram Advance Speed: n/a Pressing Speed: 10 ipm RPM: 3,450 Air Pressure: n/a
What’s Included: Frame Safety Relief Valve 2 Combination Table Plate/V-Blocks Pressure Gauge Lifting Chain
Product Dimensions:
Length: 48.00 IN X Width: 40.00 IN X Height: 95.00 IN Weight: 644.0000 LB
