Product Description

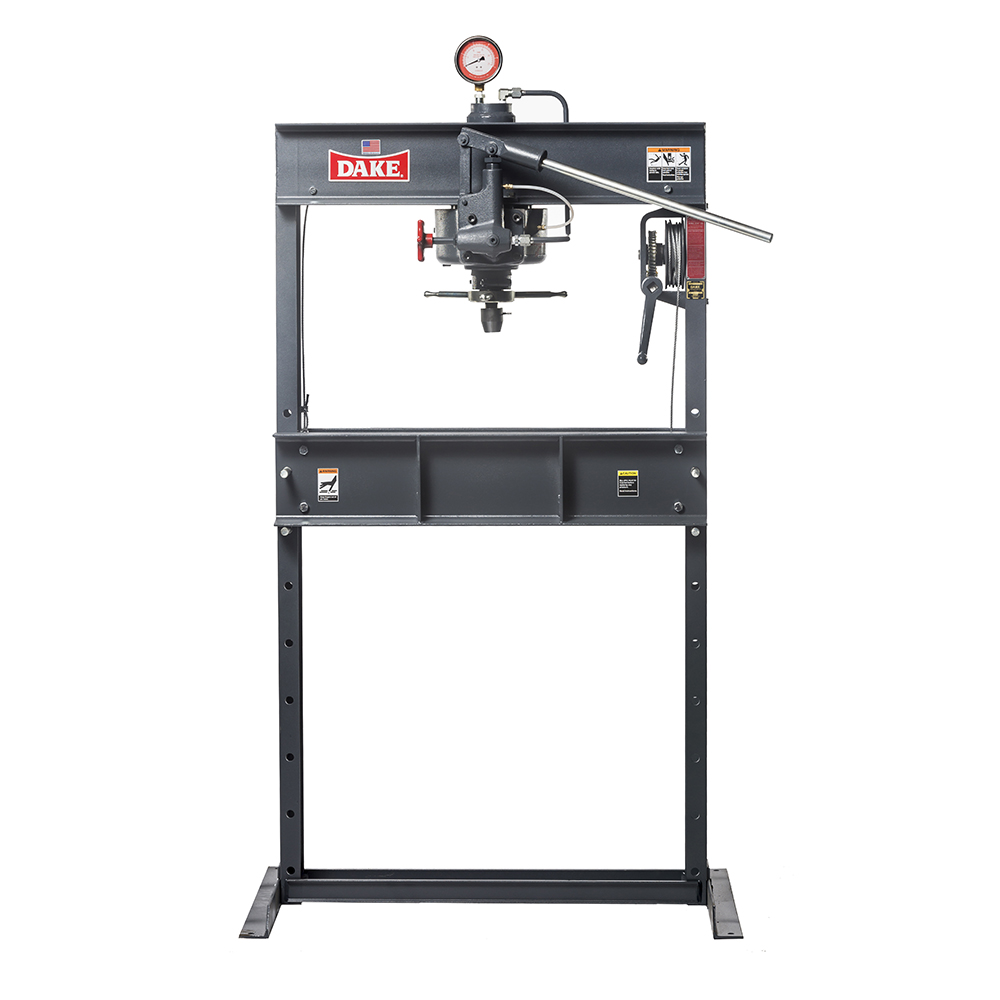

The Dake Model 25HHydraulic Press – Hand Operated – 25-Ton offers 25 tons of pressing power. It features 5 3/16 inches between the table channels, 39 inch maximum ram to table, and is 76 inches tall.
Features: Hand operation for economical performance By-pass hole prevents excessive ram extension Rapid screw traverse of ram permits quick, easy movement of the ram by means of a convenient handwheel Rapid ram return starts as soon as release valve is opened and may be stopped at any point by closing the value
Specifications: Capacity (tons): 25 Operation: Hand Width Between Uprights (in): 33 1/2 Width Between Table Channels (in): 5 3/16 Minimum Ram to Table (in): 4 Maximum Ram to Table (in): 39 Ram Travel (in): 5 Screw Travel (in): 5 Footprint (in): 42 1/2 x 30 Height (in): 76 Weight (lbs): 460 Base (in): 42 1/2 x 30
What’s Included: (1) Frame (2) Steel V-Blocks (1) Flat Ram Nose (1) Tonnage Gauge (1) Traversing Workhead (2) Steel Table Plates (1) Self-Locking Table Hoist
Product Dimensions:
Length: 48.00 IN X Width: 36.00 IN X Height: 84.00 IN Weight: 504.0000 LB
