Product Description

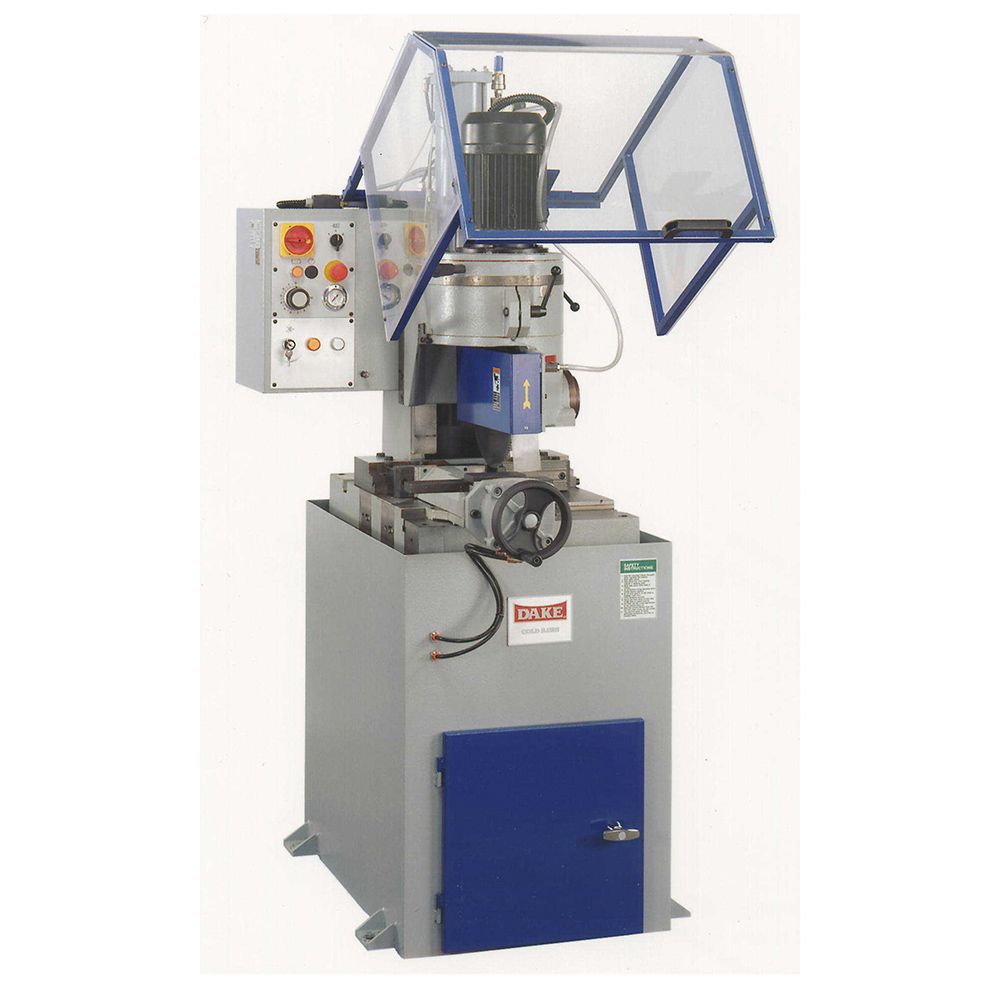

Semi-automatic non-ferrous saw that’s user friendly for set up and operation. Featuring two removable surface wear plates, heads that rotate 45º, three gib guides, and a manual oiler.
Features: Outboard section of the table is designed so shorter lengths tumble down a mesh discharge chuteManual oiler to lubricate 1″ thick, hardened vertical ways3.5/4.5 HP motor has the muscle to drive a 14-1/2″ or 12″ blade quickly and quietly through solidsClear acrylic hood has shock assists for raising and lowering and electrical interlocksTable features two removable surface wear plates to support longer cut lengthsThree gib guides for the cutting head with two adjustable cast iron gib blocks in each for increased cutting accuracy and easy adjustmentRear surface of the gearbox is machined with interlocking circles to evenly distribute oil over the waysLarge automatic clamping vise features adjustable gib guides, removable face plates, and an anti-burr armSwap cutting head to gain non-ferrous/ferrous option on same sawAbility to add a programmable feed system to make fully automatic with wide range of capabilities
Specifications: Voltage: 220VHorsepower: 3.5/4.5Cutting Ability: Non-Ferrous / PlasticMaximum Blade Diameter: 14-1/2”Maximum Vise Opening: 8-3/4”Maximum Feed Vise Opening: n/aMaximum Angle: 45° leftSlotting: NoPhase: 3Speeds: 1,500/3,000 rpmWeight: 1,360 lbsSolid Round 90˚ Capacity: 4-1/4”Solid Round 45˚ Capacity: 3-5/8”Tube 90˚ Capacity: 5-1/16”Tube 45˚ Capacity: 5”Square 90˚ Capacity: 4-1/4”Square 45˚ Capacity: 3-7/8”Rectangle 90˚ Capacity: 4” x 7”Rectangle 45˚ Capacity: 4” x 6”Work Height: 35”Height: 73”Width: 28”Depth: 39”440V model requires step-down transformer for operation (part number: 300674) Sold Separately
What’s Included: BladeCoolantSaw blade selector calculatorTools kit for changing bladesInstruction and service manualAdjustable positive stop
