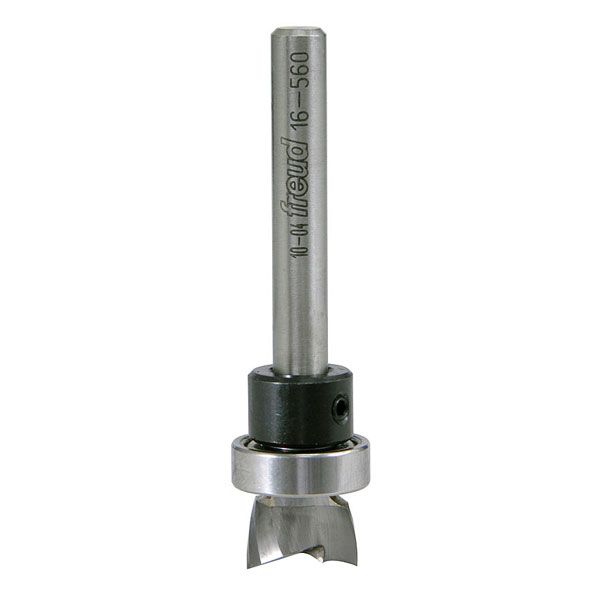

The Freud 16-560 Mortising Router Bit with Top Bearing – 1/4″ SH – 1/2″ D – 5/16″ is a essential addition to any workshop looking for Routing & Accessories solutions.
Under $50 – Perfect for stocking stuffers, hand tools, small accessories
Product Description
Freud Mortising Bits are designed to deliver clean, precise, splinter free mortises in plywood, veneer, solid wood or almost any composite material. Most of these bits feature a down shear design that helps eliminate splintering by pushing wood fibers down during the cut. Ideal for mortising hinges and hardware, or cutting grooves and dadoes. These bits are designed with deep center gullets for maximum material removal without chip loading. Use in any CNC or portable router. Features: Down shear design on most bits for clean top surfaces Deep center gullets for fast chip removal Ideal For:mortising hinges & hardware; dadoes Specifications: Measurement: Max RPM 24000 Carbide Height (h) 5/16″ Overall Dia. (D) 1/2″ Overall Length (H)2-7/16″ Shank Diameter: 1/4″ Material: Freud Perma-SHIELD Coating
What’s Included: (1) Freud – 16-560 Mortising Router Bit with Top Bearing – 1/4″ SH – 1/2″ D – 5/16″ Note: Available with top bearings to suit popular routing jigs
Product Dimensions:
Length: X Width: X Height: Weight: 1.0000 LB
Note: We do not display prices to ensure you always see the most current Woodcraft pricing upon click.
