Product Description

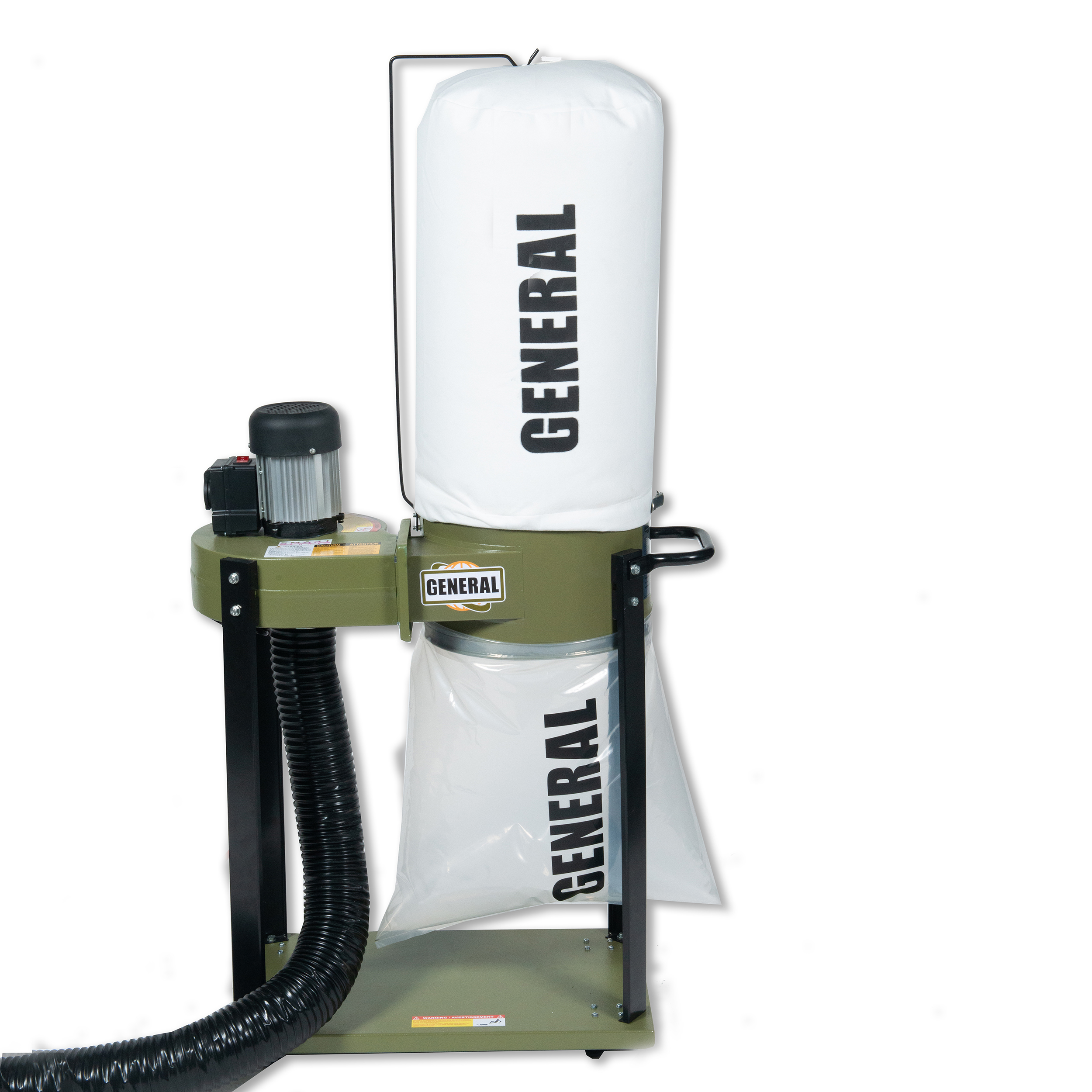

This General Dust Collector is a high quality collector that will meet your dust management needs and applications. Simply plug your tool into the DC and the DC will turn on and off with the tool. Designed for Industrial applications with a continuous duty rating. The motor is completely enclosed, fan cooled and permanently lubricated. Intake screen prevents larger pieces from jamming in the impeller. Innovatively designed to be portable and mobile on four heavy duty swivel casters. 5″ heavy-duty PVC hose between body of fan and collector. It is user friendly and can move around your shop at great ease.
Features: Quick-release bag clamps with metal straps The Safety lock-out switch with removable key, helps prevent unauthorized use The precision aluminum spin-balanced impeller provides smooth operation and minimal noise Includes reusable clear plastic collector bag and washable, extra fine 2 micron filter bag 6-5/32″ Static pressure of water without bag Electrical Testing Laboratory CERTIFIED (ETL) Limited 3 year warranty extendable to 5 years if registered at www.generaltoolsusa.com
Specifications: Inlet Diameter : 4″ (102 mm) Airflow Capacity : 506 CFM Sound Rating : 80-85 dB Blower Wheel Diameter: 10″ (254 mm) Static Pressure : 6 ¾” of water Filter Bag/Canister Size : 13 ¾” x 25⅝” (350 x 650 mm) Overall Dimensions (L x W x H) : 32″x 15 ⅛” x 59 ⅞” (815 x 385 x 1520 mm) Motor : 1 HP, 110 V, 7 A Weight(N.W/G.W) : 54¾lbs(24.85kg)/591/4lbs(26.85kg) Switch : Dual Auto Switch
