Product Description

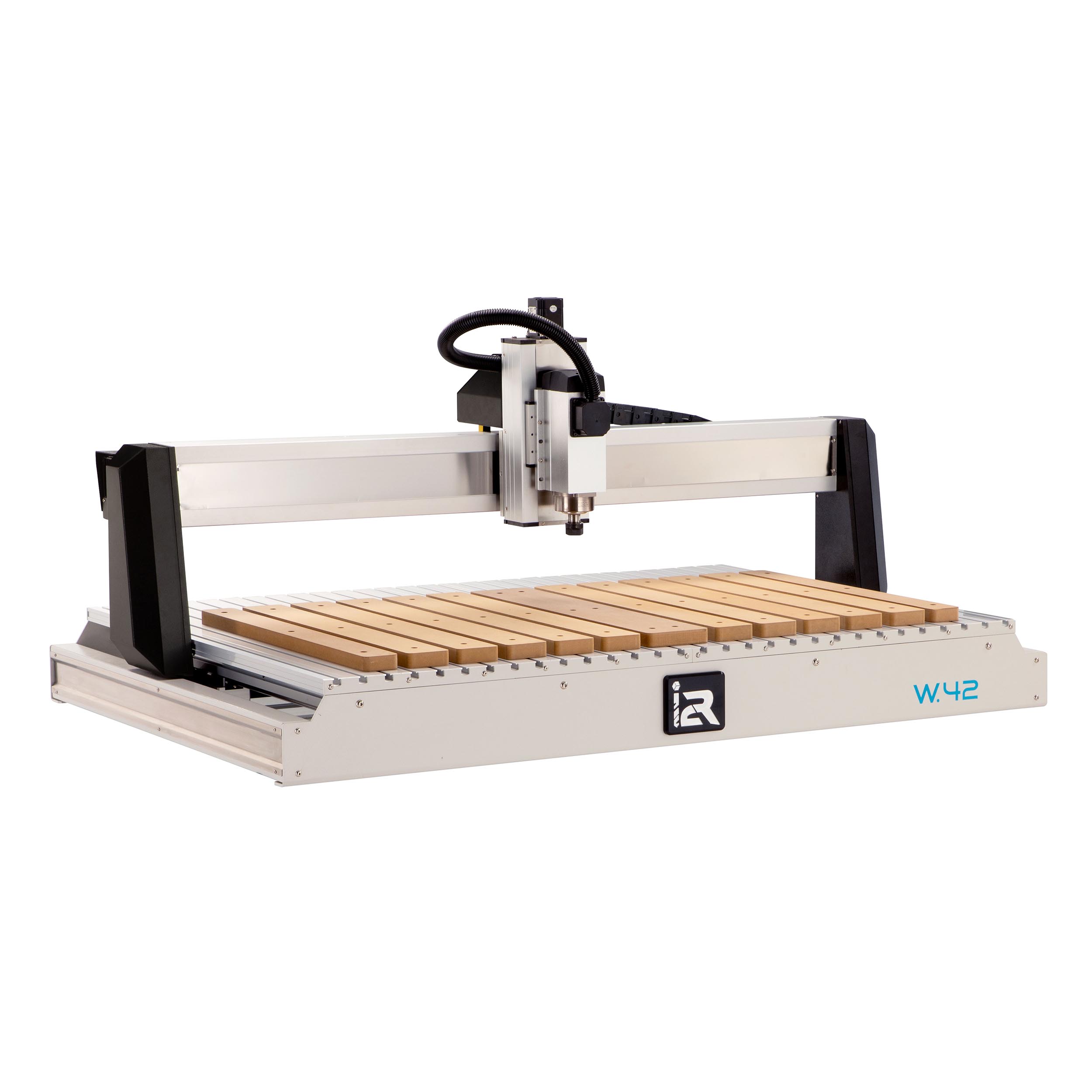

Introducing a new class of CNC. The i2R CNC W.42 series is a pioneering figure in small format CNCs. With an X axis work area of 48″, it allows for jobs typically reserved for 4’x4′ or 4’x8′ and larger machines, while only taking up only half the size. Not only does it allow the necessary space for bigger jobs, it also has the power for them. Equipped with a 3 Horse Power spindle and an ER20 collet, this machine can make short work of large material. Every i2R W.42 comes fully equipped and ready to go. All you have to do is install the UCCNC software package on your PC or laptop,* plug in and release your creativity. You won’t have to worry about any external file transfers using a USB. Simply connect the control box to your PC and directly import your G-Code. A streamlined system that allows for changes to your project in seconds. The UCCNC controller is a powerful and easy to use controller with over a decade of proven results in demanding applications. 4-axis capability with powerful electro spindle performance, and rotary machining capability in a compact industrial machine.
Features: 3-Axis CNC Table & Gantry 3 HP Air Cooled Spindle (220V) Integrated MDF Spoilboard UCCNC Control Software for Windows PC Control Box & Ethernet Cable Z-Axis Automatic Touch Off Puck Wrenches Collets 1/4″ and 1/8″ *PC / LAPTOP STAND SOLD SEPARATELY, PC NOT INCLUDED, STAND NOT INCLUDED
Specifications: Spindle Speed: 0 – 2400 rpm 220V, 50-60Hz, 10A, 1-Phase Machine Dimensions 38″L x 65″W x 30″H (957mm x 1640mm x 760mm) Shipping Dimensions 65L” x 39″W x 33″H (1650mm x 990mm x 838mm) Machine Weight around 450 lbs (around 183 kgs) Tool Touch-Off Device included
For current pricing, click “Get Details”
