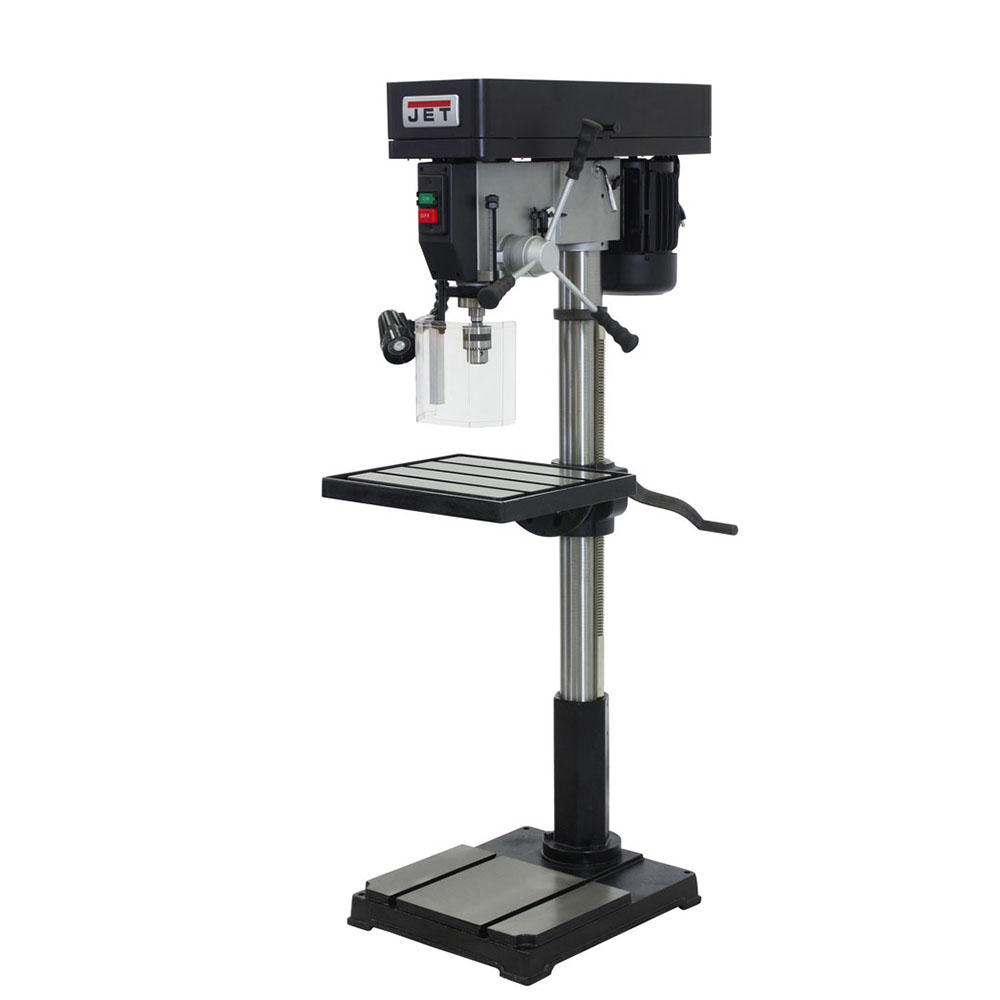

The Jet IDP-22 22″ Industrial Floor Model Drill Press is a essential addition to any workshop looking for Power Tools solutions.
Over $1,000 – Professional shop machinery & heavy equipment
Product Description
The JET 17″ and 22″ Industrial Drill Presses set the standard with unmatched accuracy, rock-solid stability, and all-around versatility. Engineered for heavy-duty performance, each model features an oversized cast iron table and base for maximum support. CSA/CUS Certified and backed by JET’s industry-leading Two Year Warranty, these drill presses deliver the power and reliability professionals demand.Features:1/2″ diameter external positive depth stop with three nut locking feature for quick adjustmentAdjustable tension spindle return springDrill chuck and key attach to the side of the drill press always within reach of the operatorHinged metal belt and pulley coverLarge Hand Grips designed with the users comfort in mindOn/off switch located on front of the drill press headRotating, 45° tilting, crank-operated worktable with quick release clampSpindle is supported by high quality ball bearingsTable ground for accuracySpecifications:Stock Number: JT9-354301Model Number: IDP-22Base Dimensions: 22-5/8” x 19-7/16” x 3-3/8”Base Work Table: 21-1/2” x 18-5/16”Chuck Size: 5/8”Column Diameter: 3-5/8”Distance Column to Spindle:10-7/8”Drilling Capacity Cast Iron: 1-1/4”Drilling Capacity Mild Steel: 1“Drills to Center of Circle: 22”Motor: 1-1/2 HP – 115/230V – 1 PhNumber of Spindle Speeds: 12Overall Dimensions:35” x 19” x 67”Range of Spindle Speeds: 175 – 3,050 RPMSpindle Distance to Base: 48-1/2”Spindle Distance to Table (Max.): 28”Spindle Taper: MT-3”Spindle Travel: 4-13/16”Style: Belt DriveT-Slot Centers: 3/4″T-Slots Number and Size: 2 and 5/8”Table Size: 18-5/8” x 16-1/8”Weight: 364 lbWork Table Weight Capacity: 176 lbWarranty: 2 Year
What’s Included: 2 Year Warranty
Product Dimensions:
Length: 35.00 IN X Width: 19.00 IN X Height: 67.00 IN Weight: 322.0000 LB
