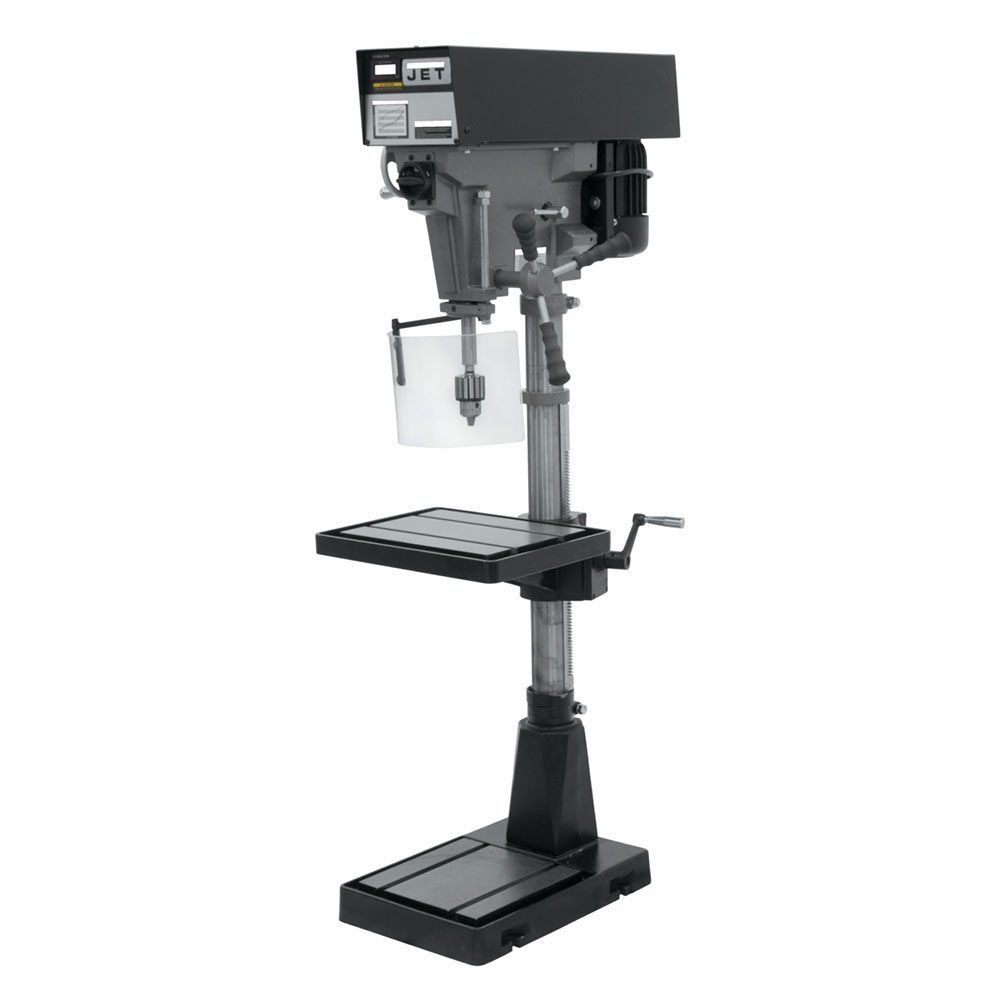

The Jet J-A5816 15″ Variable Speed Floor Model Drill Press – 115V – 1Ph is a essential addition to any workshop looking for Power Tools solutions.
Over $1,000 – Professional shop machinery & heavy equipment
Product Description
JET Drill Presses are engineered for ultimate control and performance. Featuring a variable-speed motor with a stepped-pulley system and continuously variable transmission, these machines offer a wide speed range—and let you adjust on the fly without stopping operation. The scale-marked handwheel, connected to a precision reduction gearing system, gives operators exact control over chuck speed. With a built-in tensioner pulley to maintain perfect belt tension during speed changes, JET delivers smooth, consistent power for every job.Features:1/2″ Drill chuck and arbor included3″ column diameter for maximum head support6″ stroke for deep hole applicationFull bearing support on quill for maximum spindle stiffnessHandwheel speed adjustment of 400 to 5,000 RPMLarge 2-1/4″ quill for greater accuracySpecifications:Stock Number: JT9-354550Model Number: J-A5816Base Dimensions: 20-7/16” x 14-3/16”Base Work Table: 12-1/8” x 11-13/16”Column Diameter: 3”Distance Column to Spindle: 7-1/2”Drilling Capacity Cast Iron: 5/8”Drilling Capacity Mild Steel: 1/2″Drills to Center of Circle: 15”Motor: 1 HP – 115/230V – 1 PhOverall Dimensions: 30” x 20” x 71”Range of Spindle Speeds: 400 – 5,000 RPMSpindle Distance to Base: 44-1/2”Spindle Distance to Table (Max.): 25-3/4”Spindle Taper: MT-2Spindle Travel: 6″Style: VariableT-Slot Centers: 5-5/16”T-Slots Number and Size: 2 and 1/2″Table Size: 15” x 18”Table Travel: 16-3/4”Weight: 426 lbWork Table Weight Capacity: 90 lbWarranty: 2 Year
What’s Included: 2 Year Warranty
Product Dimensions:
Length: 31.50 IN X Width: 21.50 IN X Height: 67.50 IN Weight: 388.0000 LB
Note: We do not display prices to ensure you always see the most current Woodcraft pricing upon click.
