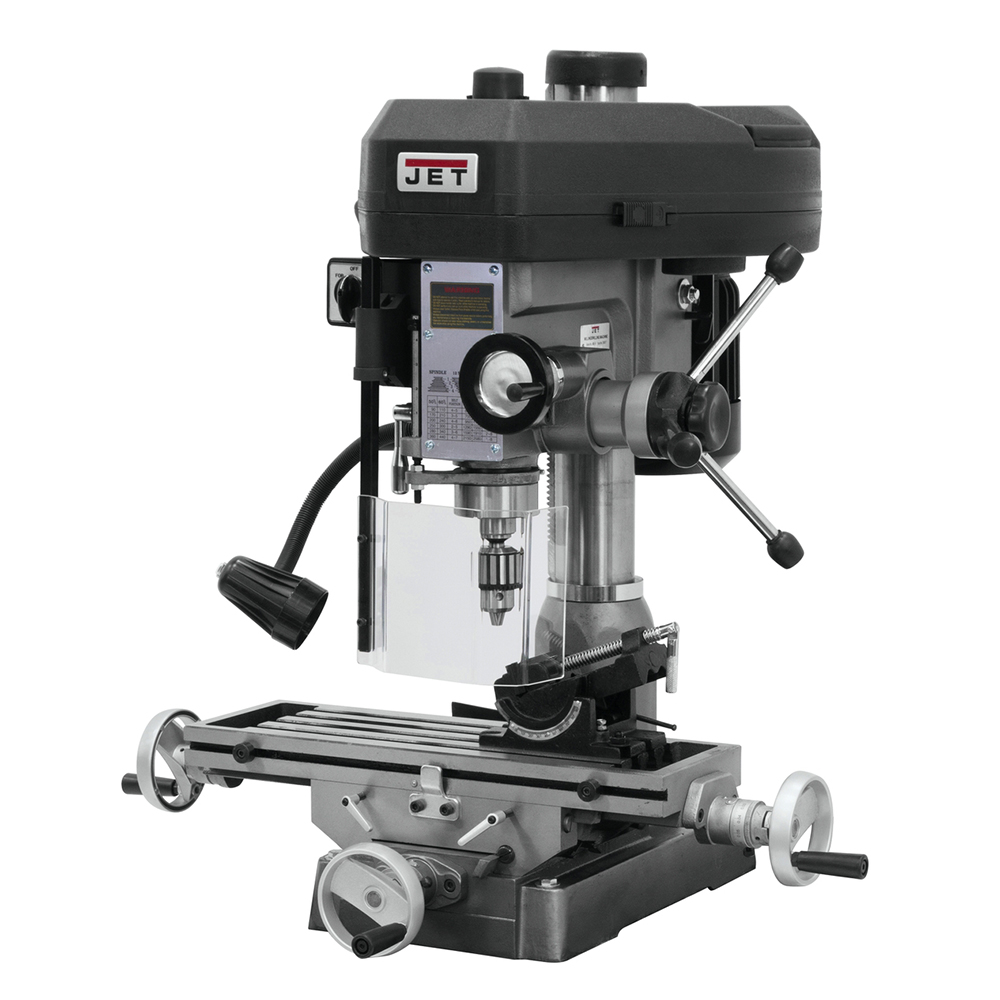

The Jet JMD-15 Mill/Drill with R-8 Taper – 115V – 1 Ph is a essential addition to any workshop looking for Power Tools solutions.
Over $3,000 – Premium shop systems, lathes & CNC setups
Product Description
Mill drills offer a space-saving alternative to traditional milling machines—combining the functionality of a drill press with the precision of a milling machine’s dual-coordinate table. Designed for light machining, the JMD Milling Drilling Machines deliver impressive flexibility and performance. A built-in locking collet keeps your cutting tool secure under lateral pressure, ensuring safe and accurate operation. Ideal for shops where space, cost, and capability all matter.Features:1/2” Drill chuck, chuck arbor360° head swivelAdjustable carbide facemillBase taper allows for easier clean upEasy to read external depth gaugeMill Drill Stand, p/n 350045, shown in some images, is optionalOne-piece cast iron column for added supportUL ListedSpecifications:Base Dimensions: 12-1/2” x 19-3/4”Column Diameter: 3-5/8”Drilling Capacity: 1”Max Distance Spindle to Table: 14-1/2”Motor: 1 HP – 115/230V – 1 PhNumber of Spindle Speeds: 12Overall Dimensions: 38” x 37-1/2” x 42”Quill Diameter: 2-7/16”Range of Spindle Speeds: 110 – 2,580 RPMSpindle Taper: R-8”Spindle Travel: 3-1/2”Swing: 14-1/2”T-Slot Centers: 1-13/16”T-Slots Number and Size: 4 and 9/16”Table Longitudinal Travel: 14”Table Size: 7-1/2” x 23”Warranty: 2 Year
What’s Included: 2 Year Warranty
Product Dimensions:
Length: 36.50 IN X Width: 37.50 IN X Height: 35.50 IN Weight: 370.0000 LB
Note: We do not display prices to ensure you always see the most current Woodcraft pricing upon click.
