Product Description

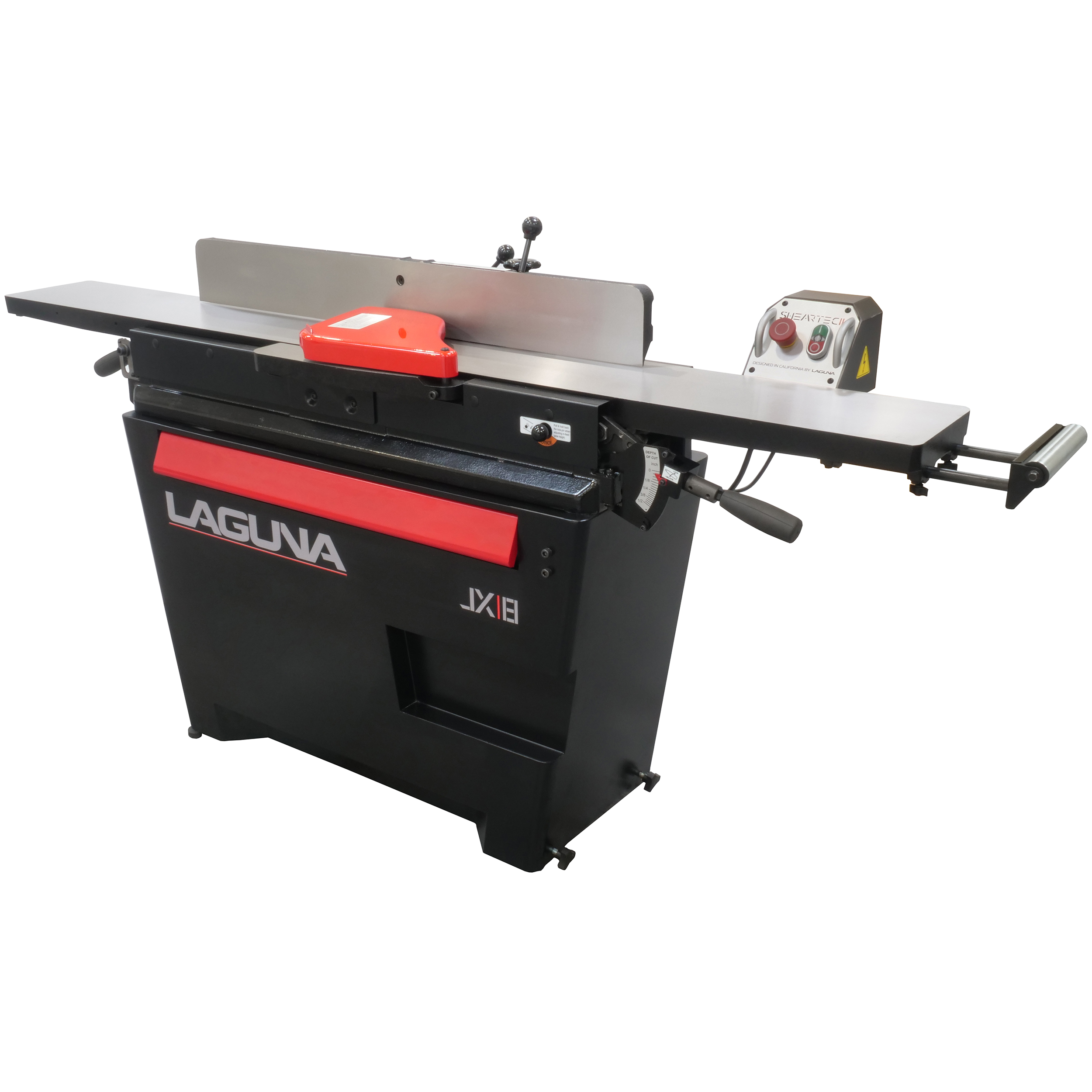

The Laguna JX|8 QuadTec II is loaded with great features to make jointing safer and more enjoyable. It includes parallelogram table adjustments that travel along an arc to keep the same distance to the cutterhead. An emergency knee stop that uses a body-length bar at knee height to shut off the jointer allows the machine operator to stop the machine quickly at any position along the front of the machine, while keeping hands on the workpiece. The new JX Series machine body has been redesigned with a toe kick to allow the user to be positioned closer to the machine tables and move safer and easier along the length of the machine. Infeed tables are fitted with a pullout support roller to help support longer materials. The QuadTec II cutterhead produces an amazing surface finish on all woods, including difficult hardwood, with its 4-sided carbide insert knives that are far superior to straight HSS knives. Specifications Motor: 110V, 1-3/4 HP, 1 phase, 60 HZ, 15 amp CSA: Yes Bed Size: 8″ x 72″ Infeed Table Pullout Extension: 8″ Rabbeting Capacity: 1/2″ Fence Size: 38″ x 4-3/4″ cast-iron Fence Tilt: 45deg/90deg Max. Depth of Cut: 1/8″ Table Height from Floor: 31″ Safety Bar Shutoff: Yes Wheels Built-In: Yes Dust Port Diameter: 4″ Number of Knives: 20 four-sided carbide knife inserts Cutterhead RPM: 5,500 Cutterhead Diameter: 3-1/8″ Bed Adjustment: parallelogram Overall Dimensions: 75-1/2″ x 26-1/2″ Shipping Dimensions: 76″ x 25″ x 41″ Net Weight: 380 lbs. Shipping Weight: 495 lbs.
