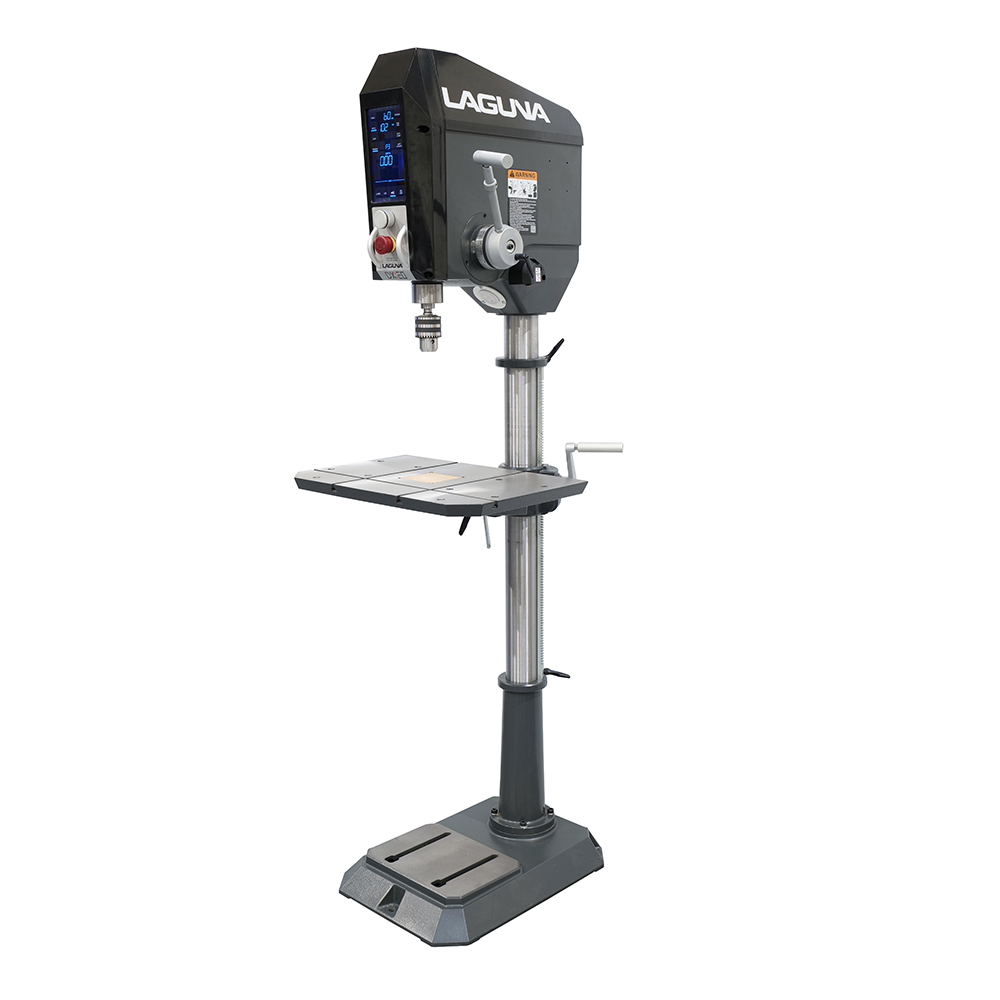

The Laguna DX:20 – 20″ Drill Press with Touchscreen – 2-1/2 HP is a essential addition to any workshop looking for Power Tools solutions.
Over $1,000 – Professional shop machinery & heavy equipment
Product Description
The DP20 Industrial Drill Press combines industrial‑grade power with modern digital control for demanding shop applications. Powered by a 2.5 HP Pulse Width Modulation (PWM) motor, the DP20 delivers consistent torque across a wide speed range from 60 to 3,600 RPM, supporting precision work in wood, metal, plastics, and other materials.An integrated Touch Screen Smart Panel with a blue LCD digital readout displays real‑time RPM, load, and quill depth, helping improve accuracy and workflow. The large 3‑3/4″ x 6‑7/8″ touch screen provides clear visibility and intuitive control, blending functionality with a clean, modern design.Features:Industrial‑grade 2.5 HP Pulse Width Modulation (PWM) motorConstant torque performance across the full speed rangeVariable speed control from 60 to 3,600 RPMDesigned for demanding applications in wood, metal, plastics, and moreState‑of‑the‑art Touch Screen Smart PanelBlue LCD digital readout for clear visibilityDisplays real‑time RPM, load, and quill depthLarge 3‑3/4″ x 6‑7/8″ touch screen for easy operationTouch screen interface exceeds competitors in size and functionalityModern design paired with industrial performanceSpecifications:Motor Type: DC Brushed with PWMPower Output: 2.5 HPCurrent: 15 AmpVoltage: 220VFrequency: 60 HzSpeed Range: 60–3,600 RPM, electronic variable, forward/reversePower Transfer: Poly‑groove drive beltMachine Control: LCD Touch Screen Smart PanelMemory Settings: 5Swing: 20″Spindle Taper: MT2Quill Travel: 6″Quill Diameter: 2.6″Chuck Capacity: 5/64″–5/8″Table Size: 15″ x 22″Table Slots: 3 T‑slotsTable Clamp Holes: 10Table Tilt: ±90°Table Swivel: 360° around columnSpindle to Table Distance: 30″ maxSpindle to Base Distance: 49.5″ maxColumn Diameter: 3.15″Base Size: 22.83″ x 16.92″Net Weight: 304 lbs.Gross Weight: 326 lbs.Packing Dimensions: 72.5″ x 28.5″ x 20″
What’s Included: DP20 Industrial Drill PressIntegrated LCD Touch Screen Smart Panel
Product Dimensions:
Length: 72.50 IN X Width: 28.50 IN X Height: 20.00 IN Weight: 304.0000 LB
