Product Description
Super jigs offer extraordinary joint making capability at exceptional price points. No other jigs equal the versatility and precision of Leigh super jigs. Variably spaced through and half-blind dovetails are standard on all super jigs. Infinitely adjustable one-piece fingers are easily positioned for any joint pattern, guaranteeing a half pin at each edge of the joint, regardless of board width. The cross-cut fence fits on the dovetail finger assembly to become a sliding dovetail template. Rout half-blind pin boards and tail boards at the same time using the included two-function spacer to offset the tail board and rout complete joints in one pass with the super jigs, you’re not limited to one bit and one depth of cut. Just select any of the five half-blind bits available and rout half-blind joints in the depth that best suits your project. The finger assembly can also produce two sizes of box joints, 5/16″ and 5/8″. The amazing joint making capability of super jigs is due in part to the revolutionary new Leigh E-bush. Very precise adjustments for fit are made easily with the E-bush. Settings are changed using the included pin wrench and the uniquely shaped locking nut makes tightening the E-bush a snap. Markings clearly indicate the adjustment direction necessary for the desired change. A simple twist of the E-bush changes its active diameter which in turn changes the fit of finger joints and half-blind dovetails. Easy to use cam action clamps and aluminum clamp bars hold the work piece securely against non-slip material applied to each clamping surface. Leigh super jig accessory kits include a vacuum and router support (VRS) and a 7-piece boxed Leigh router bit set. Leigh’s ingenious VRS provides router support and dust-free routing. The router rests on the channel of the VRS positioned between two wire control arms that guide the dust chute below, keeping the chute aligned with the cutter as it traverses the jig. The VRS is easily attached without modification to the jig using the included hardware, effectively solving a notoriously tricky dust-collection situation. The 7-piece router bit set includes four 8˚ bits for cutting through dovetails and three bits (10deg, 12deg, and 18deg) for machining half-blind dovetails. All bits have 8mm shanks and require the collet reducer that comes with the Super 18″ Dovetail Jig.

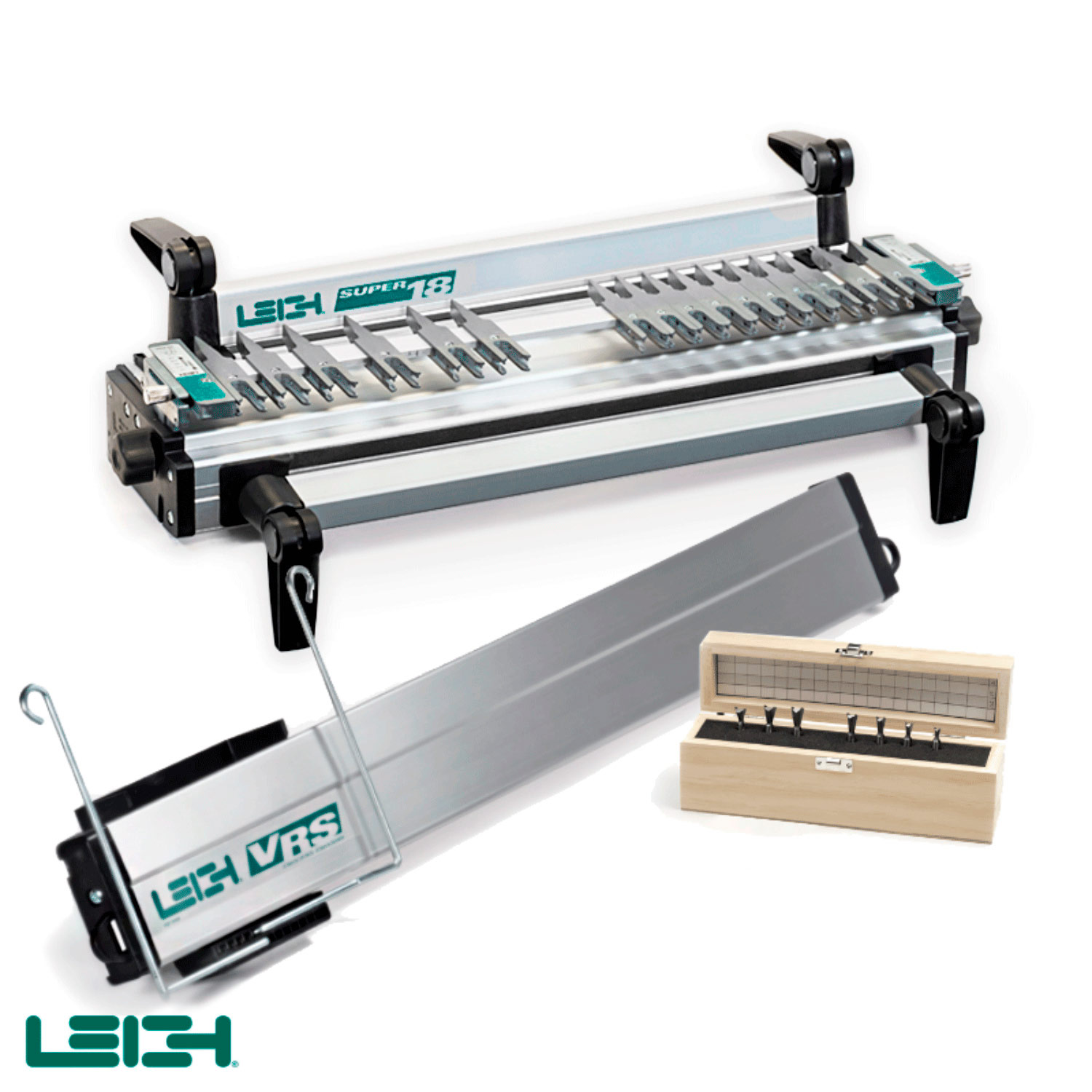

Features: Super 18″ Dovetail Jig (SUPER 18) Infinitely adjustable one-piece fingers are easily positioned for any joint pattern Fine-tune the fit of the fingers with Leigh’s E-Bush template guide that adjusts in increments of .002″ Cross-cut fence fits on the dovetail finger assembly to become a sliding dovetail template Rout half-blind pin boards and tail boards at the same time Finger assembly can produce two sizes of box joints, 5/16″ and 5/8″ Easy to use cam action clamps and aluminum clamp bars hold the work piece securely Non-slip material on every clamping surface Includes 3 router bits Made in Canada Accessory Kit – Router Bits & VRS (AC 18) Router support and dust collection solution in one VRS comes with two adapters to fit popular vacuum hose sizes from 1″ to 2 1/2″ Includes 7-piece boxed Leigh router bit set
Specifications: Jig Size/Capacity: Accepts boards up to 18″ Maximum Board Thickness – Half-Blind Dovetails: 1″ Maximum Board Thickness – Through Dovetails: 13/16″ Router Bit Shank Size: 8 mm
What’s Included: Super 18″ Dovetail Jig (SUPER 18) (1) Jig main body (1) 1/2″ 8deg dovetail bit (1) 1/2″ 14deg dovetail bit (1) 5/16″ straight bit (1) 1/2″ to 8mm collet reducer (1) Leigh E Bush, Nut and Pin Wrench (1) Sliding dovetail fence (1) Half-blind bridge piece material (1) Square drive screwdriver (finger adjustment) (4) Cam action speed clamps (1) Spacer (1) Fully illustrated user guide Accessory Kit – Router Bits & VRS (AC 18) (1) 18” Vacuum & Router Support (1) 1/4″ x 8deg Through Dovetail Bit (1) 5/16″ x 8deg Through Dovetail Bit (1) 3/8″ x 8deg Through Dovetail Bit (1) 7/16″ x 8deg Through Dovetail Bit (1) 1/2″ x 10deg Half-blind Bit (1) 1/2″ x 12deg Half-blind Bit (1) 1/2″ x 18deg Half-blind Bit (1) Bit Storage Box
