Product Description
The Leigh Model TD330 Through Dovetail Jig is easy to use and affordable. Two carbide-tipped dovetail and straight router bits make joints in board widths up to 12-7/8″ and board thicknesses up to 13/16″ right out of the box. Following the included instructions, the woodworker willattach the jig to a sacrificial board.Then routing through dovetail joints on the TD330 is straight forward. Rout the tails, rout the pins, assemble the joint, and adjust for fit (when required). The adjustable side stop positions the tail and pin boards for perfect board edge alignment.
Features: Create joints in board widths up to 12-7/8″ and board thicknesses up to 13/16″ Adjustable side stop positions the tail and pin boards for perfect board edge alignment Jig template made of tough 30% glass-filled nylon 1/2″ shank carbide-tipped 8deg dovetail bit and straight bit Use a workbench, portable workbench or router table
Specifications: Maximum Board Width: 12-7/8″ Maximum Board Thickness: 13/16″

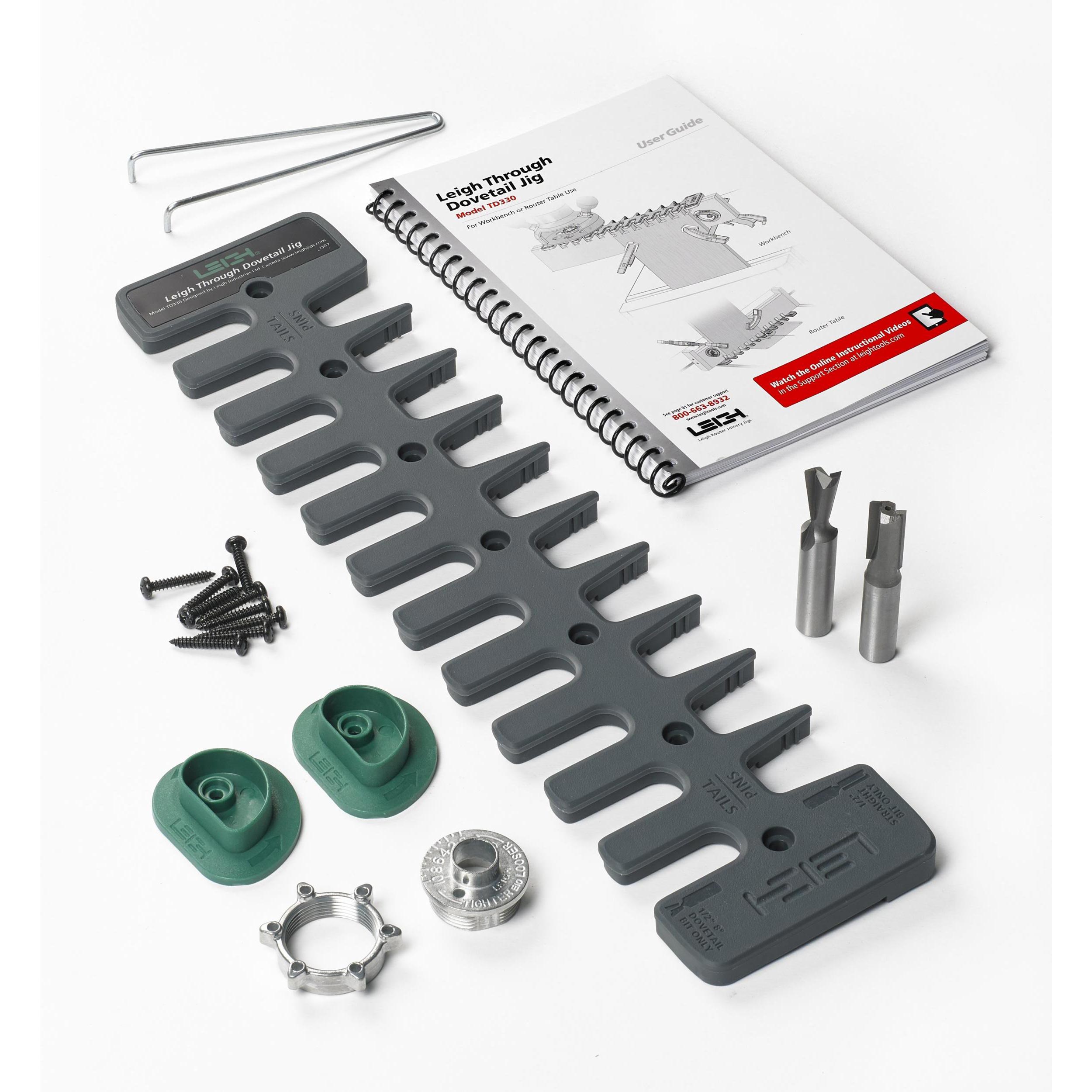

What’s Included: (1) Glass-reinforced nylon template (1) E10 Elliptical Guide Bushing (1) Pin wrench for guide bushing adjustments (1) 1/2″ 8deg dovetail bit (1) 1/2″ straight bit (2) Side stops (1) Model TD 330 Through Dovetail User Guide
Notes: The Leigh Model TD330 Through Dovetail Jig requires a minimum of a 1-1/2 HP (maximum motor HP) router with a 1/2″ collet The customer will create the sacrificial board that the jig uses.
