Product Description

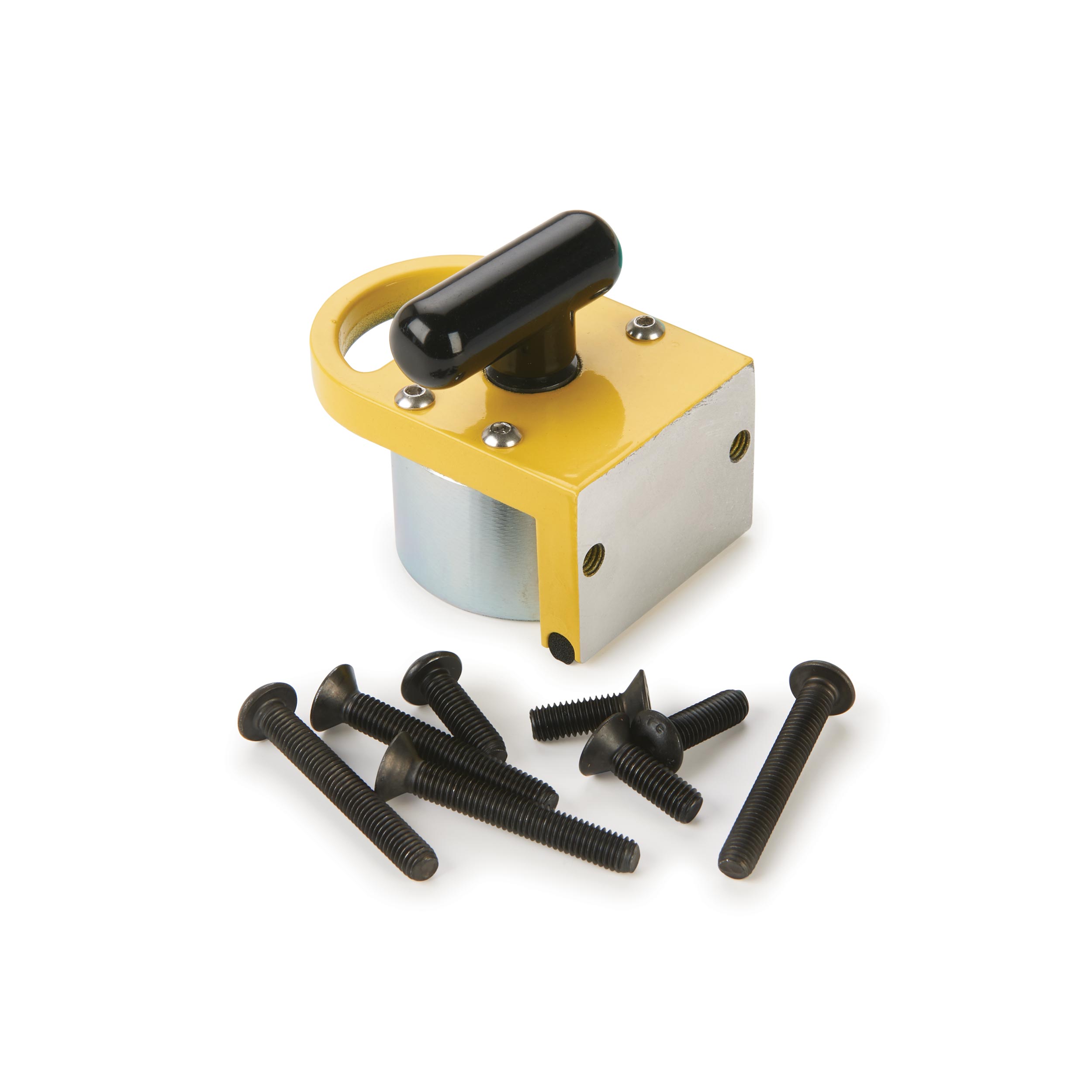

This Magswitch 6″ GripRight 150 Switchable Magnet secures fixtures, fences or jigs in place at a 90deg angle to magnetic ferrous tables (e.g., bandsaw, drill press, etc.). Rotate the knob to turn on and off 145 pounds of magnetic hold force. Simply drill two 10-32 holes in your fixture or fence and attach with the enclosed hardware.
Features: Make custom 90deg jigs, fixtures or fences perpendicular to your work surface by drilling two 10-32 holes and attaching to the GripRight magnets using the enclosed hardware. Attach as many magnets to your fixtures as you want for as much strength and flexibility as you need. We recommend use of two per fixture to avoid pivot. Designed with screw holes to allow attachment of fixtures, jig and fences. Magnet turns completely on and off. Does not use an electrical power source.
Specifications: Max Breakaway: 145 lb on 1″ steel Maximum Shear: 20.45 lb Dimensions: 2.25″ x 1.25″ x 1.56″
What’s Included: (1) GripRight 90deg Switchable Magnet (2) 10-32 x 5/8″ pan head screws (2) 10-32 x 5/8″ flat head screws (2) 10-32 x 1-3/8″ pan head screws (2) 10-32 x 1-3/8″ flat head screws
