The MagSwitch Universal Magnetic Indicator is a essential addition to any workshop looking for Power Tool Accessories solutions.
Under $200 – Great for mid-range hand tools, router bits, safety gear
Product Description

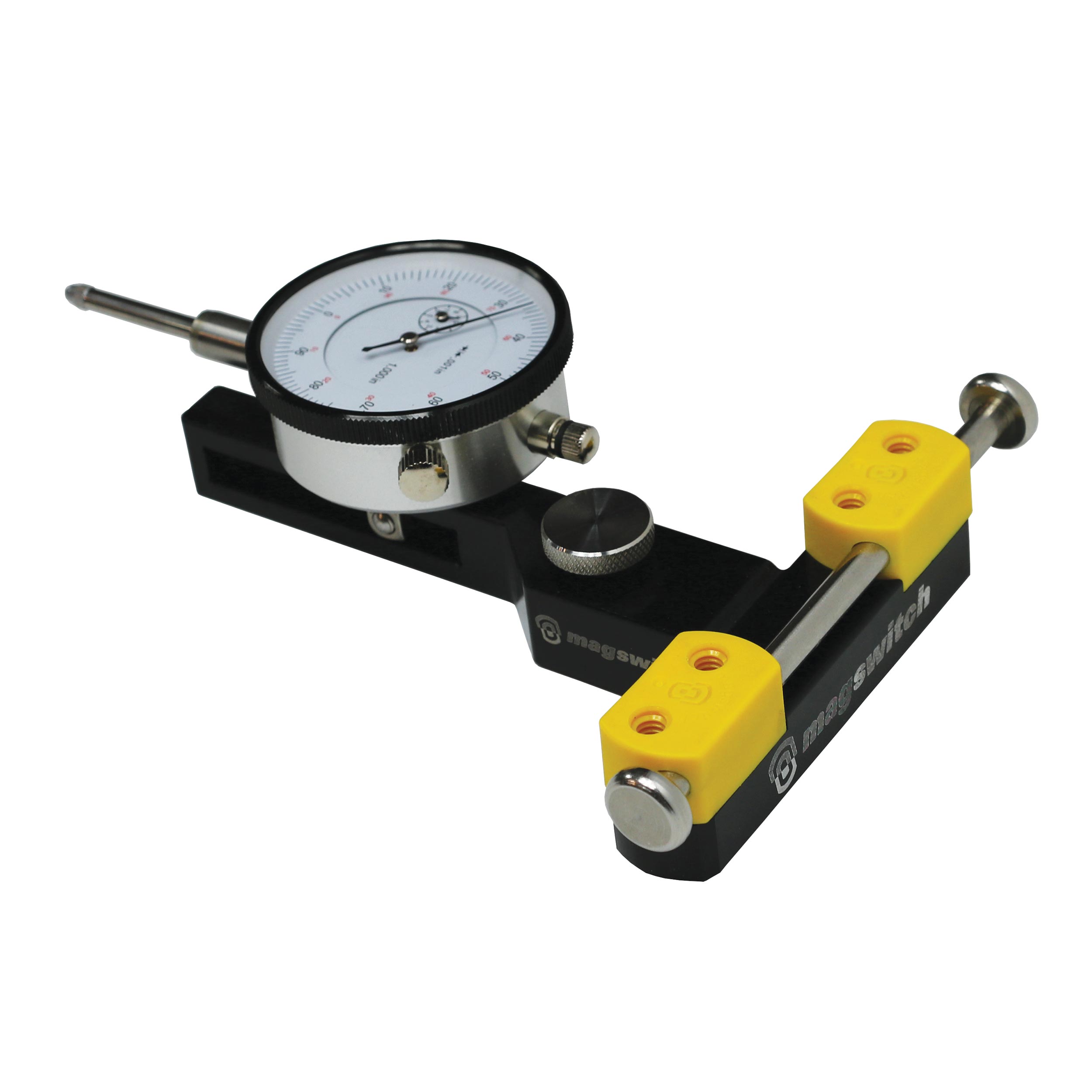

The Universal Saw Indicator from Magswitch is used to measure alignment of the table saw blade relative to the table to allow fine adjustment of blade parallelism. Attach it to ferrous miter bars, which ride in the miter slot to read from table saw blades or fences. Dial indicator is attached via an adjustable slot, allowing it to fit a wide variety of miter slot spacing. Configuration to clamp at any point on a ferrous tabletop allows for micro adjustment of the table saw fence in any position. Features: Works with miter gauges for easy measurement of table and blade alignment Allows for micro adjustment of the table saw fence in any position. Fast actuation of 2 magnets with a linked push pin. Compatible with a wide variety of table saw with ferrous tops. Specifications: Nominal Max Breakaway Force: 120 lbs/ 54 kg Nominal Maximum Shear: 18 lbs / 8.1 kg Net Weight: 1.2 lbs / 0.55 kg Footprint: 4.9″ x 5.9″/ 125 mm long x 150 wide
Product Dimensions:
Length: 8.55 IN X Width: 7.00 IN X Height: 3.90 IN Weight: 1.4300 LB
Note: We do not display prices to ensure you always see the most current Woodcraft pricing upon click.
