Product Description

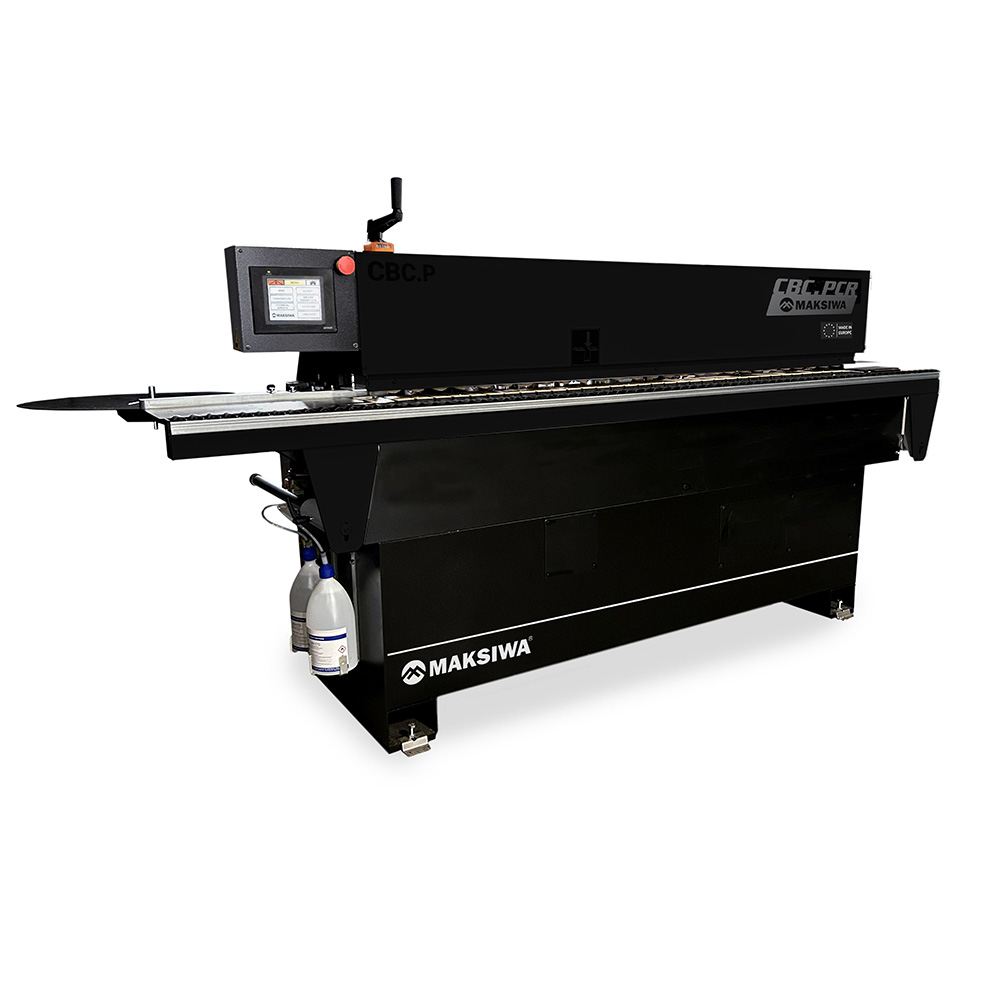

The Maksiwa CBC.PCR Automatic Edgebander delivers industrial-grade performance with the highly requested corner rounding feature. It also includes pre-milling, trimming, glue scraping, and buffing for a premium finish. The XMELT glue pot system supports EVA and PUR adhesives. With a 8HP motor and user-friendly PCL touchscreen, it handles edge tapes of 0.4-3mm and panel thicknesses from 10-50mm.Features:Edge Tape: 0.4-3 mmPanel Thickness: 8-50mm1 Phase 220V 60HzCorner Rounding UnitGlue Scraper UnitBuffing UnitEnd Trimming HF MotorPre-milling Unit 2 HF Motors with Diamond CuttersXMELT Glue Pot System (compatible w/ EVA and PUR Adhesives + easy drainage System)C.A.S.S – Cleaning Agent Spraying SystemGlue Pot Capacity 1.5kg | 3.3lbs Teflon CoatedAutomatic feeding Speed 18 ft/minConveyor Chain Feed System for optimum results.HF motors controlled by independent electronic convertersNet Weight 1411 Lbs | 640 kgsCompact DesignMelamine/PVC/ABS/PPSpecifications:Automatic Feeding speed: 18 ft/minPanel Thickness Min/Max: 21/64” – 1 31/32”Max Pre-milling Height: 1”Edgebanding Thickness: 0.0157″ – 0.118″Glue Pot Capacity: 3.3lbsMax Edgebanding Height: 2″Minimum Panel Width: 3″Minimum Panel Length: 7 7/8″Extendable Panel Support Rail Length: 103″Extension Table Max Width: 54″Size of Dust Collector Ports: 6″Minimum Dust Collection Requirements: 1236 CFMAir Pressure Requirement: 14 SCFM @ 87PSIEdgebanding Coil Support Diameter: 59″Recommend Glue Temperature Range: 356°F – 410°FMax. Machine Dimensions (LxWxH): 119”x 40 16/16”x 48. 7/16”Net Weight: 1411 LBSShipping Dimensions (LxWxH): 111” x 30” x 57”Glue Type: Granulated Hot-Melt EVA / PURElectrical Information: 1 Phase, 220V, 60Hz
Product Dimensions:
Length: 111.00 IN X Width: 30.00 IN X Height: 60.00 IN Weight: 1411.0000 LB
