The Maksiwa Automatic Edgebander TPM- 1 Ph- 220V is a essential addition to any workshop looking for Power Tools solutions.
Over $3,000 – Premium shop systems, lathes & CNC setups
Product Description

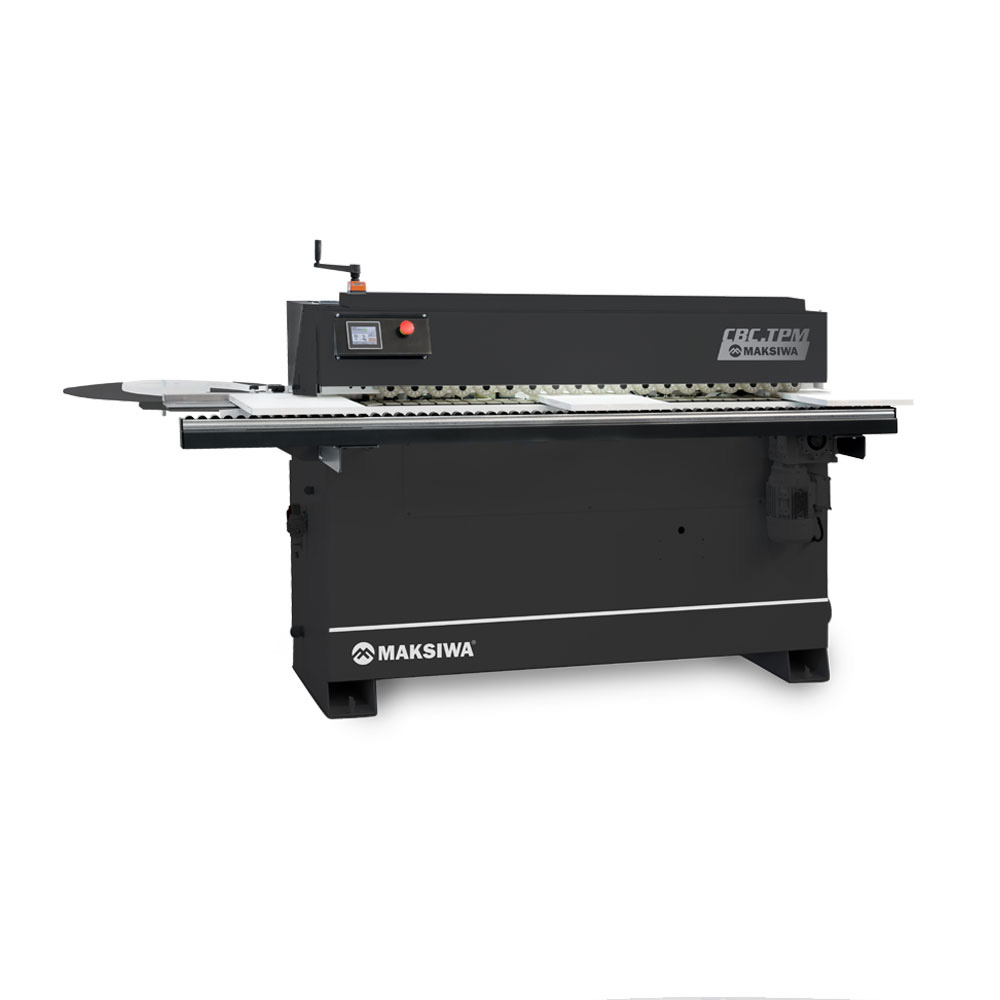

The Maksiwa CBC.TPM Automatic Edgebander combines precision and efficiency with a compact design, making it ideal for workshops with limited space. It features pre-milling, a gluing unit, a multi-function group for end trimming and top & bottom trimming, glue scraping, buffing, and vertical rounding for versatile performance. Equipped with touchscreen panel, this machine ensures ease of operation and delivers a flawless finish.Features:Edge Tape: 0.4-2 mmPanel Thickness: 10-45mm1 Phase 220V 60HzGlue Scraper UnitBuffing UnitEnd Trimming HF MotorPre-milling Unit 2 HF MotorsGlue Pot Capacity 0.5kg | 1lbs Teflon CoatedAutomatic feeding Speed 21 ft/minNet Weight 1911 Lbs | 540 kgsCompact DesignMelamine/PVC/ABS/PPSpecifications:Automatic Feeding Speed: 21 ft/minPanel Thickness Min/Max: 13/32” – 1 3/4”Max Pre-milling Height: 1″Edgebanding Thickness: 0.0157″ – 0.07″Glue Pot Capacity: 1lbsMax Edgebanding Height: 1″Minimum Panel Width: 1 3/4″Minimum Panel Length: 4 3/4″Extendable Panel Support Rail Length: 83 1/2″Extension Table Max Width: 10″Size of Dust Collector Ports: 6″Minimum Dust Collection Requirements: 1236 CFMAir Pressure Requirement: 14 SCFM @ 87PSIEdgebanding Coil Support Diameter: 59″Recommended Glue Temperature Range: 356°F – 410°FMax. Machine Dimensions (LxWxH): 93 1/2”x 40 13/16”x 53”Net weight: 1191 LBSShipping Dimensions (LxWxH): 91” x 30” x 57”Glue Type: Granulated Hot-Melt EVAElectrical Information: 1 Phase, 220V, 60Hz, 30 AmpsSound Rating: 80 Db
Product Dimensions:
Length: 111.00 IN X Width: 30.00 IN X Height: 60.00 IN Weight: 1191.0000 LB
Note: We do not display prices to ensure you always see the most current Woodcraft pricing upon click.
