Product Description

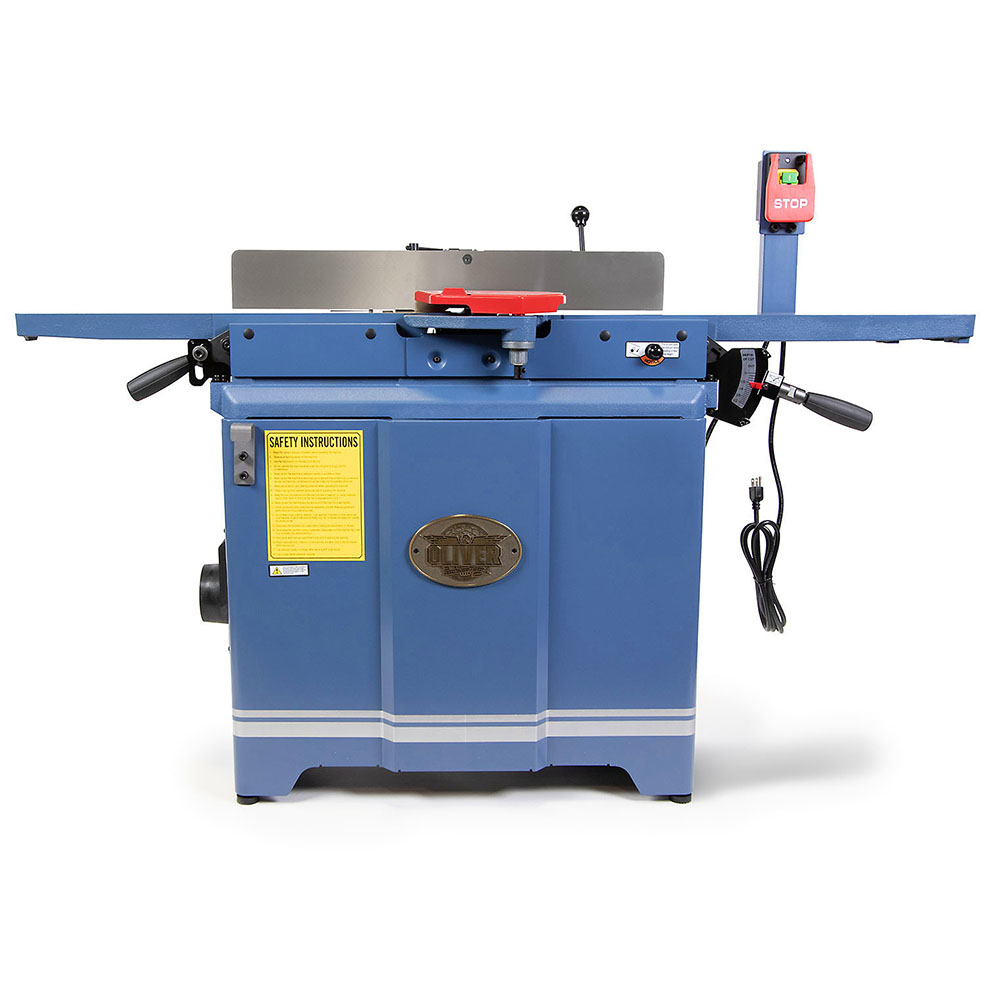

The Oliver 4235.230 8″ jointer is an excellent choice for those looking for additional cutting capacity. This refreshed model features an updated design with a conveniently relocated power switch and increased horsepower for enhanced performance. Equipped with Oliver’s true HCX Helical Cutterhead (not a linear spiral design) using 4-sided carbide inserts, it provides excellent cut quality and precision. This jointer has plenty of power, Oliver’s famous build quality, and is a stand-out in the 8″ jointer class.
Features: Extra-long precision ground tables provide a stable work surface. Parallelogram design provides smooth accurate cuts. Cast iron frame offers stable table support. Fully enclosed cabinet with 4″ port for superior dust management. Built-in mobile base with lockable wheels. Cabinet includes push pad storage. Oliver HCX Helical cutterheads with premium carbide inserts. 4-sided cutting inserts are indexed and easy to replace. Lever controlled infeed and outfeed table adjustment allows quick set-up. Long precision ground fence tilts up to 135deg with positive stops at 45deg and 90deg. Easy to read depth of cut gauge. Large, lockablepedestal mountedpaddleon/offswitch for added safety. Powerful TEFC 3HP single-phase motor. Poly V-belt drive efficiently delivers power to the cutter head. CSA Listed.
Specifications: Model Number: 4235.230 Stock Number: 4235.230 (3HP.1PH, Helical) Infeed Table Travel: 1/2″ Cutterhead Speed: 5,500 RPM Number of Knives (helical): 36 inserts Maximum Depth of Cut: 1/8″ Rabbeting Capacity: 1/2″ Dust Port Diameter: 4″ Table Dimensions: 72″ L x 8″ W Table Height: 31-1/2″ Fence Dimensions: 38″ x 5″ Fence Tilts: 90deg, 45deg, 135deg Positive Stops: 90deg and 45deg Motor 1Ph: 3HP – 230V, 1PH, 8A (NEMA 6-15 plug style) Net Weight: 352 lbs Gross Weight: 490 lbs
What’s Included: (1) Oliver 4235.230 8″ jointer (10) Torx screws for inserts (1) Box of 5 cutterhead inserts (2) Push Blocks
Product Dimensions:
Length: 76.00 IN X Width: 25.00 IN X Height: 41.00 IN Weight: 352.0000 LB
