Product Description

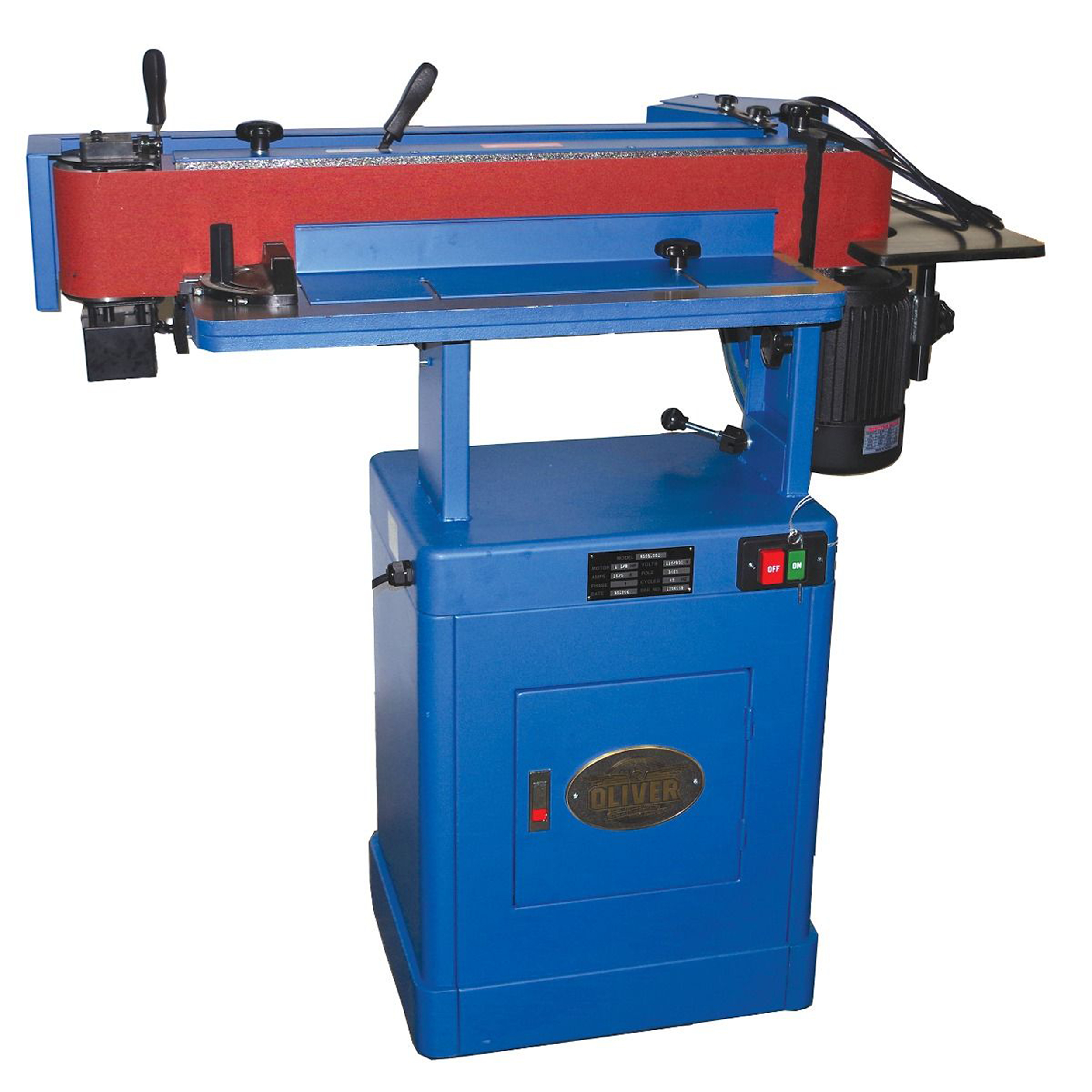

Oliver Machinery 6303 belt sander can be operated in the horizontal or vertical position or any angle between 0° and 90°. Providing a 1/2″ oscillation stroke allows for a better work-piece finish and extends the belt life. The precision ground platen feature a graphite cover that reduces heat and also extends the life of the 6″ x 89″ sanding belt. Belt tracking and replacement is easy to perform with convenient controls. An end table is included for contour sanding.Features6” x 89” belt features oscillation action for a superior finish.Belt operates at any angle between horizontal and vertical.Easy belt changing and tracking adjustments.Steel platen is graphite covered for reduced friction.Contoured sanding possible with end table in place.Tables are heavy cast iron and precision ground.Tables adjust up and down for complete use of belt.Main table slotted and includes a miter gauge.Table fence included to assist in operation.Heavy duty enclosed cabinet features a storage area.Lockable on/off switch.Powerful TEFC 1.5HP single phase motor.SpecificationsModel Number: 6303Stock Number: 6903.001Table Material: Cast IronMain Table Size: 10” x 29-1/2”End Table Size: 9-3/4” x 11-3/4”Main Table Working Height: 38” – 41-1/2”End Table Working Height: 37-1/2” – 42”Belt Size: 6” x 89”Belt Speed: 3,900 FPMOscillation Stroke: 1/2”Fence Size: 3” x 23-1/2”Dust Port Diameter: 4″Minimum CFM Required: 650 CFMMotor: 1.5HP 115/230V 1Ph Prewired 115V w/Plug (18/9 Amp)Overall Dimensions: 48” x 23” x 48”Net Weight: 257 lbs.Gross Weight: 273 lbs.
For current pricing, click “Get Details”
