Product Description
The Multi-Tip Revolving Live Center is a multipurpose live center designed to perform many applications. The precision machined premium alloy steel body has been heat treated and nickel plated. A 5/8″ diameter cup center, with a removable center point, is located in the end of the live center. The exterior of the 5/8″ cup center is threaded (3/4″-10 TPI) to accept either the bull nose cone center or the full point cone center. The bull nose and full point cone centers give you the ability to self-center any work up to 3-1/4″ diameter. The large bull nose cone can be reversed, permitting self-centering of round or square spindles up to 3″. This set comes with #2 MT Live Center, Center Point, Bull Nose Cone, Full Point Cone, and Knock Out Rod.
Features: #2 MT live center has precision machined premium alloy steel body 5/8″ diameter cup center has removable center point Includes both bull nose and full point cones for self-centering Reversible bull nose cone allows self-centering round or square spindles
Specifications: Nickel plated

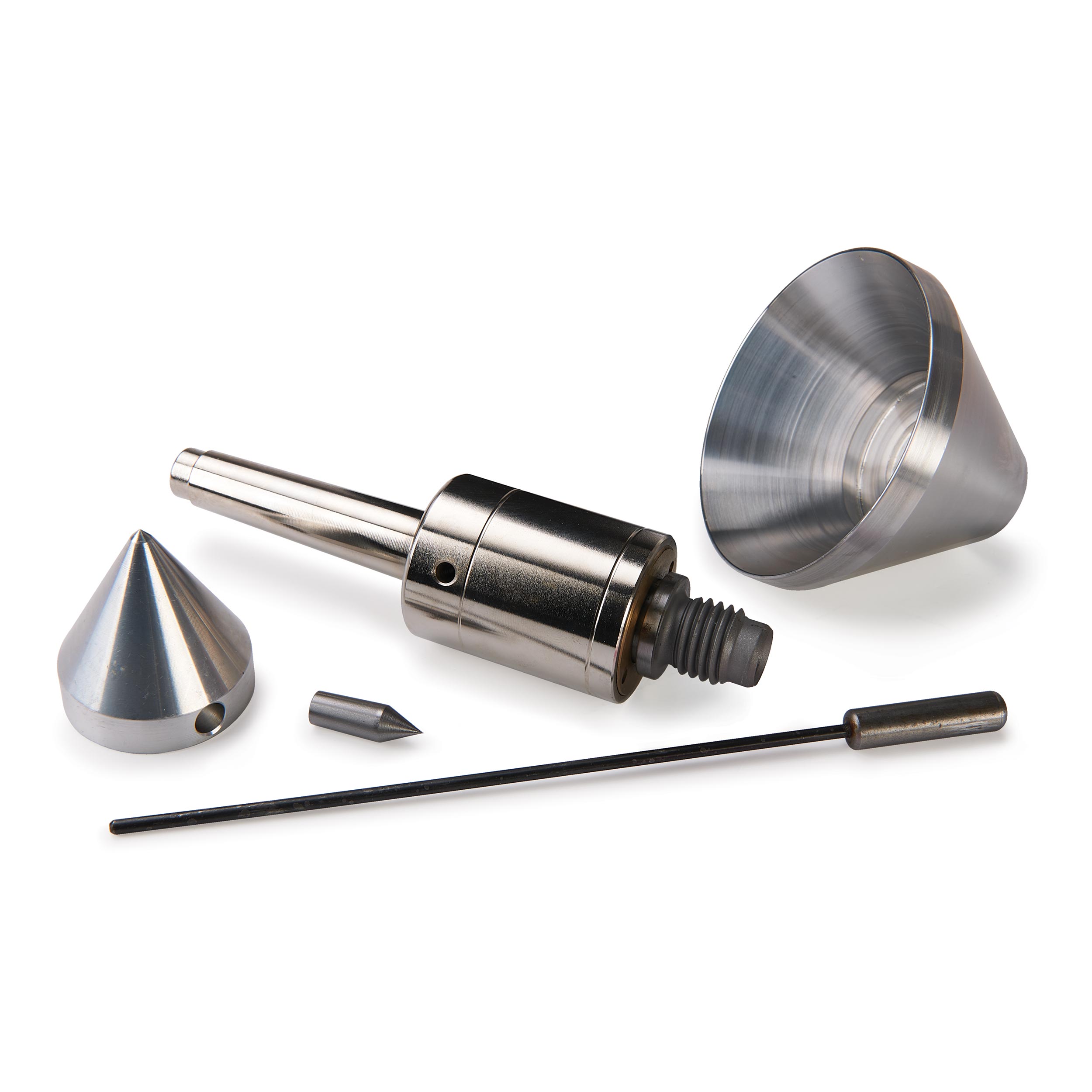

What’s Included: (1) #2 Morse Taper Live Center (1)Center Point (1) Bull Nose Cone (1) Full Point Cone (1) Knock Out Rod
