Product Description

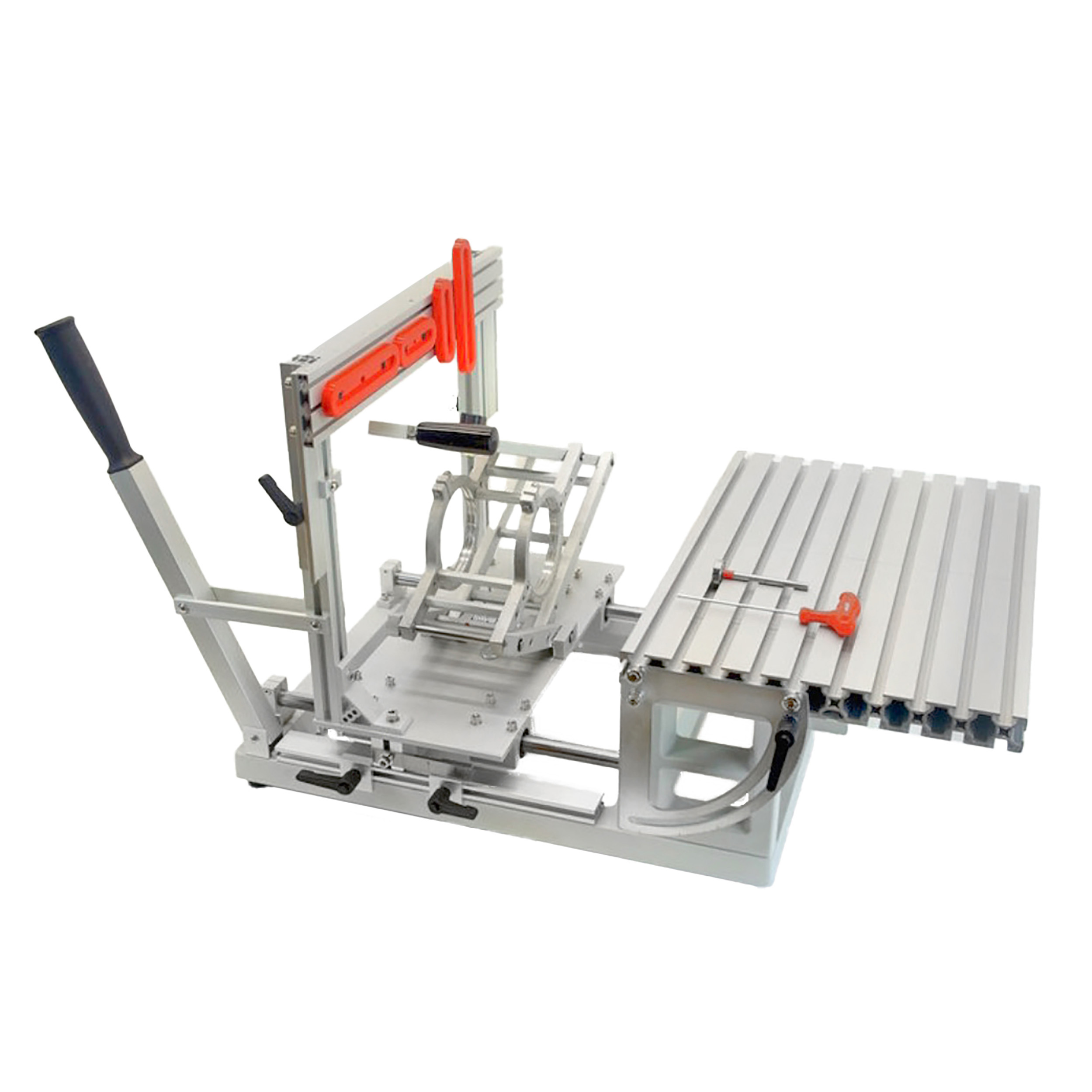

This Base Model PantoRouter is meant for manufacturing facilities where it will be set-up for one very specific job and will not be used for different kinds of joinery. The basic model does not include a router, dust collection hood or hose, bits, centering scale fence or table clamps. The base model PantoRouter does contain two sets of mortise and tenon templates, box joint templates and dovetail templates, plus guide bearings and centering jigs. The PantoRouter is manufactured for the North America market with tilting table and 3.5″ diameter router mount. The ideal router for the PantoRouter is the 110V, Bosch 1617 EVS router. This model is for those who already have a PantoRouter with accessories to be shared with this basic or for those factories with a specific task for the PantoRouter
Specifications: A router with 3.5″ diameter body must be supplied by the customer One box per Basic Model PantoRouter shipment Assembled footprint – 27″x20″x17″ Cut capacity – 8″x4″ Cut depth is determined by length of router bit No limit to length or width of workpiece as long as it’s supported and can be clamped to the PantoRouter table
What’s Included: PantoRouter kit with tilting-table Horizontal and vertical mortise and tenon templates (1″, 1-1/2″, 2″, 2-1/2″ & 3″ Horizontal plus 1-1/2″ and 2-1/2″ Vertical) Template Holder (TEM-HOLDER) 22mm guide bearing with 6mm shaft (GB-22) 15mm guide bearing with 6mm shaft (GB-15) 12mm guide bearing with 6mm shaft (GB-12) 10mm guide bearing with 6mm shaft (GB-10) Segmented box joint templates Variably Spaced dovetail templates Thickness Gage Depth Stopper with inch and mm scales The Basic PantoRouter does not include the Router, Centering Scale Fence, Clamps, Dust Collection hood or hose.
For current pricing, click “Get Details”
