Product Description

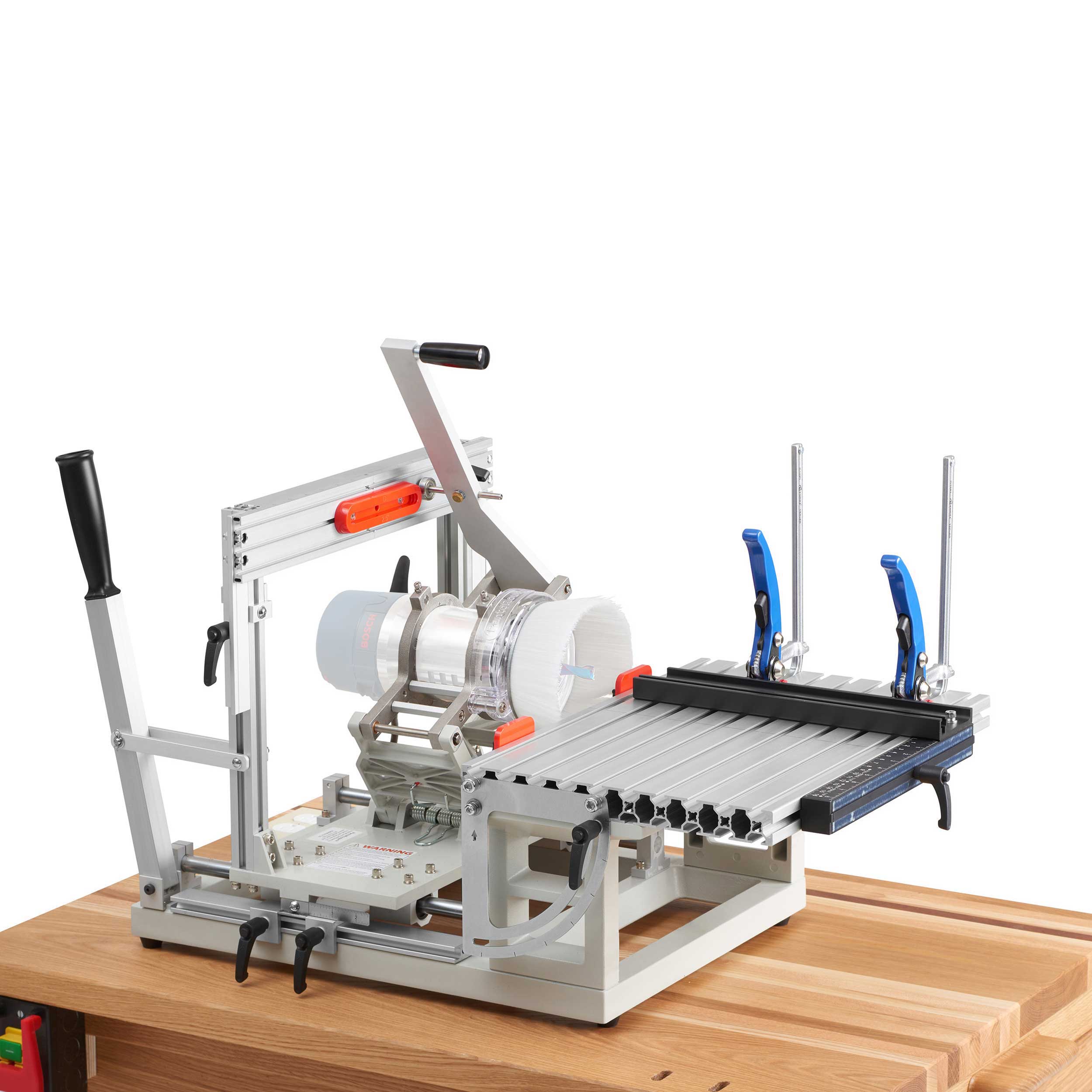

The “Pro-Pack” package includes the Tilting Table PantoRouter woodworking machine and the essential templates, guide bearings and router bits needed to make Mortise and Tenon, Box Joints, and Dovetails. We include the Dust Collection Hood, the Centering-Scale Fence and two Lever Clamps. This package does not include a router. We recommend the customer provides a Bosch 1617 EVS router for the PantoRouter to operate at full potential.
Features: This package DOES NOT include the recommended Bosch 1617EVS router 21 mortise and tenon sizes plus box joint and variably spaced dovetails Four carbide bits Clamps, fence, and limited accessories Superior dust collection allows bit changes without removing the router Center the workpiece without measuring Patented tapered templates for a perfect fit in minutes Set-up to glue-up in under 5-minutes
Specifications: A router with 3.5″ diameter body must be supplied by the customer Two boxes per PantoRouter shipment Box 1 – 32″x22″x9″, 47lbs Box 2 – 13″x13″x12″, 12lbs Assembled footprint – 27″x20″x17″ Dust port/hose diameter – 11/2″ Cut capacity – 8″x4″ Cut depth is determined by length of router bit No limit to length or width of workpiece as long as it’s supported and can be clamped to the PantoRouter table.
What’s Included: The recommended Bosch model 1617EVS is NOT included Dust Collection Hood Dust Collection Hose – 5ft Centering Scale Fence Set of five horizontal mortise and tenon templates 1″, 1-1/2″, 2″, 2-1/2″ & 3″ Set of two vertical mortise and tenon templates 1-1/2″ and 2-1/2″ Aluminum Template Holder 10mm Guide Bearing with 6mm shaft (GB-10) 12mm Guide Bearing with 6mm shaft (GB-12) 15mm Guide Bearing with 6mm shaft (GB-15) 22mm Guide Bearing with 6mm shaft (GB-22) Table Front Fences Split Shaft Centering jig Amana 1/2″ solid carbide spiral up-cut router bit Amana 3/8″ solid carbide spiral up-cut router bit Amana 1/4″ solid carbide spiral up-cut router bit Amana 8deg X 1/2″ Carbide Tipped Dovetail Bit Segmented Box Joint Templates Variable Space Dovetail Templates Thickness Gauge Depth Stop Two T-Track Lever Clamps
For current pricing, click “Get Details”
