Product Description

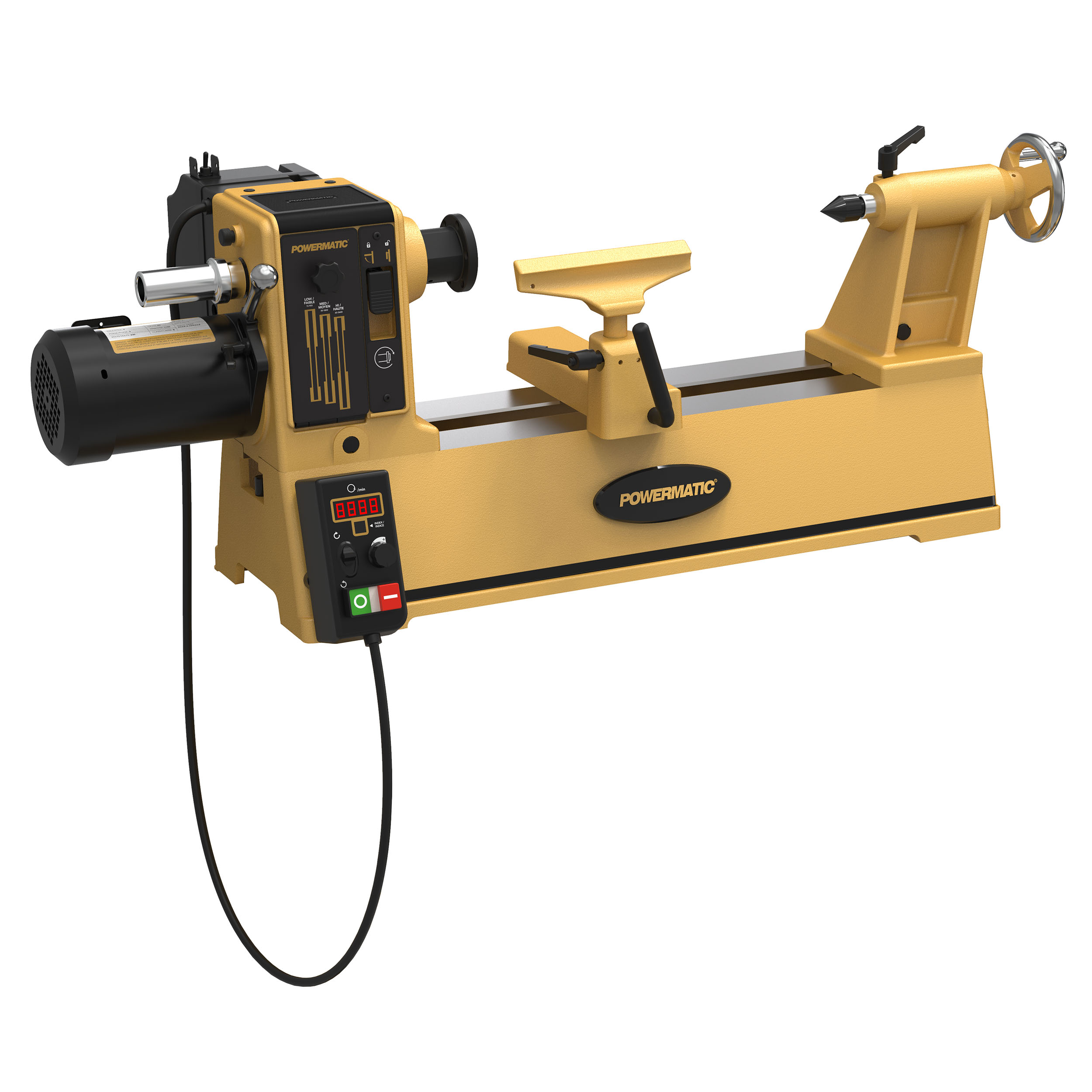

The Powermatic PM2014 Lathe was designed with turners in mind. The smaller stance is ideal for those with smaller shops, and it disassembles for easy transport to turning shows or other events.Plug it into a standard 115V outlet (15 amp circuit recommended), and get 230V of output through the inverter in the motor. The inverter also works to maintain consistent torque when in use.From spindles and table legs to bowls and other hollow forms, the PM2014 is a steadfast, capable performer. The 1 HP motor can turn large work within three variable speed ranges: 15-900 RPM, 30-1,800 RPM and 60-3,600 RPM. The magnetic control box clearly displays your spindle speed (and indexing positions), and is magnetically mounted so you can easily move it to suit your turning operation. The 24 position locking indexing positions let you locate repeated features, such as flutes and inlays, around the perimeter of the turning.
Features: Motor only requires a 115 volt single phase input to provide a consistent torque with 1HP/230 volt/3-phase output, using an inverter Magnetic control box displays both digital speed and indexing and can be relocated for convenience and safety 24 positive locking indexing position, displayed on the repositionable magnetic control box, simplifies the indexing process Sliding headstock and removable tailstock make outboard turning easy Cast-iron bed reduces motor vibration for decreased noise and added precision Three variable speed ranges: 15-900 RPM, 30-1,800 RPM and 60-3,600 RPM With constant monitoring of the motor, the inverter keeps torque consistent Lathe easily disassembles for better transport Acme threads on tailstock for smoother operation and longevity Attached tool caddy allows convenient access to centers, wrenches, and accessories Banjo features a non-marring, pinch style clamp for solid tool rest placement Chrome trimmed hand wheels are ergonomic for a comfortable feel Main power disconnect on rear of headstock lock out for safety
Specifications: Motor: 1 HP, 3 PH, 230V, 60 HZ Input Power Requirement: 1 PH, 120V Recommended Circuit: 15 Amp Speed Range: 15-3,600 RPM Spindle Thread: 1-1/4″ x 8 TPI Spindle/Quill Taper: MT2 Index Positions: 24 positive locking Swing Over Bed: 14-1/4″ Swing Over Tool Rest Base: 10-3/4″ Distance Between Centers: 19-1/4″ Bed Gap: 1-3/4″ Tool Rest: 1″ D post x 8″ W Overall Dimensions: 52″ x 24″ x 18″ Shipping Dimensions: 34.25″ x 18.9″ x 22.83″ Shipping Weight: 206 lbs.
What’s Included: (1) Powermatic PM 2014 Lathe (1 HP – 115V) (1) 3″ Faceplate (1) Live cone center (1) Spur center (1) Tool caddy
Notes: For outboard turning, slide the tailstock off and slide the headstock to the end of the machine. An optional 13″ bed extension is available (#172525, sold separately). Stand not included.
