Product Description

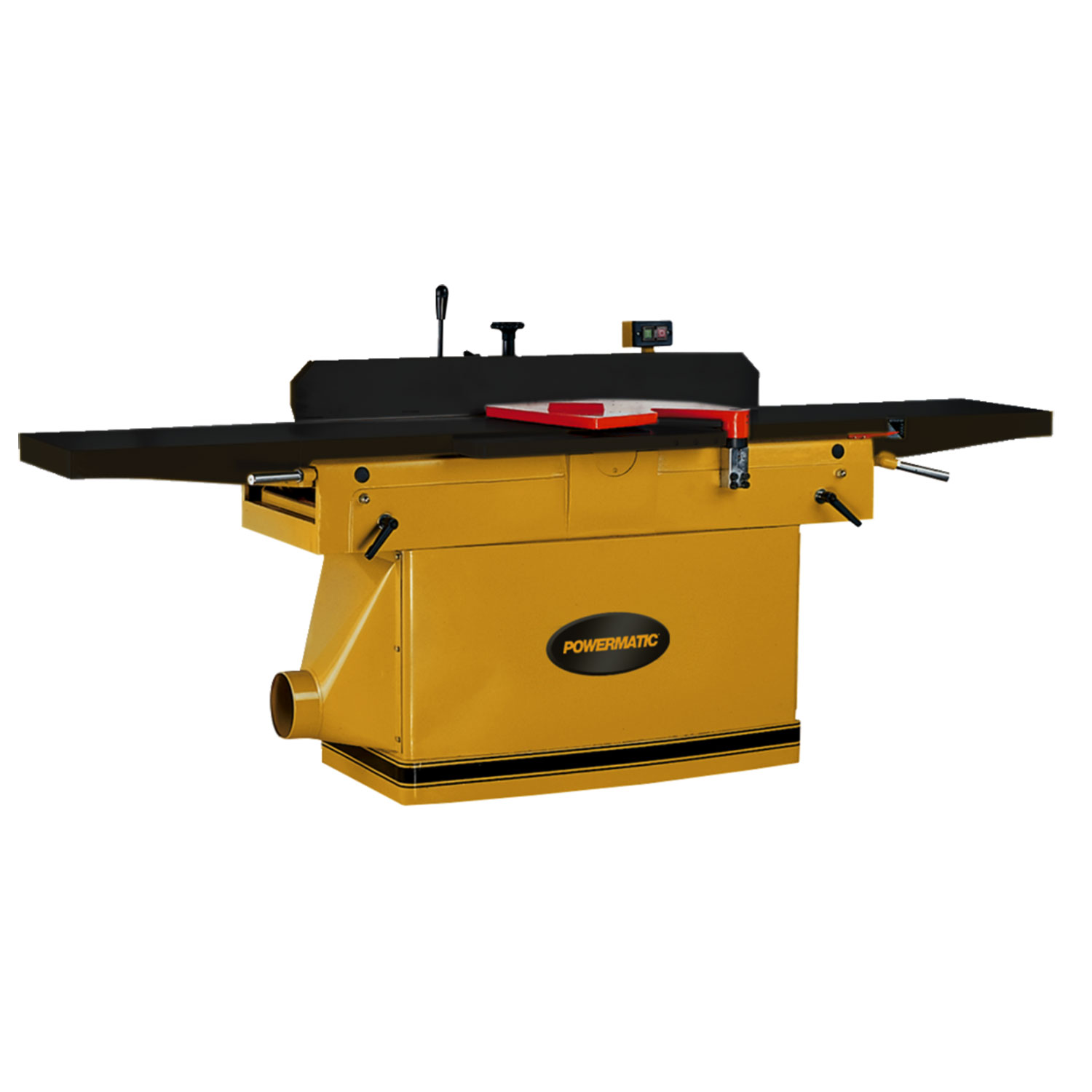

16″ Jointer – 7-1/2 HP 3 PH 230V HH, ArmorGlide- Model PJ1696T, now features ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ1696T 16″ jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45deg in and out, and a positive stop for perfect 90deg angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2HP motor delivers all the power you need for even the biggest jobs. Due to size of machine, Dock Delivery is required.
Features: ArmorGlide Technology gives you a low-friction, industrial-grade coating Rust resistant Less maintenance More control Full size rabbeting table supports large work pieces for rabbets up to 3/4″ deep Cast iron fence bevel controls with positive stops at 45 degrees and 90 degrees Helical cutterhead with 58 two-sided knife inserts reduces noise, eliminates adjustments, and speeds knife change Large 16″ x 96″ precision ground cast iron table surface for maximum support and fine finish Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support Due to weight and measurements, Model PJ1696T 16″ Jointer is Dock Delivery Required for delivery
Specifications: Product: 16″ Jointer Type: Helical Head with 44 – 4 sided inserts Style: Floor Standing Model Motor Power: 7-1/2 HP Motor Phase: 3 PH Voltage: 230V Cycle: 60 Hz Cutterhead Speed: 5200 Cutting Capacity (W x D): 16 -3/4″ x 3/4″ Cuts Per Minute: 20,800 Cutterhead Diameter: 4″ Number of Knives: 58 – 4 sided Infeed Table Length: 47-1/2″ Dust Port: 4″ Dust Collection Minimum CFM: 800 Net Weight: 1280 Ship Weight: 1400 lbs.
What’s Included: (1)Powermatic – 16″ Parallelogram Jointer with ArmorGlide – Helical Cutterhead – 7-1/2 HP 3 PH 230V – PJ1696T
