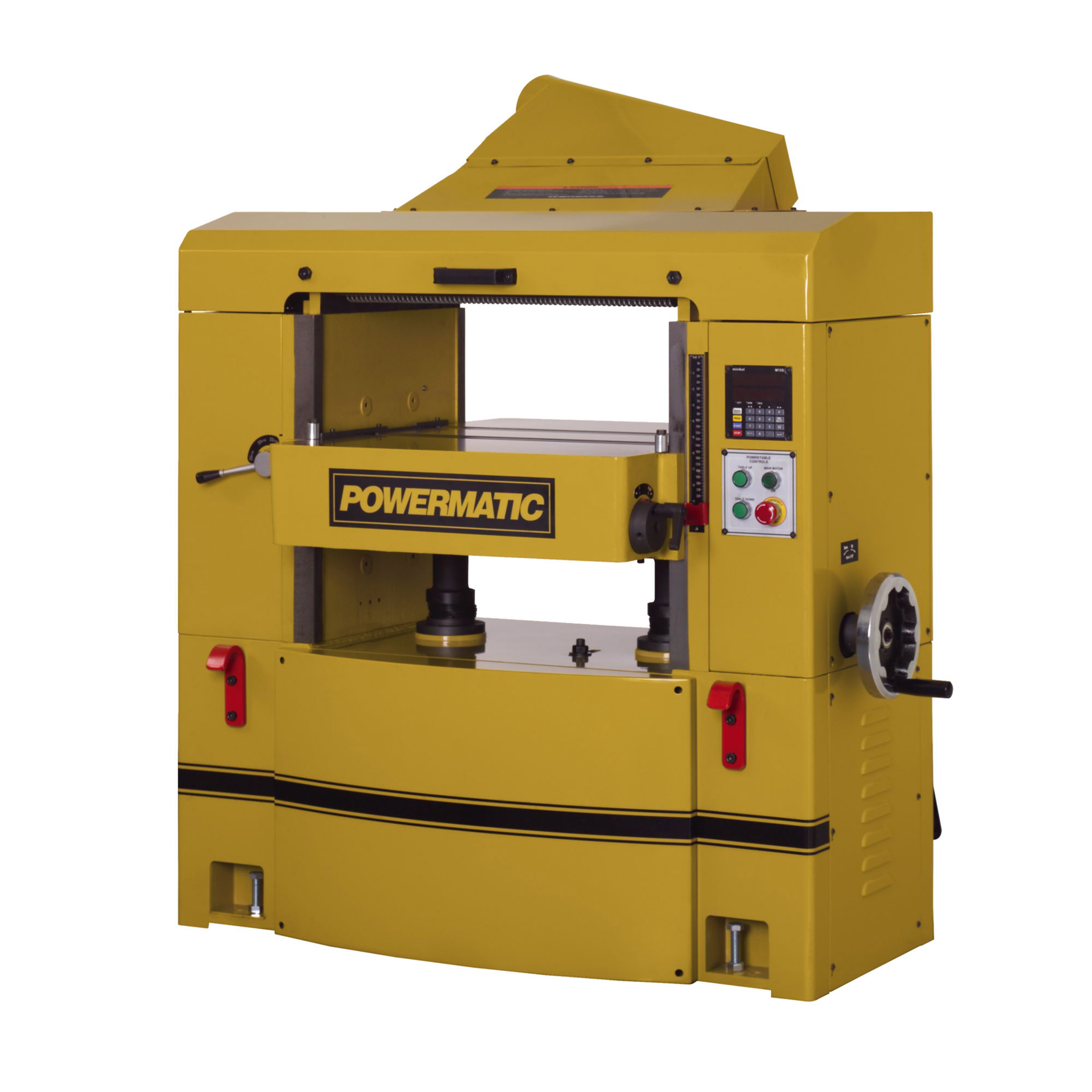

Product Description
Solid steel helical insert head with four-sided carbide insert tooling, eliminates need for adjustment after changing knives, reduces sound levelsDigital readout and simple PC controller make quick and easy table height set upsSegmented serrated infeed roll with segmented chip breakers has 1/4″ independent yield, for planing multiple height stockMassive gear box maintains positive feed by using a large chain drive with automatic chain tensioners, to power infeed and outfeed rollers3″ diameter infeed and outfeed rollers are supported by four large, sealed, needle bearings for long lifeQuick-Set micro-adjustable lever easily raises and lowers table rollers from 0″ to 0.050″ at a touchFrame machined from heavy cast iron and extra wide side panels with gibs, offers rigid bed support and accurate alignmentSolid pressure bar has wide foot for long wear and can be adjusted on both ends for precise feeding3 speed feed selector allows you to quickly change feed ratesLarge 32-3/16 x 26 precision-ground table contains two adjustable table rollers for smooth feeding of uneven stockDust hood features built-in 5″ dust chute for efficient dust collectionHelical head with four sided insertsDust hood with 5″ diameter dust portSegmented infeed rollersSegmented chip breakersTool kit with pneumatic screwdriver for removing the cutterhead insert bladesBed Rollers Adjustable from Front : 0″ to 0.05″ Column Diameter (in) : 2-1/2 Cuts Per Minute : 30000 Cutterhead Diameter (in) : 3-3/8 Cutterhead Speed (RPM) : 5000 Dust Collection Minimum CFM Required : 600 Dust Port Diameter (OD/in) : 5 Feed Rate (FPM) : 30-25-20 Height (in): 59Length (in): 52Maximum Depth of Cut (in) : 1/4 Maximum Full Width Depth of Cut (in) : 1/8 Maximum Height of Rollers Parallel to Tabletop (in) : 0.05″ Maximum Planing Thickness (in) : 9 Maximum Planing Width (in) : 25 Minimum Planing Length (in) : 10 Model Number : WP2510 Motor HP : 15HP Motor Phase : 3Ph Motor Voltage : 230/460V Net Weight (lb): 1,725Number of Knives : 168 Four-sided inserts Outfeed Roller Diameter (in) : 3 Overall Dimensions : 52 x 36 x 59 Part Number : 1791303 Prewired : Prewired 230V Readout Scale : in/mm Rollers (in) : (1) infeed, (2) outfeed Rotation (Forward/Reverse) : Fwd only Segmented Infeed Roller Diameter (in) : 3 Table Height Adjust Manual : 1 handwheel revolution = 1/32″ Table Size (in) : 32-3/16 x 26 Table Support : 2 column Tool Supplied : tool kit Width (in): 36Shipping weight 1,850 lb.
