Product Description

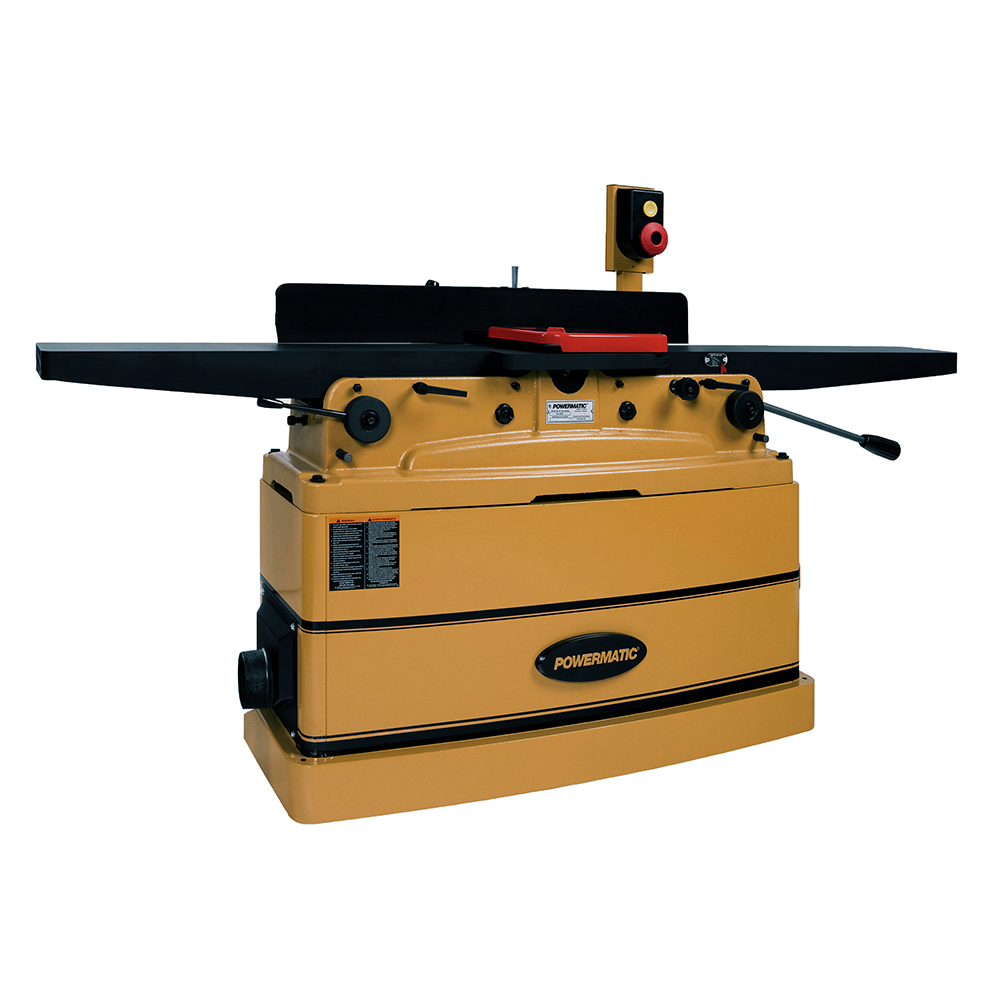

8″ Jointer 2 HP 1 PH 230V HH, ArmorGlide – PJ-882HHT, now features ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ-882HHT 8″ Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four sided knife inserts – these produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed. The Jointer has an extra long 82″ bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also insures the table remains perfectly parallel, even after years of heavy use. The 2HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.
Features: ArmorGlide Technology is a low-friction, industrial-grade coating on the work surface Rust resistant Less maintenance More control High-mount switch for operator convenience Large 8″ x 82″ precision ground cast iron table surface for heavy-duty work Parallelogram design allows for easy and accurate adjustment of tables Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments Patented handwheel with worm gear system for precise fence tilting Helical Head
Specifications: Product: 8″ Jointer Type: Helical Head with 54 – 4 sided inserts Style: Floor Standing Model Motor Power: 2 HP Motor Phase: Single 1 PH Voltage: 230V Cycle: 60 Hz Amps: 9A Cutterhead Speed: 7000 RPM Cutterhead Diameter: 3-1/16″ Cutting Capacity (W x D): 8″ x 1/2″ Number of Inserts: 54 – 4 sided Jointer Table Size (L x H): Dust Collection Minimum CFM Required: 450 Dust Collection Port: 4″ Infeed Table Length: 44″ Recommended Circuit Size: 20A Net Weight: 610 lbs. Ship Weight: 744 lbs.
What’s Included: (1)Powermatic – 8″ Parallelogram Jointer with ArmorGlide – Helical Cutterhead – 2 HP 1 PH 230V – PJ-882HHT
