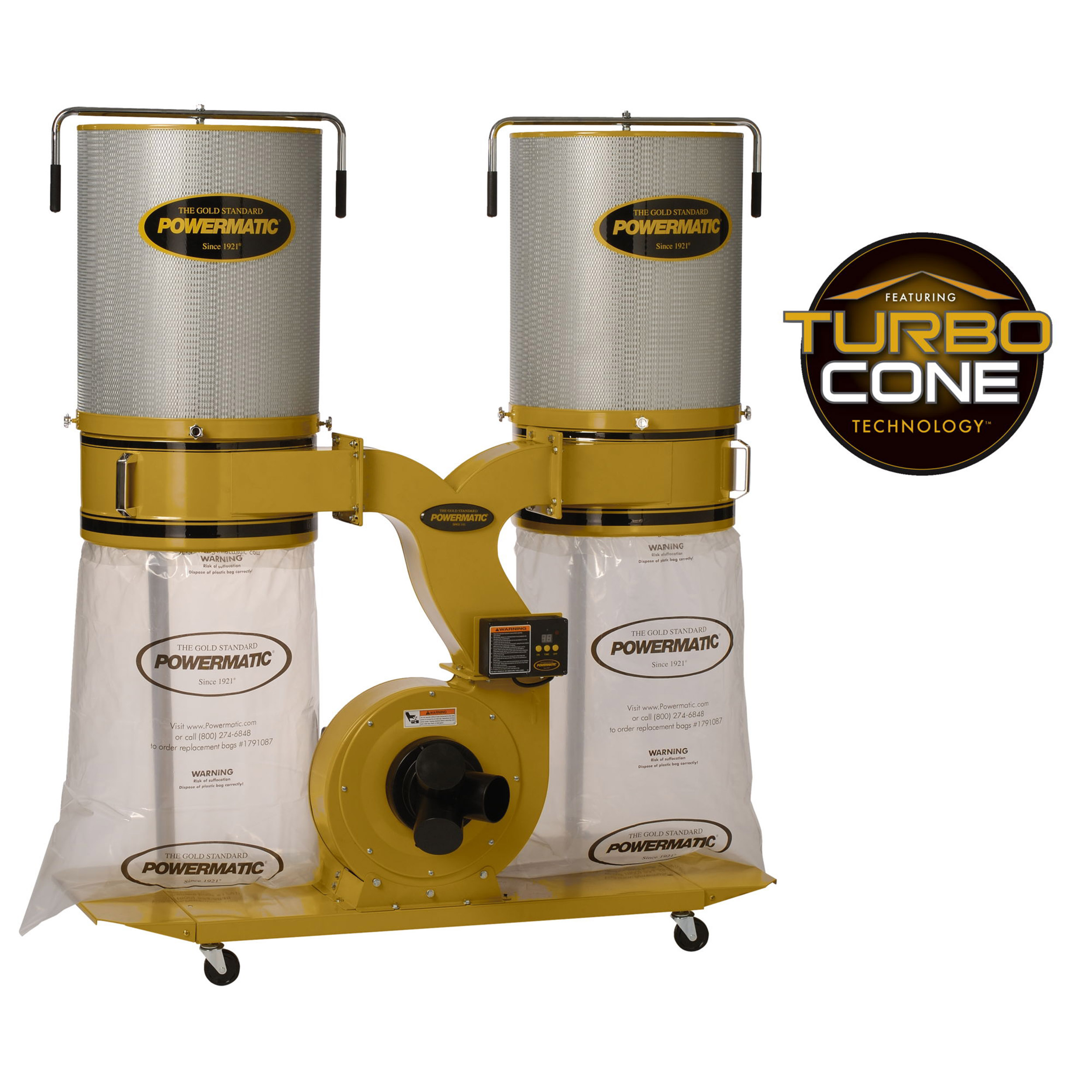

Product Description
Performance: Only fine particles move to the filter chamber making manual cleaning easier and decreasing health concernsPrevention: Prevents the central airflow from floating chips into the filter chamber decreasing rapid performance drop due to premature cloggingEfficiency: Chips are better contained for increased packing density requiring fewer collection bag changes
Features: TurboCone improves chip separation and collector bag packing efficiencyThe cone eliminates premature filter clogging for sustained performanceRemote-controlled digital timer can be programmed for up to 99 minutesAll-metal duct construction for rigidity and improved air flow2-micron canister filters offer over six times filtering surface area of standard bagsThe large impeller is powered by a 3HP motor for peak performanceTriple 4” dust ports allow for several hoses to be attached at the same timeCollection bags use a snap ring for rapid installation/removal10 cubic feet collection bag capacity reduces number of bag changes.Tall filter bags require less cleaning due to the larger surface areaFour swivel casters for shop maneuverability
Specifications: Length : 46 inchModel Number: 1792072KOverall Dimensions: 61″ x 30″ x 72″ Height: 45″ Width: 23″ Length: 46″ Net Weight: 268 lbsRemote Control: Yes Sound Rating: 75-90 dB 1-Hose Connection Diameter: 8″ 2-Hoses Connection Diameter: 4″ 3-Hoses Connection Diameter: 4″ Bag Diameter: 20″ Filter Bag/Canister Length: 26″ Collection Bag Capacity: 10 cubic foot Collection Bag Length: 30″ Air Flow @ 4″: 236 cu.ft/min Air Flow @ 8″: 1,782 cu.ft/min Static Pressure: 11.31 inch of water Particle Size (Micron): 98% of 2 micron particles 86% of 1 micron particles Velocity @ 4″: 5,200 foot per minute Air Inlet: (1) at 8″ or (3) at 4″ Impeller Diameter: 14″ Impeller Fins: 7 Impeller Material: Steel Separator Tank Diameter: 20″ Separator Tank Height: 10″ Motor Power: 3 HP Motor Phase: 1 Ph Motor Voltage: 230V Prewired Voltage: 230V Motor Current: 15A
For current pricing, click “Get Details”
