Product Description

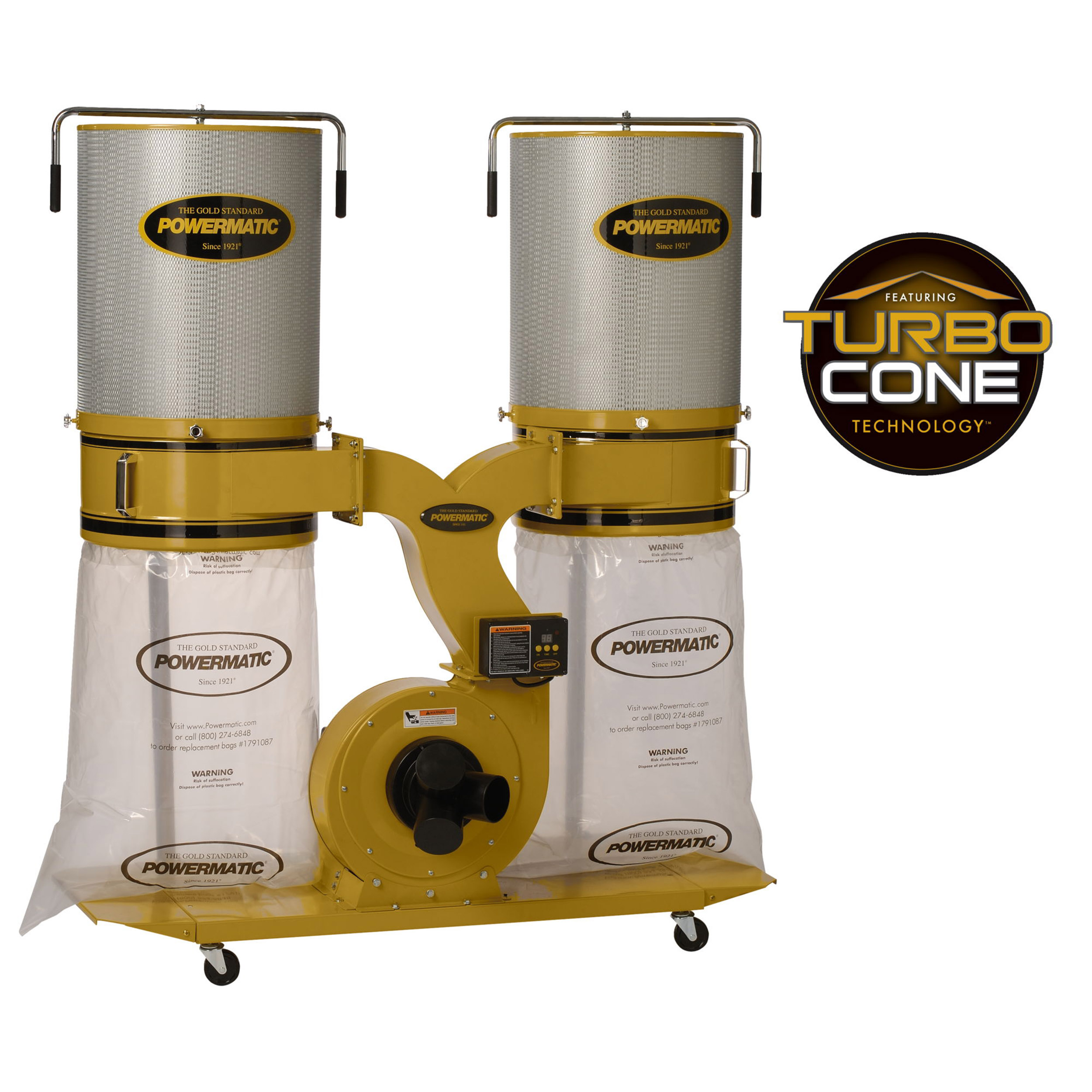

The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone™ improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.Performance: Only fine particles move to the filter chamber making manual cleaning easier and decreasing health concernsPrevention: Prevents the central airflow from floating chips into the filter chamber decreasing rapid performance drop due to premature cloggingEfficiency: Chips are better contained for increased packing density requiring fewer collection bag changes
Features: TurboCone improves chip separation and collector bag packing efficiencyThe cone eliminates premature filter clogging for sustained performanceAll-metal duct construction for rigidity and improved air flow2-micron canister filters offer over six times filtering surface area of standard bagsThe large impeller is powered by a 3HP motor for peak performanceTriple 4” dust ports allow for several hoses to be attached at the same timeCollection bags use a snap ring for rapid installation/removal10 cubic feet collection bag capacity reduces number of bag changes.Four swivel casters for shop maneuverability
Specifications: Length : 46 inchModel Number: 1792074KOverall Dimensions: 61″ x 30″ x 72″ Height: 45″ Width: 23″ Length: 46″ Net Weight: 264 lbsRemote Control: No Sound Rating: 75-90 dB 1-Hose Connection Diameter: 8″ 2-Hoses Connection Diameter: 4″ 3-Hoses Connection Diameter: 4″ Bag Diameter: 20″ Filter Bag/Canister Length: 26″ Collection Bag Capacity: 10 cubic foot Collection Bag Length: 30″ Air Flow @ 4″: 236 cu.ft/min Air Flow @ 8″: 1,782 cu.ft/min Static Pressure: 11.31 inch of water Particle Size (Micron): 86% of 1 micron Velocity @ 4″: 5,200 foot per minute Air Inlet: (1) at 8″ or (3) at 4″ Impeller Diameter: 14″ Impeller Fins: 7 Impeller Material: Steel Separator Tank Diameter: 20″ Separator Tank Height: 10″ Motor Power: 3 HP Motor Phase: 3 Ph Motor Voltage: 230/460V Prewired Voltage: 230V
