Product Description

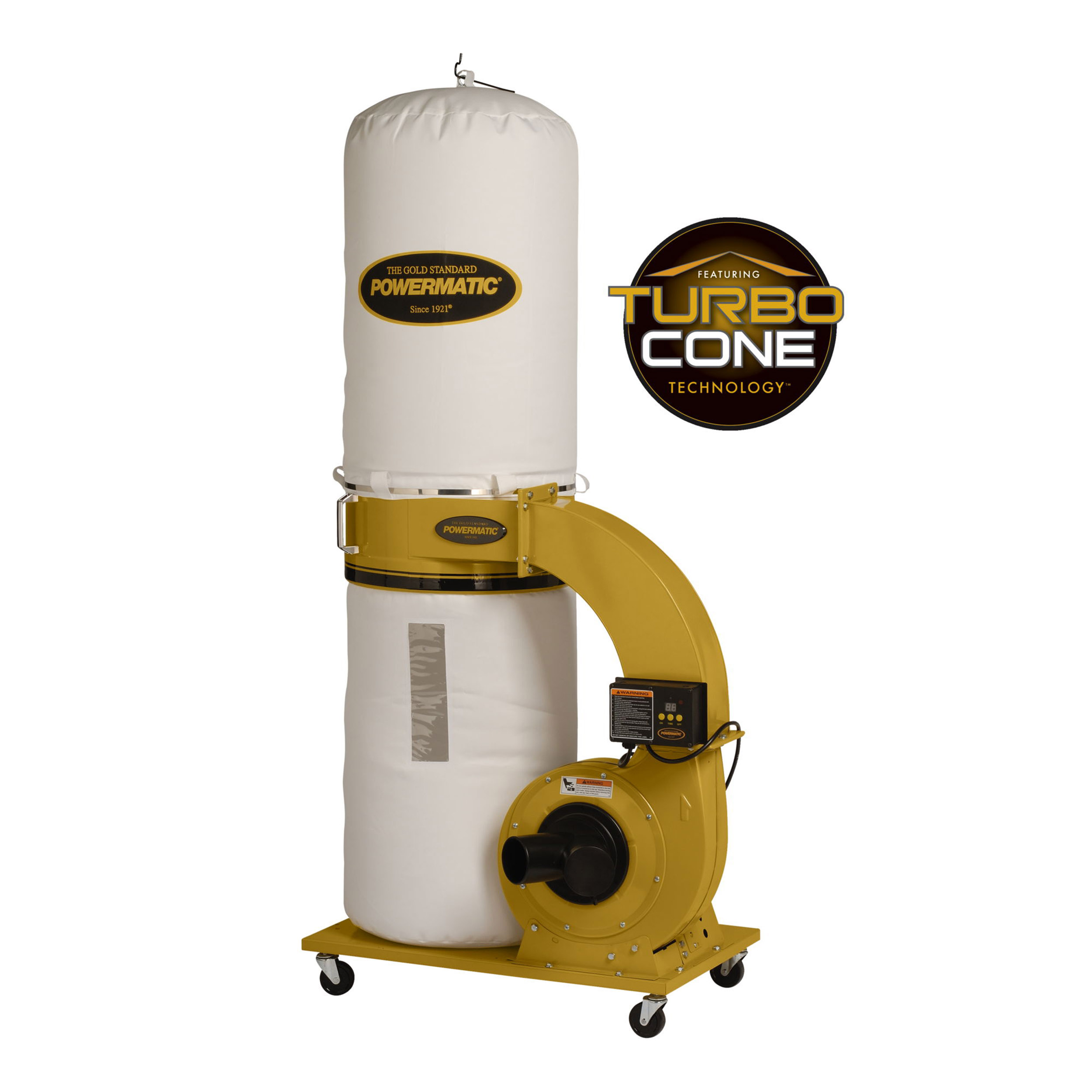

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.Performance: Only fine particles move to the filter chamber making manual cleaning easier and decreasing health concernsPrevention: Prevents the central airflow from floating chips into the filter chamber decreasing rapid performance drop due to premature cloggingEfficiency: Chips are better contained for increased packing density requiring fewer collection bag changes
Features: • TurboCone improves chip separation and collector bag packing efficiency• The cone eliminates premature filter clogging for sustained performance• Remote-controlled digital timer can be programmed for up to 99 minutes• All-metal duct construction for rigidity and improved air flow• Dual 4″ dust ports for simultaneous collection from two machines• 1-3/4HP motor offers plenty of power for effective air movement• Cloth collection bag with view window uses snap ring for rapid installation/removal• 10 cubic feet capacity collection bag reduces number of bag changes.• Tall filter bag requires less cleaning due to the larger surface area• Four swivel casters for shop maneuverabilty• Length : 45 inch• Model Number: 1791078K
Specifications: Overall Dimensions: 37″ x 29″ x 79″Height: 23″ Width: 23″ Length: 45″ Net Weight: 127 lbsRemote Control: Yes Sound Rating: 75-90 dB 1-Hose Connection Diameter: 6″ 2-Hoses Connection Diameter: 4″ Bag Diameter: 20″ Filter Bag/Canister Length: 48″ Collection Bag Capacity: 10 cubic foot Collection Bag Length: 30″ Air Flow @ 6″: 1,064 cu.ft/min Static Pressure: 11.31 inch of water Particle Size (Micron): 96% of 30 micron particles Velocity @ 6″: 5,374 foot per minute Air Inlet: (1) at 6″ or (2) at 4″ Impeller Diameter: 12″ Impeller Fins: 6 Impeller Material: steel Separator Tank Diameter: 20″ Separator Tank Height: 10″ Motor Power: 1-3/4 HP Motor Phase: 1 Ph Motor Voltage: 115/230V Prewired Voltage: 115V Motor Current: 15/7.5A
