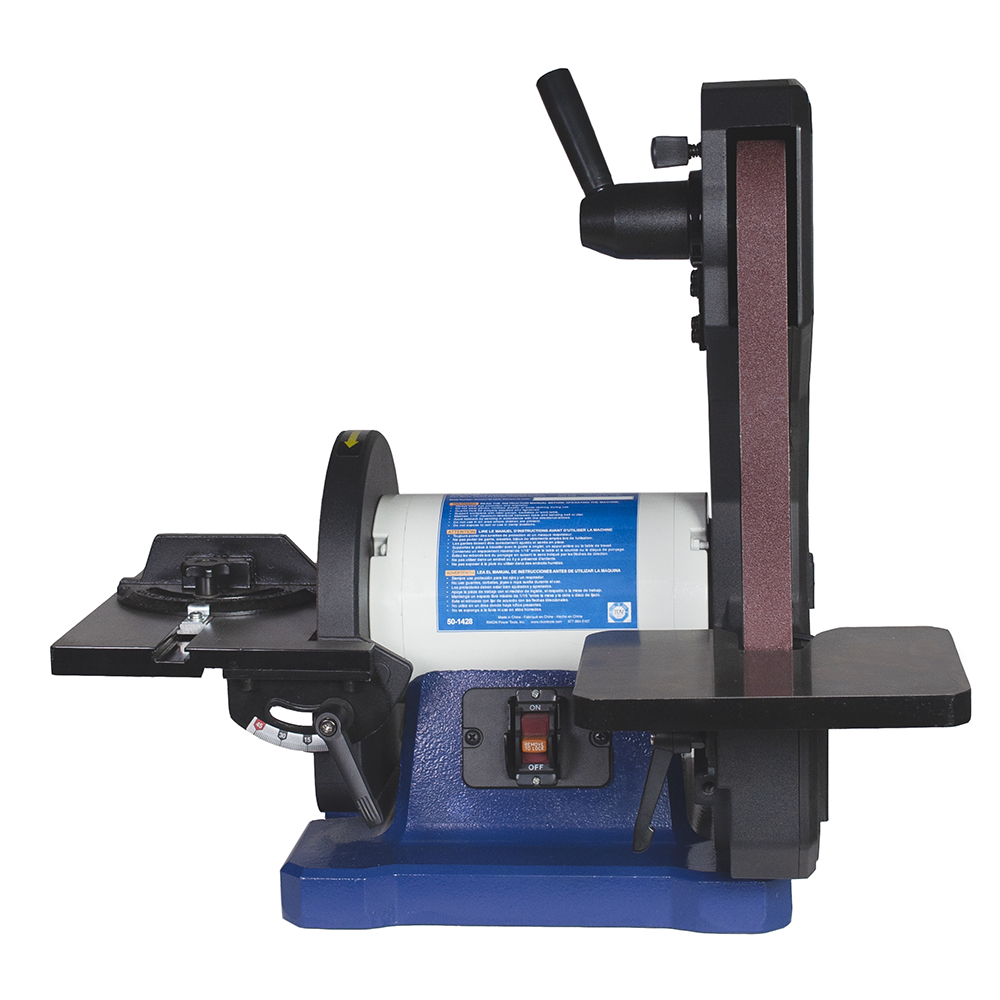

1” x 42” Belt / 8” Disc Sander 50-1428 is a more powerful combination machine for larger surfacing projects. Its scaled-up design with cast iron base frame and larger tables are made for heavy duty work. Large handles make adjusting table angles easy, and the re-designed belt adjustment system makes belt tracking and belt changes never easier!
Features: Powerful 3/4HP, 5 Amp, 120V Induction motor provides plenty of power for sanding and shaping projects. Produces a belt speed of 3,580 SFPM with a disc speed on 3,580 RPM.Frame and base made of sturdy cast iron for extra rigidity. The belt’s drive and tracking wheels are made of cast metal to last a lifetime of use.The belt’s tracking knob and improved belt tension lever system and easy removable side guard panel allows for easy, correct positioning of belts on frames and quick belt removal and replacement.Work tables adjust 0° to 45° with large locking handles for sanding angles PSA 8″ diameter sandpaper applies quickly to their metal backing discs for non-slip use.The sander’s Dust Hoods and ports give efficient dust removal with attached dust collectors. On/Off switch has a removable safety tab for extra security again non-authorized use.Includes miter gauge for use with the sanding disc.
Specifications: Motor Horsepower: 3/4 HPMotor Amps: 5Motor Volts: 120V, 60 HzDisc Table Size: 10-3/8” x 5-7/8”Belt Table Size: 7-7/8” x 5-7/8”Tables Tilt: 0° – 45°Miter Gauge: IncludedMiter Gauge Slot: 7/16” x 1/4”Belt Size: 1” x 42”Belt Speed: 3,265 SFPMDisc Diameter: 8” PSADisc Speed: 3,580 RPMOverall Height: 19-1/2”Overall Width: 20-1/2”Overall Depth: 18-1/2”Overall Base Size: 11-13/16” x 10-5/8”Dust Ports: 1-1/2” OD x 1-9/16” IDOverall Net Weight: 52 lbs.Warranty: 5 Years
What’s Included: Miter Gauge5 Year Warranty
