Product Description

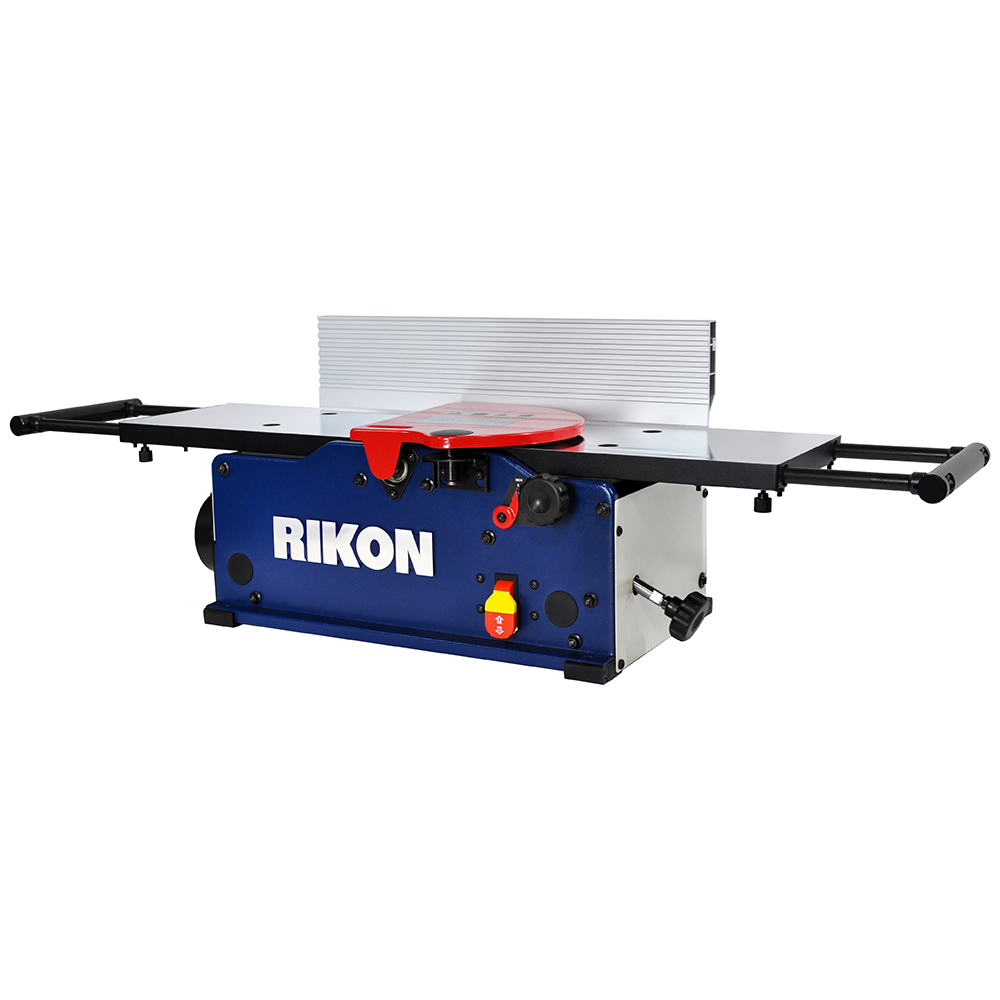

This jointer has a 6 row helical-style cutter head with 24 High Speed Steel, 2-edge insert cutters for super cutting action, flat surfacing results, and easy knife changes. Table extensions expand the work surface from 34″ to 54″ long. Features machined cast iron tables, rigid all-metal construction, a quick depth setting mechanism with scale, adjustable fence that tilts from 90deg to 45deg quickly and accurately, spring-loaded safety guard, 4″ & 2-1/2″ dust ports, front safety on/off switch and two push blocks.
Features: Helical Cutter head with 24 two-sided carbide inserts Large 24″ x 4 3/8″ Fence tilts 90 degrees to 135 degrees Safety on/off switch Easy read depth scale Portable at only 87 lbs. Full table size 34″ x 12-3/16″ extends to 54″ x 12-3/16″
Specifications: Motor Amps: 12 Motor volts: 120V, 60Hz Motor Speed: 19,000 RPM Fence Size: 24″ x 4-3/8″ Fence Tilt: 90 – 135 degrees Cutterhead Diameter: 2″ Cutterhead Speed: 11,000 RPM Number of HSS Inserts (2 sided): 24 HSS Insert Size: 14.2mm x 14.2mm x 2mm Number of Insert Rows: 6 Maximum Depth of Cut: 1/8″ Maximum Cutting Width: 12″ Minimum Length of Stock: 10″ Minimum Width of Stock: 3/4″ Minimum Thickness of Stock: 1/2″ Overall Table Size (LxW): 34″ x 12-3/16″ Overall Table Size with Extensions (LxW): 54″ x 12-3/16″ Dust Port Diameter: 1 @ 4″ & 2-1/2″ Overall Height: 12-1/2″ Overall Width: 23″ Overall Length: 51-1/2″ Overall Base Size: 19″ x 15-1/2″ Net Weight: 87 lbs. Shipping Weight: 90 lbs. Shipping Carton: 39″ x 21″ x 12-1/4″
For current pricing, click “Get Details”
