Product Description

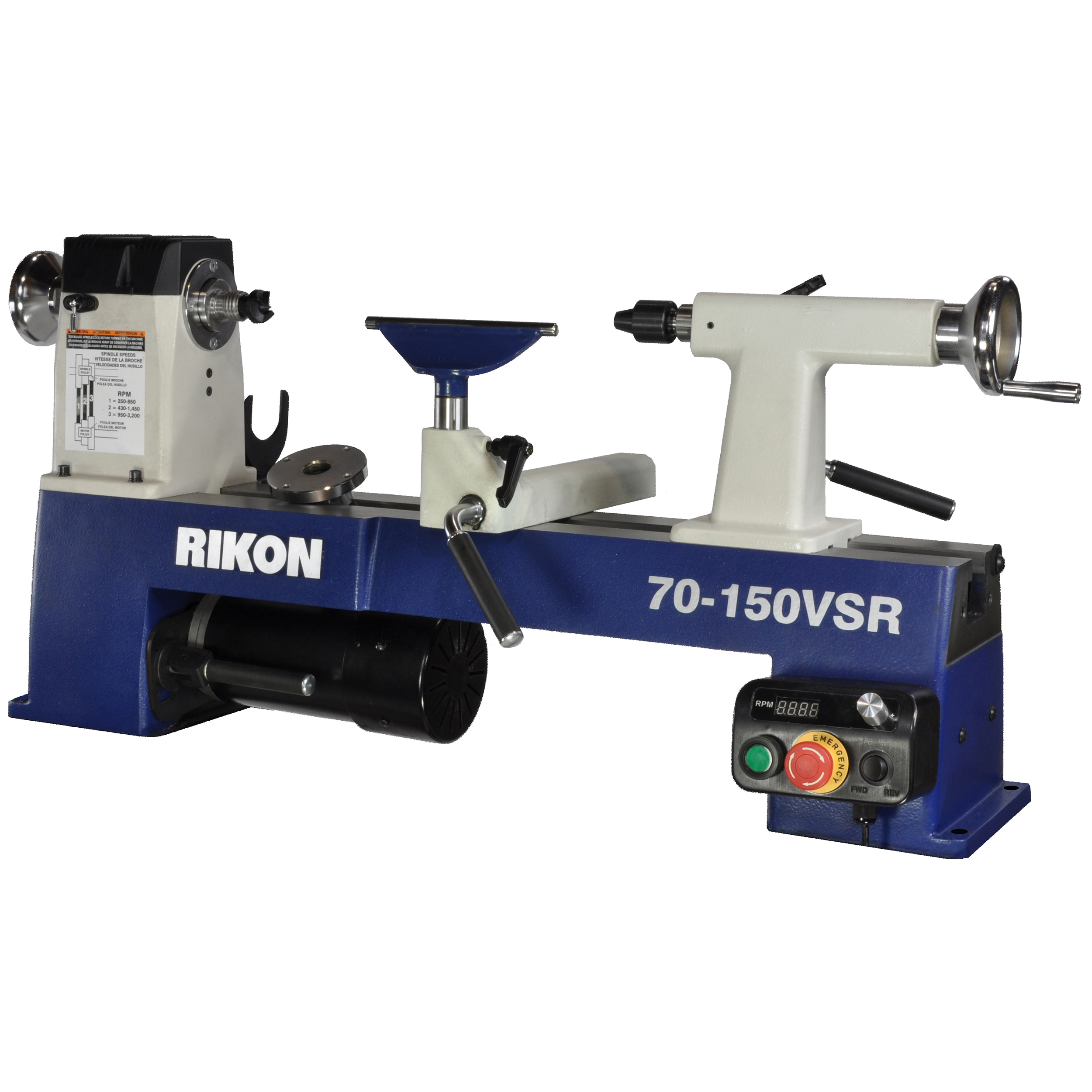

The Rikon 12″ x 16-1/2″ Midi Lathe – 1 HP, Model: 70-150VSR, offers large industrial lathe features on a small scale for novice to professional turners alike. The powerful 1 HP DC motor with electronic variable speed controls offers a wide range of operating speeds for all types of turning. The digital RPM readout lets you easily see what speed the lathe is set. The ample diameter and spindle length turning capacities make turning bowls, spindles and everything in between possible. The forward and reverse drives allow for additional customization of your turning. The corded control box with magnetic back lets you move it along the front of the cast iron lathe bed into the position with the best access while using the lathe or emergency stopping. The left/outboard end of the lathe bed is milled to take a special 13-1/2″ bed extension (#70-903, sold separately) to allow outboard turning of diameters up to 15″. Lathe includes spur center, live center, 3″ faceplate, 6″ tool rest with 1″ diameter post, knock-out bar, wrenches and tool holder.
Features: Powerful 1 HP TEFC DC motor Electronic variable speed controls Digital RPM read-out Ample diameter and spindle length turning capacities Forward and reverse drives Magnetic control box for positioning anywhere along the lathe bed Quick action emergency stop button on the control box Pivoting belt cover for easy access when changing belt speeds Ball-bearing construction for smooth, precise spindle operation
Specifications: Product: Lathe Style: Benchtop (Optional stand available) Motor: 1HP TEFC Totally-Enclosed, Fan-Cooled Voltage: 120V Phase: 1 Ph Amps/Hertz: 6A/60 Hz Motor Speed (No Load): 3200 RPM Direction: Forward/Reverse Number of Speeds: 3 Speed Ranges: 250-850, 430-1450, 950-3200 RPM Swing Over Bed: 12″ Swing Over Tool Rest: 9-1/4″ Working Distance between Centers: 16-1/2″ Tool Rest Post Diameter: 1″ Spindle Nose: 1″ x 8 TPI Headstock/Tailstock Taper: MT2 Ram Travel: 3-1/2″ Indexing Positions: 24 Overall Size (L x W x H): 39″ x 13-3/8″ x 15-5/8″ Overall Base Size (L x W): 31-13/16″ x 7-7/32″ Net Weight: 95 lb.
What’s Included: (1) Rikon12″ x 16″ VSR Midi Lathe – 1 HP 1 Ph 120V (1) Spur center (1) Llive center (1) 3″ faceplate (1) 6″ tool rest with 1″ diameter post (1) Knock-out bar (1) Tool holder
For current pricing, click “Get Details”
