Product Description

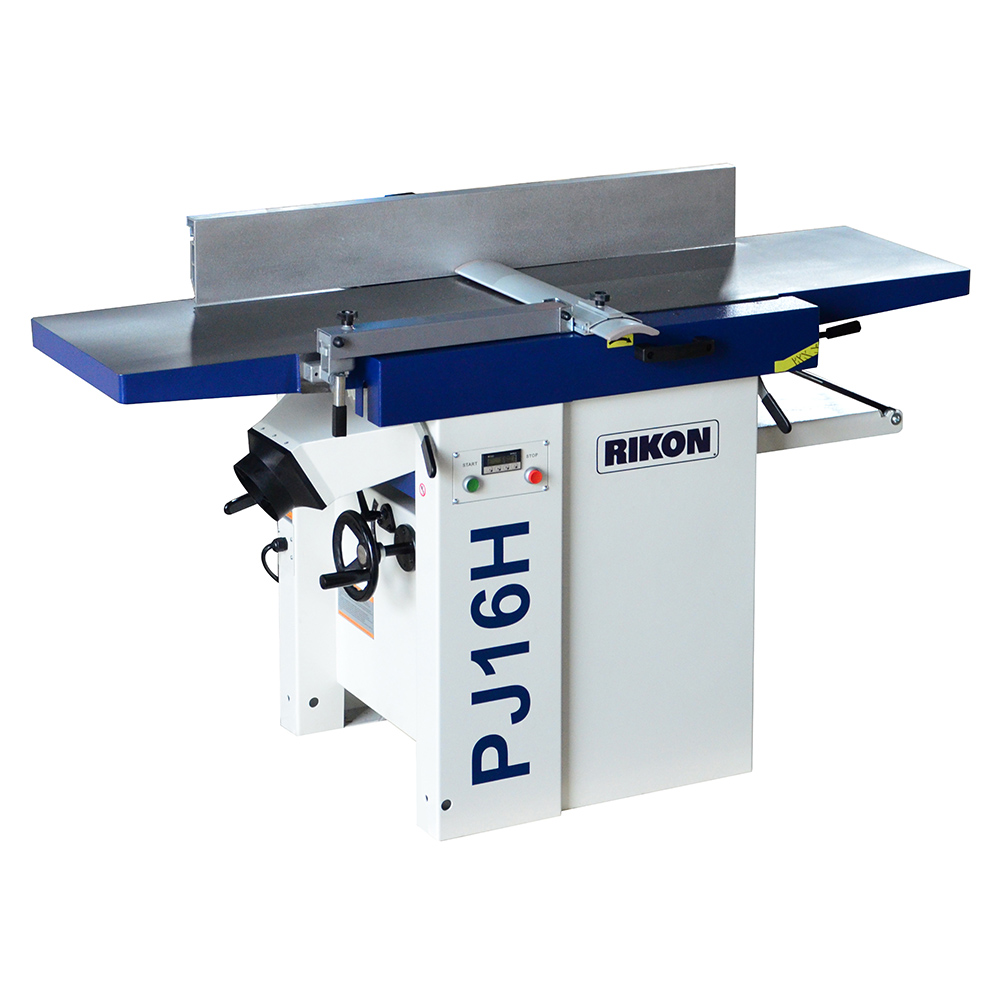

16” Planer / Jointer 25-216H is the machine for those who need BIGGER capacity! Equipped with a large 16” cutter head and powerful 4HP motor that make quick work in milling the hardest, or widest rough-sawn lumber. A favorite of production shops, the jointer and planer tables are made of heavy, cast iron and machined smooth for efficient movement through the cutters. Unique, one-piece jointer tables easily lift up and out of the way for planer use, or to work on the cutter head. The 25-216H has a 2-row, helical cutter head with 44 four-sided, carbide insert cutters.
Features: Helical cutter head with 44 carbide insert cutters. Each indexible insert has four pre-sharpened sides and can be easily changed/rotated if damaged or worn. All metal construction with machined table surfacesJointer tables move for full access to cutter heads for knife insert changesSliding safety bar adjusts over jointer knives for best user protectionHeight / Depth gauges clearly indicate cut settings5” Dust port effectively removes chips when planning or jointingFront located on/off switches for extra safe machine shut downs
Specifications: Motor Horsepower: 4 HPMotor Amps: 16Motor Volts: 230V, 60 HzMotor RPM: 3,400Cutterhead Speed: 5,500 RPMCuts per Minute: 16,500 CPMNumber of Carbide Inserts (4 Sided): 44Carbide Insert Size: 15mm x 15mm x 2.5mmNumber of Insert Rows: 2Cutterhead Diameter: 2-1/2”Fence Size: 43-1/4” x 6”Fence Tilts: 90° to 135°Fence Positive Stops: 90° and 45°Planer Maximum Cutting Width: 16”Planer Maximum Cutting Height: 8″Planer Maximum Cutting Depth: 1/8”Planer Wood Feed Rate: 23 SF/MINPlaner Table Size: 16-1/8” x 23-1/2”Jointer Maximum Cutting Width: 16”Jointer Maximum Cutting Depth: 1/8″Jointer Table Size: 16” x 31-7/8”Jointer Table Height from Floor: 35-1/2”Overall Height: 39-1/2”Overall Width: 38”Overall Depth: 65-1/2”Overall Base Size: 25” x 23”Dust Port: 1@5”Overall Net Weight: 639 lbs.Warranty: 5 years
What’s Included: Outfeed Planer Table5 Year Warranty
For current pricing, click “Get Details”
