Product Description

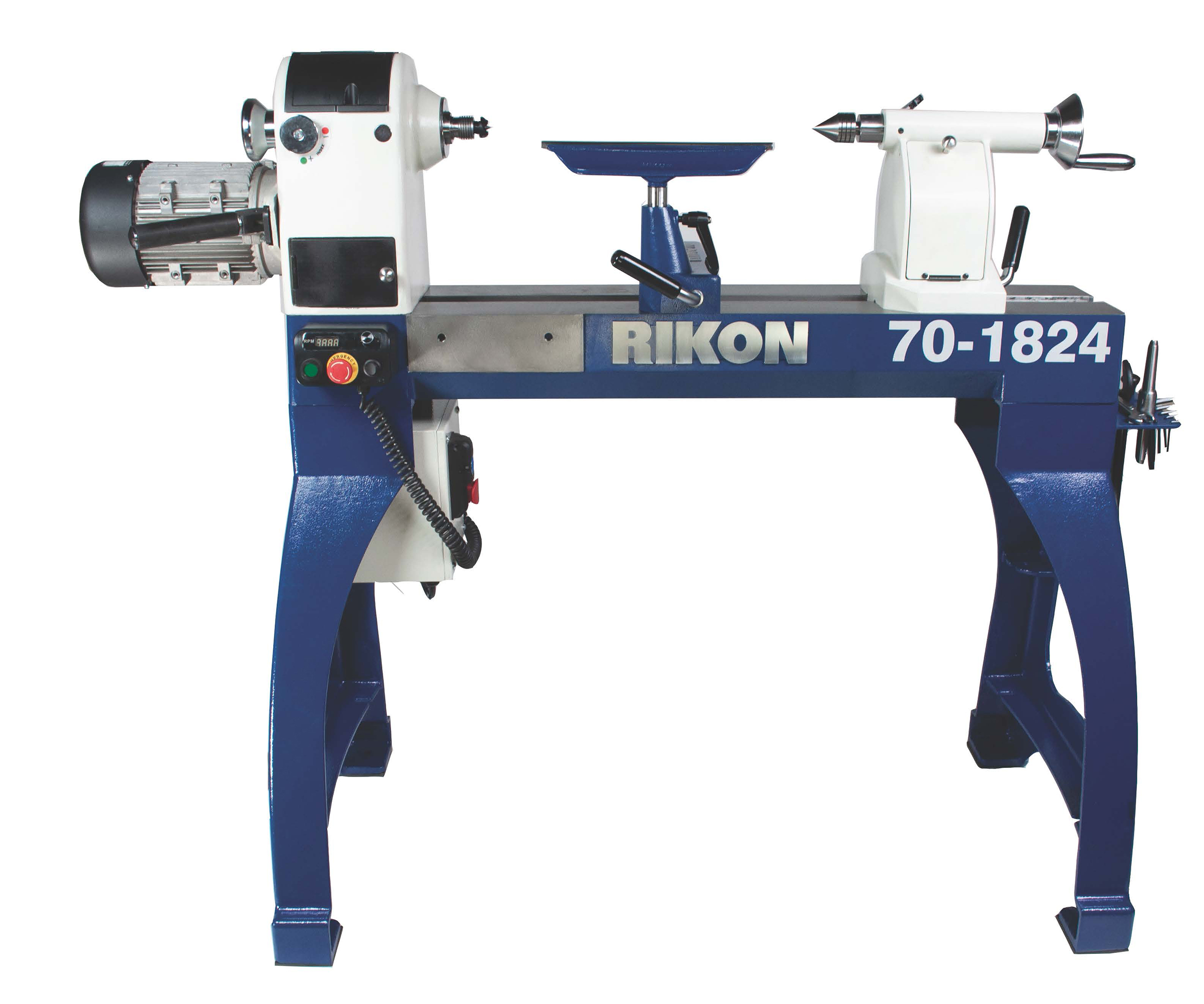

The Rikon Model 70-1824VSR Variable Speed Lathe is a powerful and versatile machine offering a range of benefits for novice and experienced woodworkers. With a 2-1/2 HP, 230V, 14A motor, this lathe can handle various turning projects, from small pens and bowls to larger spindles and platters. The 70-1824VSR uses an inverter to control the motor’s operating efficiency and speed while regulating torque to give the craftsman the consistency needed when turning projects. The speed ranges offer spindle speed settings from 50 to 3850 RPM, allowing users to select the optimal speed to ensure clean and efficient cuts. This lathe also features an indexing head with 24 positions, which allows for precise and accurate positioning of the workpiece during machining operations. In addition to its performance capabilities, the Rikon Model 70-1824VSR2 offers several convenience features, including a swivel headstock, spindle lock, three bed extension positions, digital readout display, moveable magnetic control box, 115V outlet for plugging in lights or other accessories, and increased tool storage.
Features: Powerful 2-1/2 HP DC motor Machined bed and matching components give precise alignment Ball-bearing construction for smooth, precise spindle operation Lathe bed has machined ends and front for adding extensions to increase turning capabilities Increased spindle height for creating greater diameter spindles, bowls and platters Magnets on back of the control box allow it to be placed anywhere easily accessible to turners for quick controlling of the lathe speeds or emergency stopping Adjustable locking handles keep components positioned securely Pivoting belt cover for easy access when changing belt speeds PRO tool rest features hardened steel top rod to provide extra control of tools when turning
Specifications: Product: Lathe Style: Floor Model Motor Horsepower: 2-1/2 HP TEFC (Totally-enclosed, fan-cooled) Motor Amps / Hertz: 14A 50/60 Hz Motor Volts: 230V Motor Phase: 3 Ph with inverter Motor RPM: 1,720 RPM Direction: Forward (C-Clockwise) & Reverse (Clockwise) Number of Speeds: 3 Speed Ranges: 50-900/ 100-1,850 / 200-3,850 RPM Swing Over Bed: 18″ Swing Over Tool Rest: 13-3/4″ Working Distance Between Centers: 24″ Tool Rest Post Diameter 1″ Spindle Nose: 1 1/4″ x 8 TPI Headstock Taper: MT2 Tailstock Taper: MT2 Ram Travel: 4-1/2″ Overall Length: 63″ Overall Width: 24-3/8″ Overall Height: 47-3/8″ Overall Net Weight: 373 lbs. Bottom of Base to Spindle: 43-5/16″
What’s Included: (1) Rikon 70-1824VSR – 18″ X 24″ VSR Lathe – 2-1/2 HP 230V
For current pricing, click “Get Details”
