Product Description

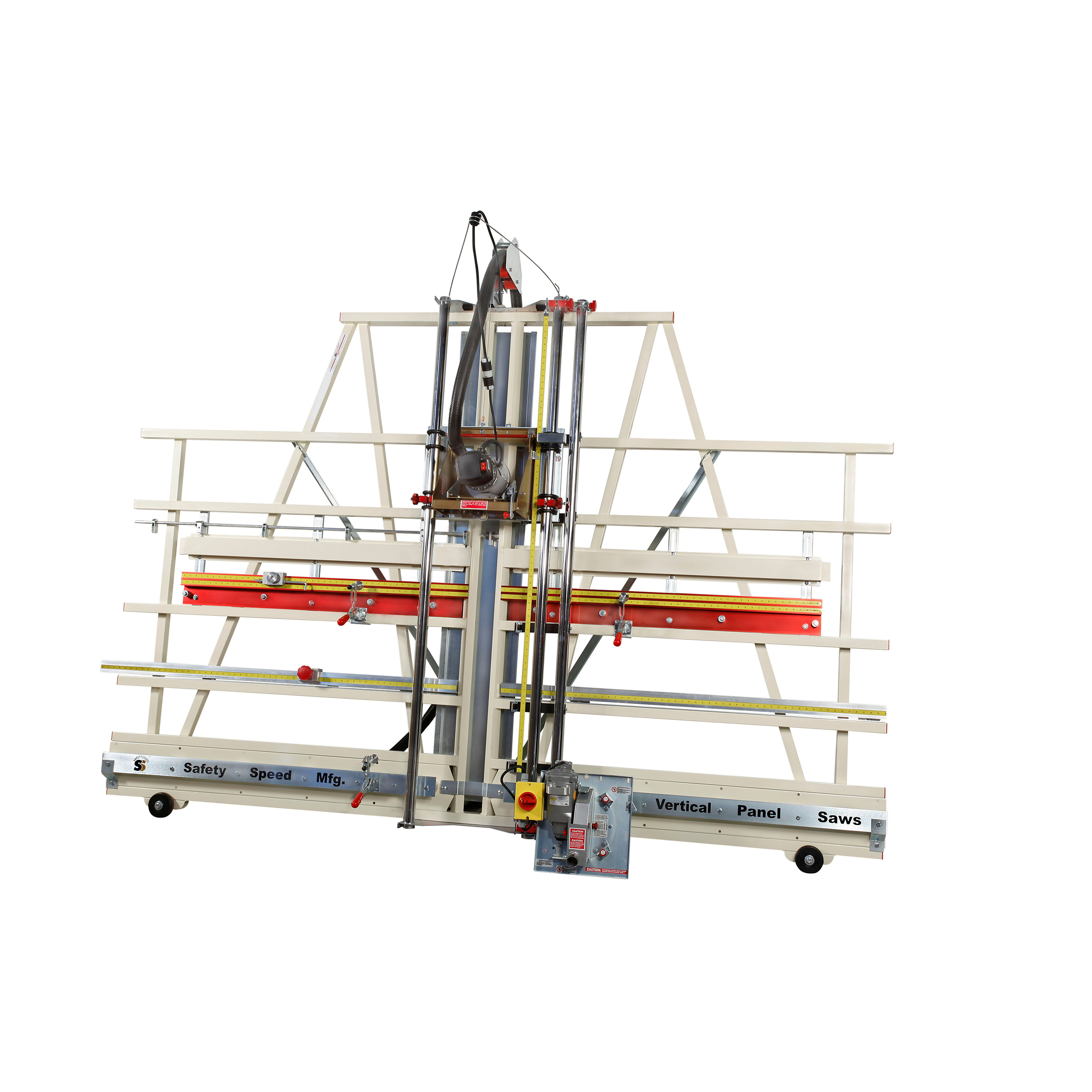

SHOWN WITH OPTIONAL WHEELS AND STAND.The SR5U is able to saw and route on one vertical steel welded frame, which is ideal for shops with limited space where both panel sizing and panel routing are performed. This model can be changed from saw to router in less than one minute and has accuracy of 1/64″ straight and square. The Worm Gear Driven Saw and 3-1/4HP Router Motor make this a heavy duty machine that’s ideal for cabinet shops, composite panel fabrication and other applications where panel sizing and routing are required.It comes equipped with a Mid-way fence system which makes the processing of small panels more efficient. Our patented self-adjusting router carriage provides for a consistent depth of cut when routing.Specifications10 ft. Welded Steel FramePorter Cable 7519 RouterUses 1/2″ diameter router bits, not includedChrome-Plated 1-3/4″ Guide Tubes8 Nylatron Roller Bearing SystemAdjustable Vertical and Horizontal RulersQuick Change from Vertical to Horizontal CuttingThin Material Pressure GuardFour Material ClampsIntegrated Dust Collection BonnetsSolid Aluminum Material RollersEnclosed Counterweight SystemAdjustable Floating Router HeadMid-Way Fence with Stop2 Blind Dado Stops1 Year Parts WarrantyLifetime Frame WarrantySaw Motor: 3 HP Worm Drive, 120V, 13AmpRouter Motor: 3-1/4 HP Heavy Duty, 120V, 15AmpMax Crosscut: 62″ (1575mm)Max Rip Cut: UnlimitedMax. Cut Thickness: 1-3/4″ (44mm)Cut Accuracy, Straight and Square: 1-6/4″ (0.4mm)Saw Blade Diameter: 8″Frame Length: 120″Shipping Weight: 550 lb.Note: A lift gate is not available for this item. Delivery requires a forklift or dock delivery.
For current pricing, click “Get Details”
