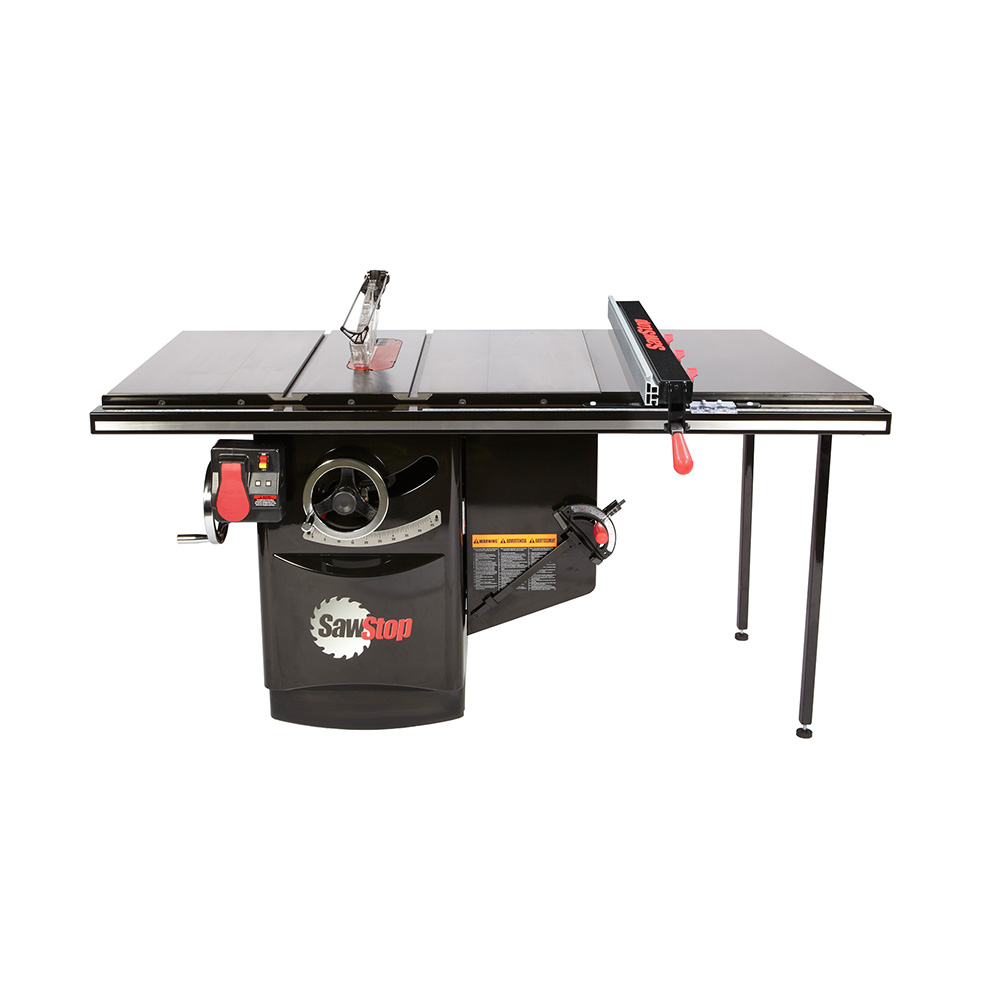

The Sawstop Industrial Cabinet Saw with 36″ Industrial T-Glide Advance Fence System – 5 HP – 3PH – 230V is a essential addition to any workshop looking for Power Tools solutions.
Over $3,000 – Premium shop systems, lathes & CNC setups
Product Description
The SawStop Industrial Cabinet Saw is the definition of industrial grade. It is the heaviest, most powerful and highest quality 10″ cabinet saw available. The 5HP, 3ph, 230v configuration with a 36″ Industrial T-Glide Advance Fence Assembly offers the durability, versatility, and the peace of mind only SawStop’s patented safety system can provide.
Features: SawStop’s patented safety system Riving knife reduces the risk of kickback Tool-free quick-change blade guard mount Diagnostic system ensures the saw is ready to respond Dust-Collection Blade Guard 36″ Industrial T-Glide Advance Fence System
Specifications: Overall saw dimensions: 69-1/4″ wide x 36-1/2″ deep x 34″ high Cabinet footprint: 20″ x 25″ Cast-iron table: 24″ w x 30″ d Cast-iron table size with extension wings: 44″ w x 30″ d Motor: 5 HP, 3-Phase, 230V 60 HZ Weight: 635 lbs. Blade: 60-tooth, professional grade, 5/8″ arbor Blade diameter: 10″ Blade tilt: left Blade kerf: 0.118″ (3 mm) Blade plate thickness: 0.078″ Max. depth of cut, blade at 0º: 3-1/8″ Max. depth of cut, blade at 45º: 2-1/4″ Max. rip, left of blade: 12-1/2″ Dado diameter: 8″ (requires a separate brake cartridge and table insert) Dado max. width: 13/16″ Arbor diameter at blade: 5/8″ Table in front of blade (max. elevation): 11″ Table behind blade (max. elevation): 9-3/4″ Table flatness measured diagonally: 0.010″ maximum gap Miter slots: T-shaped, 3/4″ at top, 1″ at bottom, 3/8″ deep Dust-collection port diameter: 4″ Riving knife/splitter thickness: 0.090″ (2.3 mm) Insert: zero clearance, phenolic core, melamine surfaces Belts: 2 V-ribbed belts
What’s Included: (1) SawStop Industrial Cabinet Saw with 36″ Industrial T-Glide Advance Fence System – 5 HP – 3PH – 230V
Product Dimensions:
Length: X Width: X Height: Weight: 718.0000 LB
Note: We do not display prices to ensure you always see the most current Woodcraft pricing upon click.
