The SuperMax 13″ Combination Brush/Drum Sander is a essential addition to any workshop looking for Power Tools solutions.
Over $3,000 – Premium shop systems, lathes & CNC setups
Product Description

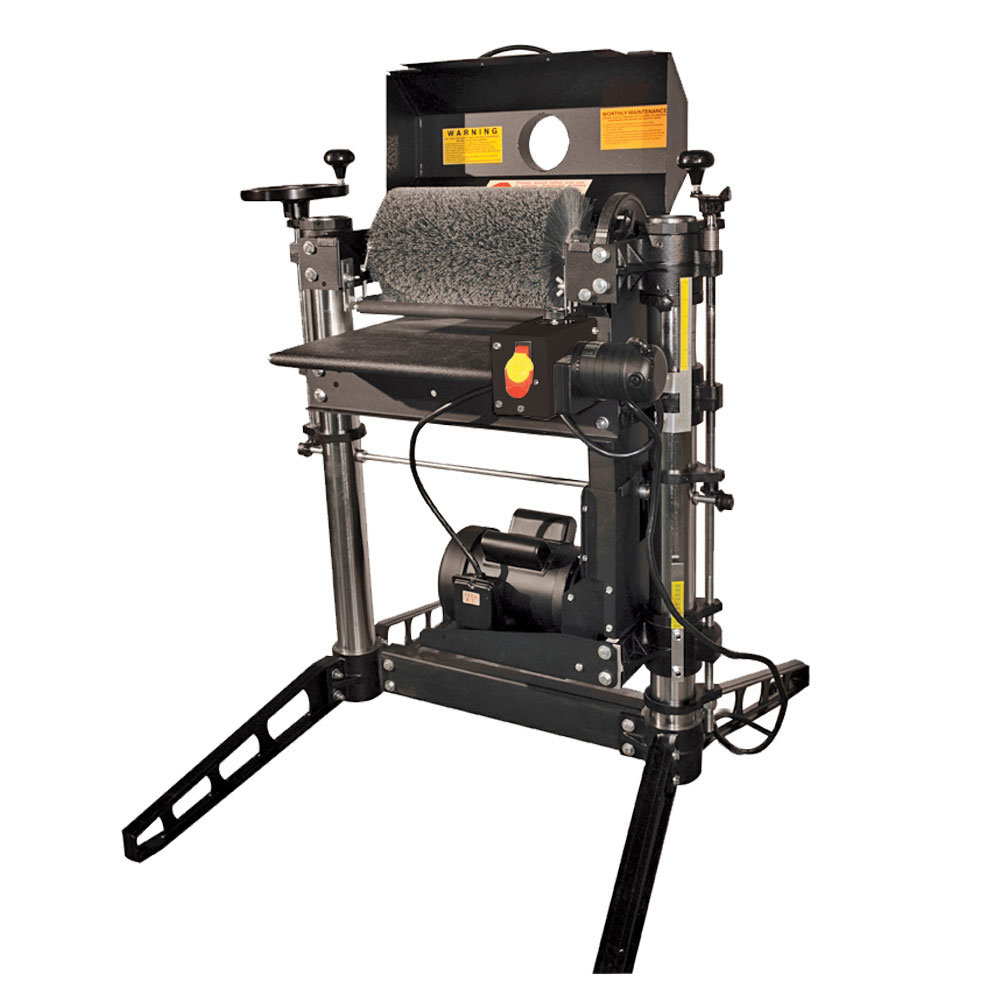

The 13″ Combination Brush/Drum is the answer to your production bottleneck. Developed with moldings in mind, this versatile sander can tackle every step in your finishing process, from sanding raw wood to sanding in between coats of stain or primer. Read about other applications below. This model features a 1-3/4 HP motor, and can handle stock up to 4″ thick, or as thin as 1/32″. It can also be equipped with an optional sanding drum for surface sanding.
Features: Infinitely variable brush speed and conveyor feed rate Optional Drum for surface sanding Quickly change brush heads or abrasive loadings Fully adjustable tension rollers prevent stock slippage Reinforced steel conveyor bed with a poly conveyor belt Precision height adjustment Bristle Contact Gauge included
Specifications: Maximum Width: 13″ Minimum Length: 9″ Maximum Thickness: 4″, varies with drum/brush style Minimum Thickness: 1/32″ Dimensions (W x L x H): 42″ x 35″ x 44″ Drum: 5″ x 13″ Extruded Aluminum Brush: 6-8″ Typical Diameter Speed: Ranged Variable RPM, 400-1200 Dust Hood: 1-4″ Port, Hinged At Back, 600 CFM Min. Recommended Conveyor Motor: 43 in.-lb. Torque, Ranged Variable, 0-10 FPM Drive Motor (TEFC): 1-¾ HP Power Requirements: 110 Volt, 20 Amp Service Shipping Weight: 300 lbs. (Approx, Varies Based On How Equipped) Shipping Dimensions (L x W x H): 34-1/2″ x 45-1/2″ x 46-1/2″ NEMA Plug: 5-15P
What’s Included: 13″ Combination Brush/Drum Sander
Product Dimensions:
Length: 50.00 IN X Width: 45.00 IN X Height: 45.00 IN Weight: 270.0000 LB
Note: We do not display prices to ensure you always see the most current Woodcraft pricing upon click.
