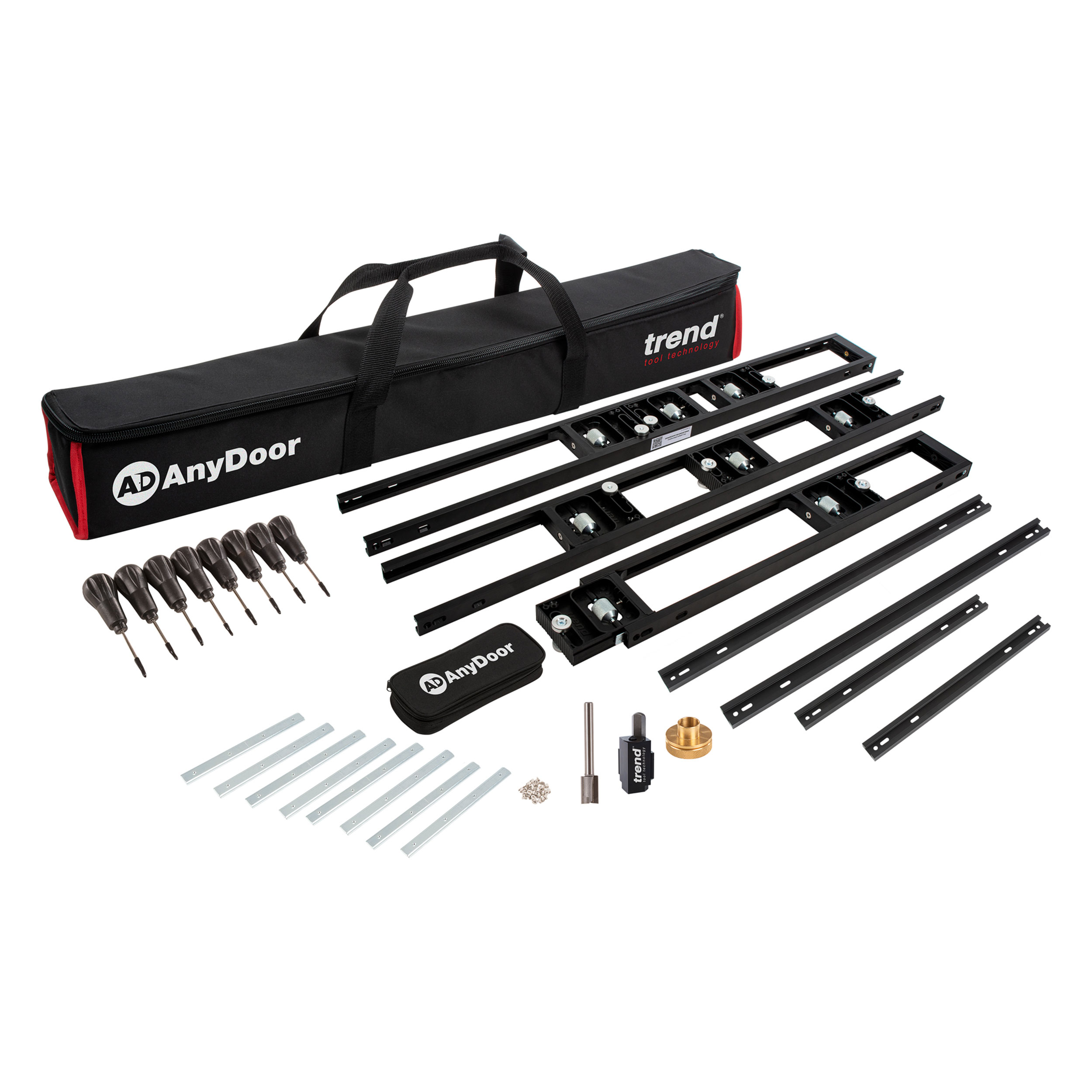

The Trend AnyDoor Butt Hinge Jig Template Kit, Model U*H/JIG/D9 is a essential addition to any workshop looking for Routing & Accessories solutions.
Over $500 – Major power tools & stationary shop gear
Product Description
Make accurate hinge insets with the Anydoor Butt Hinge Jig Templatemodel U*H/JIG/D9. Fully adjustable, modular router jig is designed to quickly and accurately recess square and radius (5/8″ & 1/4″) hinges in timber doors & frames. Accommodates all hinge sizes, hinge positions and door heights. Specification Modular Rail Construction* allows the jig to be adjusted from 2’6″ to 9′ out of the box, including all standard door sizes (6’6″, 6’8″, 7’0″, 8’0″, 9’0″) Twin-Rail System* provides unlimited hinge positions within the rail, making the jig perfect for both new and replacement installations Radius Hinge Compatibility allows fast and accurate installation of square, 1/4″ radius or ⅝” radius hinge profiles Attachment Options allow the jig to be secured with either bradawls for speed (included) or no.6 woodscrews for maximum stability Tough Carry Bag stores pre-built jig sections to minimize assembly time Lightweight Anodized Aluminum Rails for optimum strength, durability, accuracy and a smooth router-running surface Adjustable Edge Guides accommodate 1″ to 21/2″ hinges with either four present positions or custom widths (for non-standard hinges) 1/8″ (3.0mm) Steel End Plate allows the jig to fit both door and frame with minimal adjustment. 1″ (25mm) Rail Depth allows jig to be used against fixed door stops. Includes 1/2″ (12.7mm) Router Bit 8 Bradawls 16.7mm Template Guide 90deg Corner Chisel
Product Dimensions:
Length: 37.00 IN X Width: 6.00 IN X Height: 6.00 IN Weight: 16.0000 LB
