Product Description

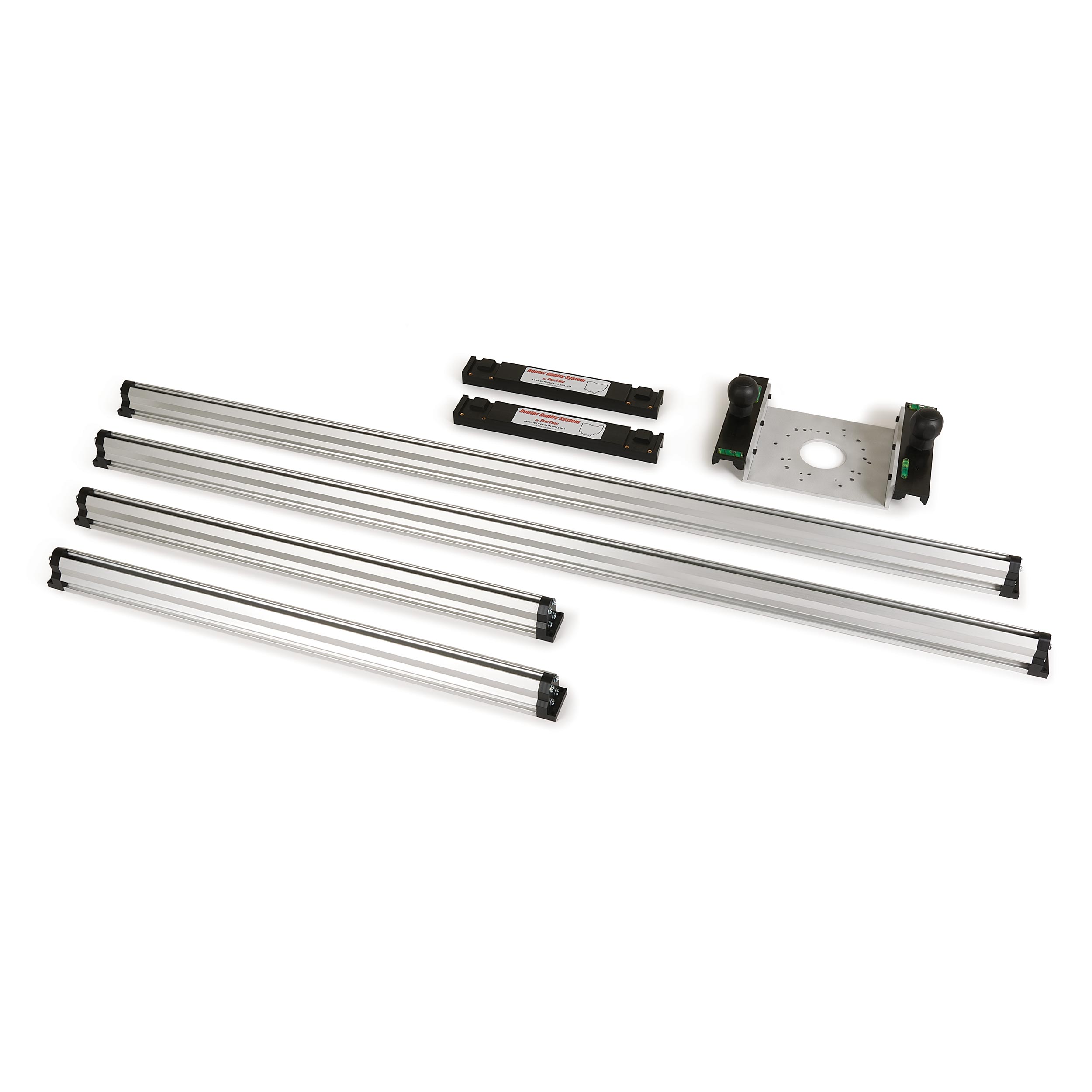

The TrueTrac 22″ x 48″ Manual Slab Flattening Router Mill is designed specifically to be able to handle large area planing operations. Easily flatten large slabs, table top glue-ups, epoxy resin counter or table tops, or other large projects that don’t easily fit into standard floor model equipment for a much lower cost. The Manual Feed allows the user to directly push the router back and forth across and down the length of the slab, providing hand-controlled movement. For use with a standard 2-1/2 to 3-1/2 HP router and a 1″ to 3″ diameter router bit, not included. Features Manual Feed: Router controlled by you physically moving it by hand Pre-drilled for over 20 routers Fully CNC machined Delrin linear slides 1/4″ Thick 6061 Aluminum Router Base Plate Quick-reference bubble levels Expandable with 27-1/2″ or 55″ Rail Extension Kits, sold separately Specifications Capacity: 22″ W x 48″ L 2-1/4″ Thickness capacity without raising bottom rails Less than 0.005″ of deflection Outer Dimensions: 27-1/2″ W x 57″ L Accepts up to a 3″ Diameter router bit Includes detailed support structure drawing (support structure materials not included) All major components manufactured in Ohio, USA
