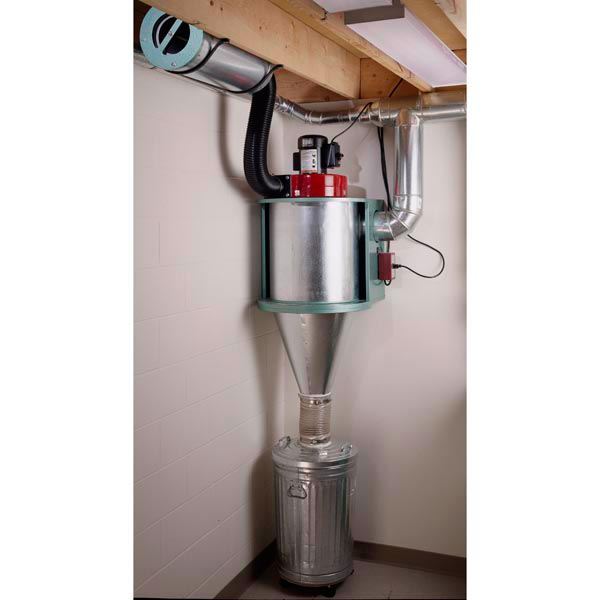

The Wood Magazine Woodworking Project Paper Plan to Build Cyclone Dust Collector is a essential addition to any workshop looking for Library solutions.
Under $50 – Perfect for stocking stuffers, hand tools, small accessories
Product Description
Need a Cyclone Dust Collector that's a space-efficient unit with minimal noise, dust-free construction, and convenience of use. Then get building with this plan.Designed to for use with a 760 CFM, 1 1/2in. horsepower, 62-82 decibel blower – ideal for a small shop Project requires the following materials:1 piece 4×8 birch plywood2 pieces of 20×57-1/2in. 30-gauge sheet metal for the cylinder and 3 cone segments 1 piece of 15-1/2x19in.30-gauge sheet metal for the inlet 1 cartridge-type air-filter (rated 99.9% efficient) to minimize dust emissionOptional remote switch.In the plan, we've included general information, but NOT the drawings or dimensions for using different blower sizes (1-3 H.P.), allowing you a CFM range from 350 to 1200. This plan was built and proven in the WOOD magazine shop by its editors and master craftsmen.MATERIALS NOT INCLUDED; PAPER PLAN ONLY.
Product Dimensions:
Length: 1.00 IN X Width: 9.00 IN X Height: 12.00 IN Weight: 1.0000 LB
